I NE

REMOVAL

Remove

both

side

covers

(screwdriver).

Disconnect

the

suppressor

cap.

Free

the

decompressor

cable

nipple

using

a screwdriver

(fig.

1)

and

disconnect

the

cable.

Loosen

the

nut

securing

the

carburetor

clamp

(Bmm

socket)

and

remove

the

carburetor.

Disconnect

the

wires

at

the

terminals

behind

the flywheel

magneto

stator

plate

and

slide

them

out

of

the

guide

sprino.

Disconnect

the

grey

wire

at

the ignition

coil

and slide

it

out of

the

support

bracket

in

the frame.

'

Remove

the

belt

from

the

pu'l

ley

groove

and

pass

it

in

front

of the

pedal (fig.

2).

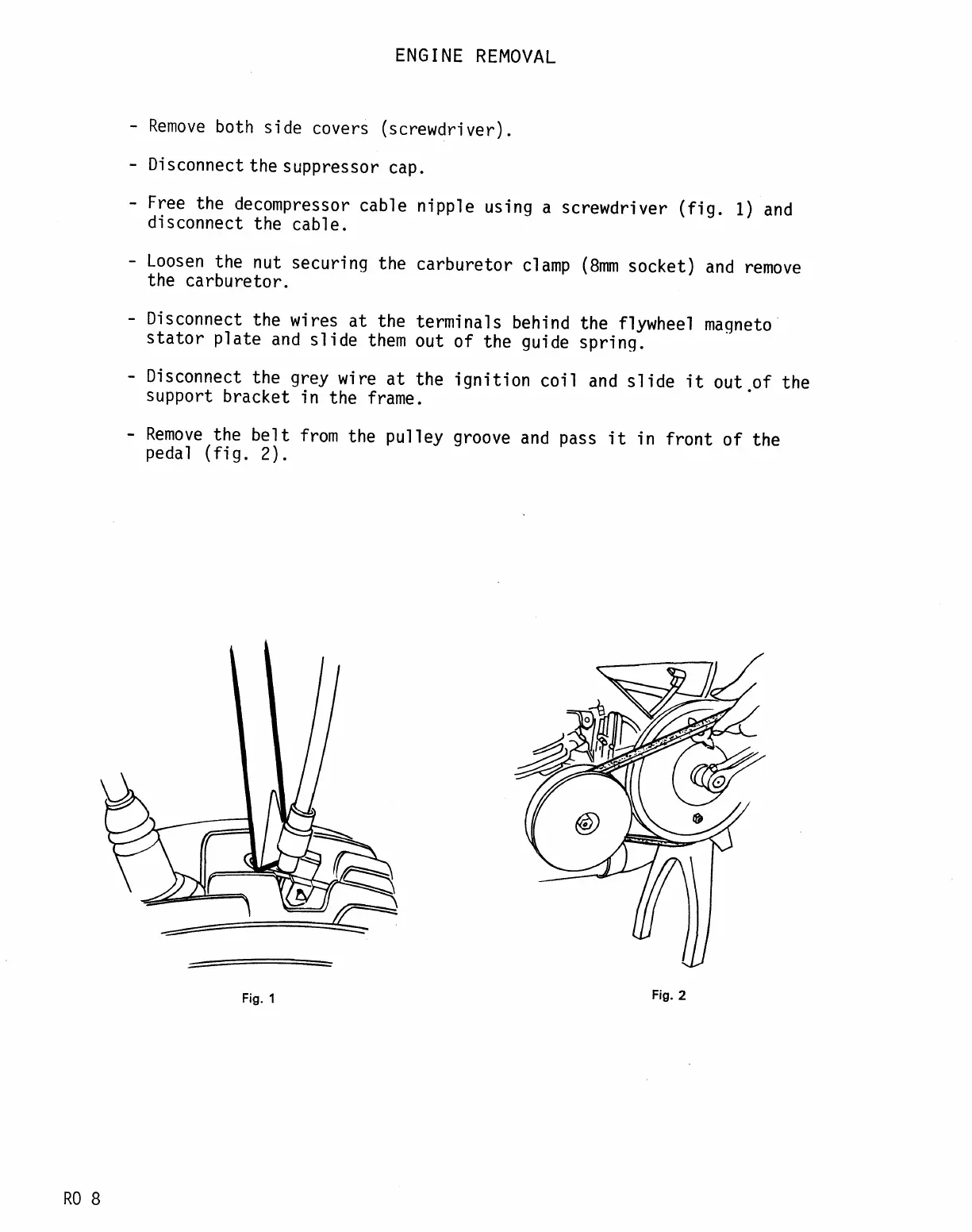

Fis.

I

ROB

Fig.2
