Motobecane 40 - Front Fork Assembly Service

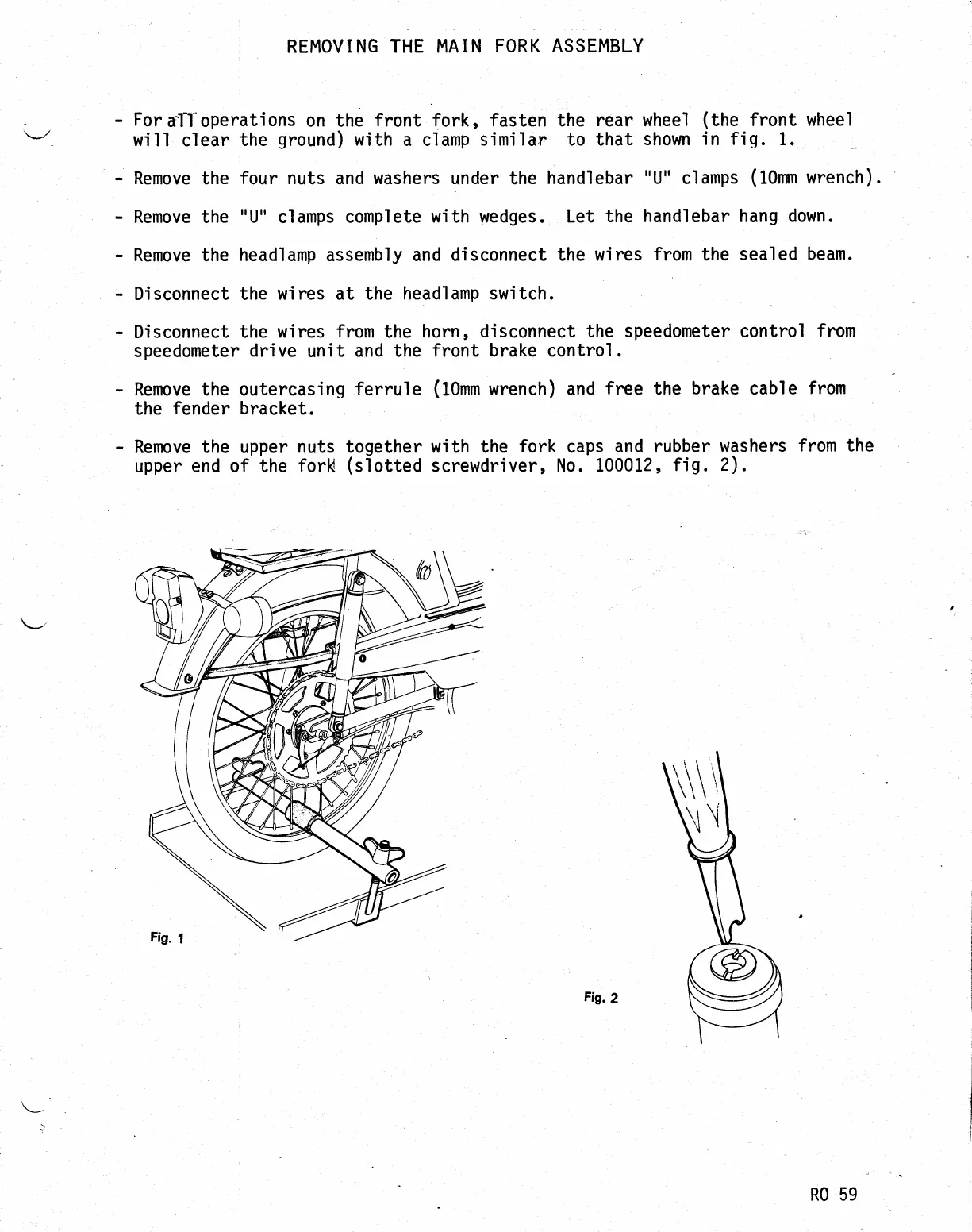

REMOVING THE MAIN
FORK
ASSEMBLY
ForrT]'operations
on the
front
fork, fasten the
rear
wheel
(the
front
whee'l
will clear
the
ground)
with
a clamp
simi'lar to that
shown
in
fig. L.
Remove
the
four
nuts
and
washers
under the
handlebar
rru'clamps
(10nrn
wrench).
Remove
the
rrUrr
clamps
complete
with wedges. Let the
handlebar hang down.
Remove
the
headl amp assemb'ly and di
sconnect the wi
res
from the sea'led
beam.
Disconnect the
wires at the
headlamp switch.
Disconnect
the
wires
from
the
horn,
disconnect the
speedometer
control
from
speedometer
drive
unit
and the
front brake control.
Remove the outercasing
ferrule
(10mm
wrench) and
free the
brake
cable
from
the
fender bracket.
Remove the upper
nuts together
upper
end of the
forl{
(slotted
with the
fork
caps
and
rubber
washers
from the
screwdriver, No.
100012,
fig. 2).
.),
R0 59
Fis.2
