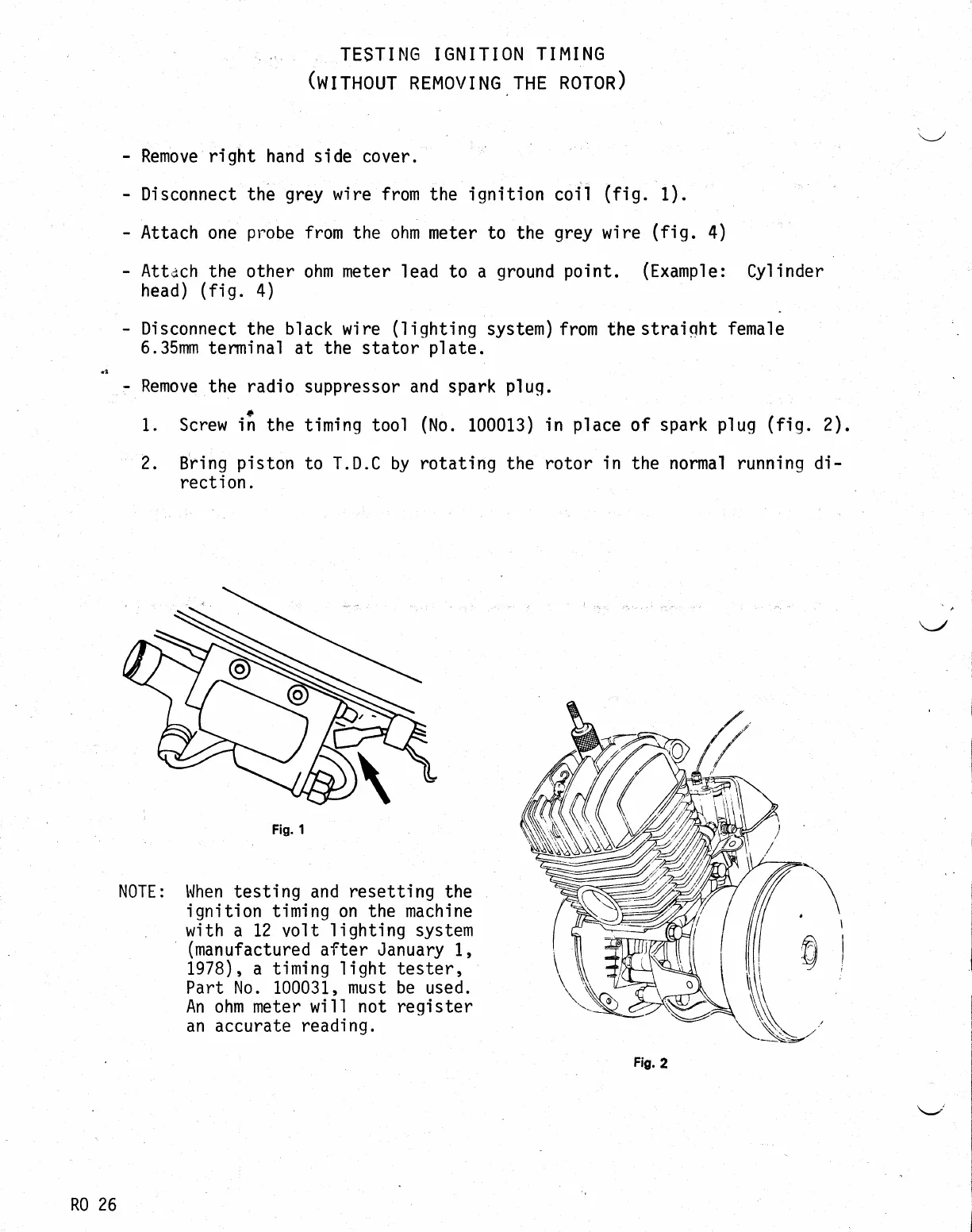

Motobecane 40 - Testing Ignition Timing

TESTIIIG IGNITION
TIMING
(w
r rHour REMov r NG
THE noron
)
Remove right
hand side
cover.
Disconnect the
grey
wire
from
the ignition coil
(fig.
1).
Attach one
probe
from
the ohm meter to
the
grey
wire
(fig.
4)
Attach
the other
ohm
meter
lead to a
ground point.
(Example:
Cylinder
head)
(fig.4)
Di sconnect
the
bl
ack
wi
re
(l
i
qhti
ng
system) f
rom the
strai
grht
femal
e
6.
35mm
termi
nal
at the
stator
p1ate.
Remove
the
radio
suppressor and spark
plug.
1.
Screw if,
the
timing
tool
(No.
100013)
in
place
of
spark
plug
(fig.
2).
2.
Bring
piston
to T.D.C by rotating the
rotor in
the
nonnal running di-
recti
on .
Fig.
1
NOTE: l^lhen testing and
resetting
the
ignition timing on the machine
w.ith
a 12
volt
lighting system
(manufactured
after January
L,
1978), a timing liSht
tester,
Part No. 100031,
must be
used.
An ohm meter will
not register
an accurate
reading.
R0 26
Fig.2
