Motobecane 40 - Carburetor Removal and Installation

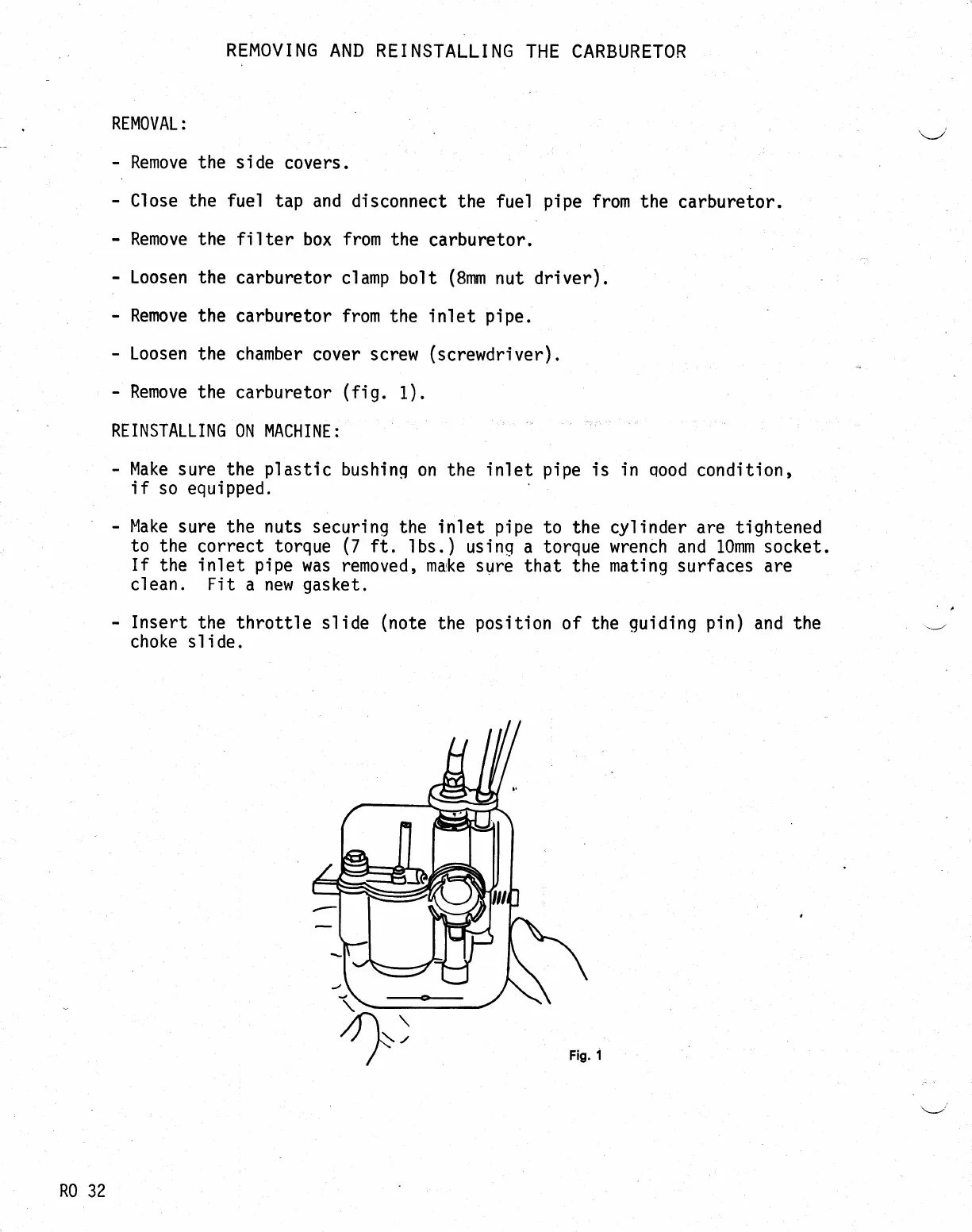

REMOVING
AND REINSTALLING
THE CARBURETOR
REMOVAL:
-
Remove
the side
covers.
CIose the fuel
tap and disconnect
the
fuel
pipe
from
the
carburetor.
-
Remove
the fi I
ter
box
from
the
carburetor.
Loosen the
carburetor
clamp
bolt
(Bmm
nut driver).
Remove
the
carburetor from
the i n'let
pi pe.
Loosen
the
chamber
cover
screw
(screwdriver).
-
Remove
the carburetor
(fig.
L).
REINSTALLING
ON
MACHINE:
Make
sure
the
p'lastic
bushing
on the
inlet
pipe
is
in
sood
condition,
if
so equipped
Make
sure
the nuts securing
the inlet
pipe
to the cylinder are tightened
to
the
correct torque
(7
ft.
lbs.)
usino a torque
wrench
and 10mm
socket.
If
the
inlet
pipe
was removed, marke
sure
that the
mating surfaces
are
clean.
Fit
a
new
gasket.
Insert
the throttle
slide
(note
the
position
of the
guiding pin)
and the
choke sl
ide.
R0
32
