Motobecane 40 - Removing the Variator

90 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

REftlOV

I NG

THE

VAR I ATOR

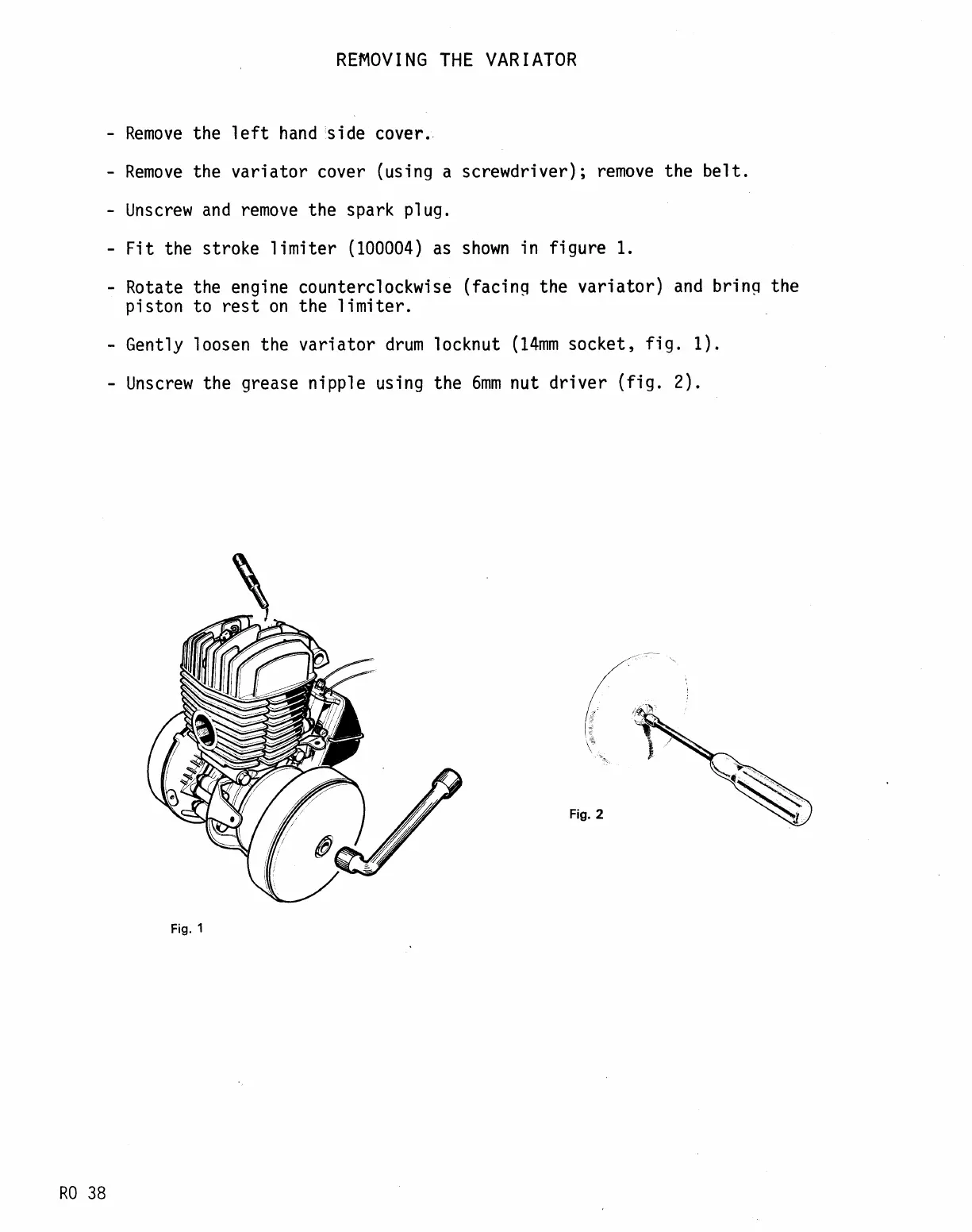

Remove

the

left hand

lside

cover.

Remove the variator

cover

(using

a screwdriver);

remove the

belt.

Unscrew

and remove the spark

plug.

Fit

the

stroke limiter

(100004)

as

shown

in figure L.

Rotate the engine

counterclockwise

(facing

the

variator)

and

bring

the

p'iston

to rest on the

limiter.

Gently loosen

the

variator drum locknut

(t+mm

socket,

fig.

L).

Unscrew the

grease

nipple

using

the

6mm nut driver

(fig

.

2).

Fig.2

Fis.

1
