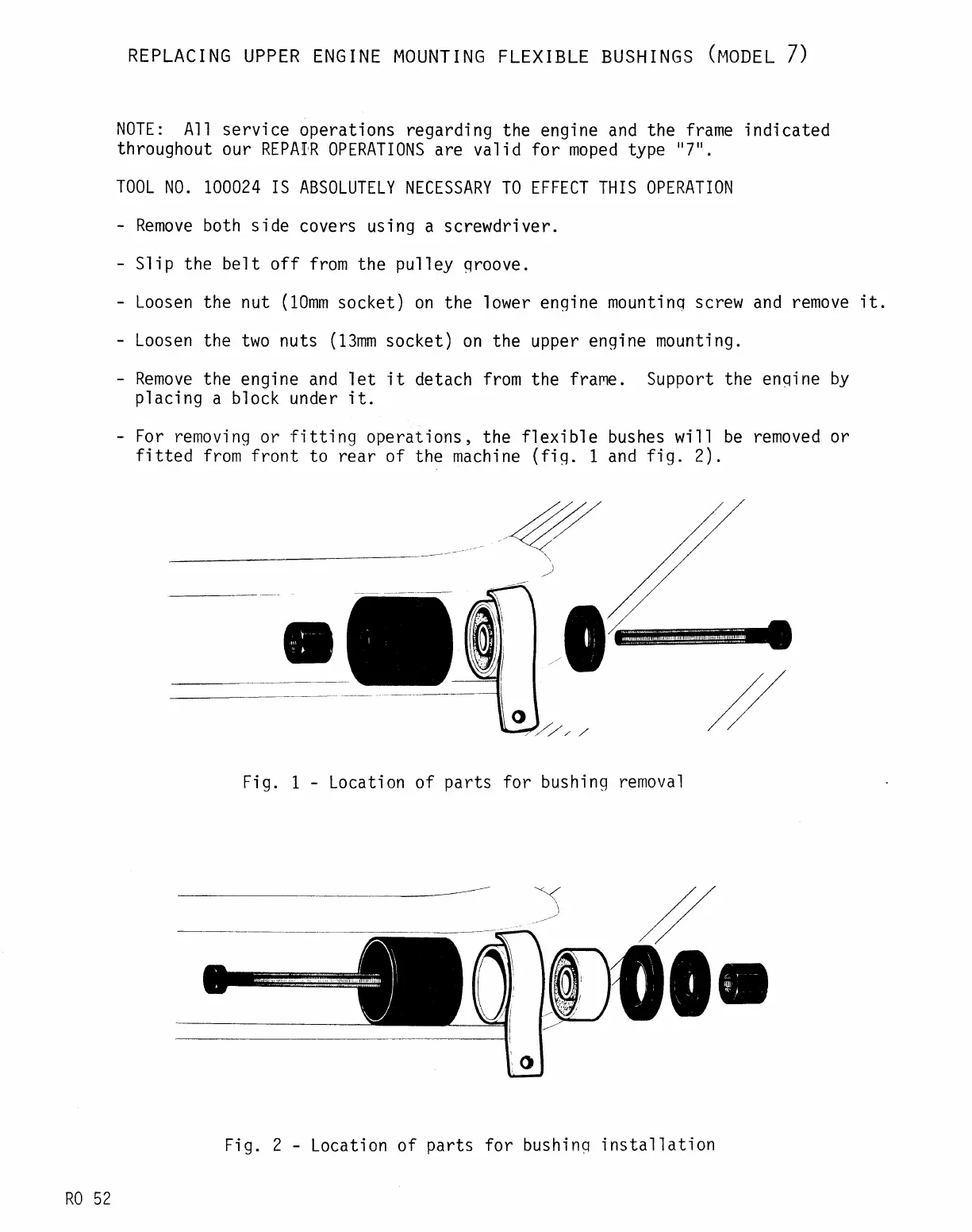

REPLACING
UPPER
ENGINE MOUNTING
FLEXIBLE
BUSHINGS
(mooTI
7)
N0TE:
All service
operations regard'ing
the eng'ine and
the frame indicated
throughout
our
REPAIR
OPERATIONS
are valid
for
moped type
"7".
TOOL
NO. 1OOO24
IS
ABSOLUTTLY
NICESSARY TO EFFECT THIS OPERATION
Remove
both s i de
cove rs
us"i
ng
a
s
crewdr
j
ve
r .
Slip
the belt
off
from
the
pu11ey
qroove.
Loosen
the
nut
(t0mm
socket) on the lower engine
mountinq screw and
remove-it.
Loosen
the two nuts
(tgmm
socket)
on
the
upper
engine
mountjng.
Remove
the
engine and let it detach
from
the
frame. Support the enqine
by
placing
a
block
under
jt.
For
removinq
or
fitting
operations, the
flexible bushes will be removed or
fitted
from front
to rear of
the
machine
(fiq.
1 and
fig. 2).
\<,
)
//
//
/
0@
0
7,2,
z
F'ig.
1
-
Locati on of
parts
for bush'inq
removal
R0
52
Fig. 2
Locatjon
of
parts
for bushinq
installation
