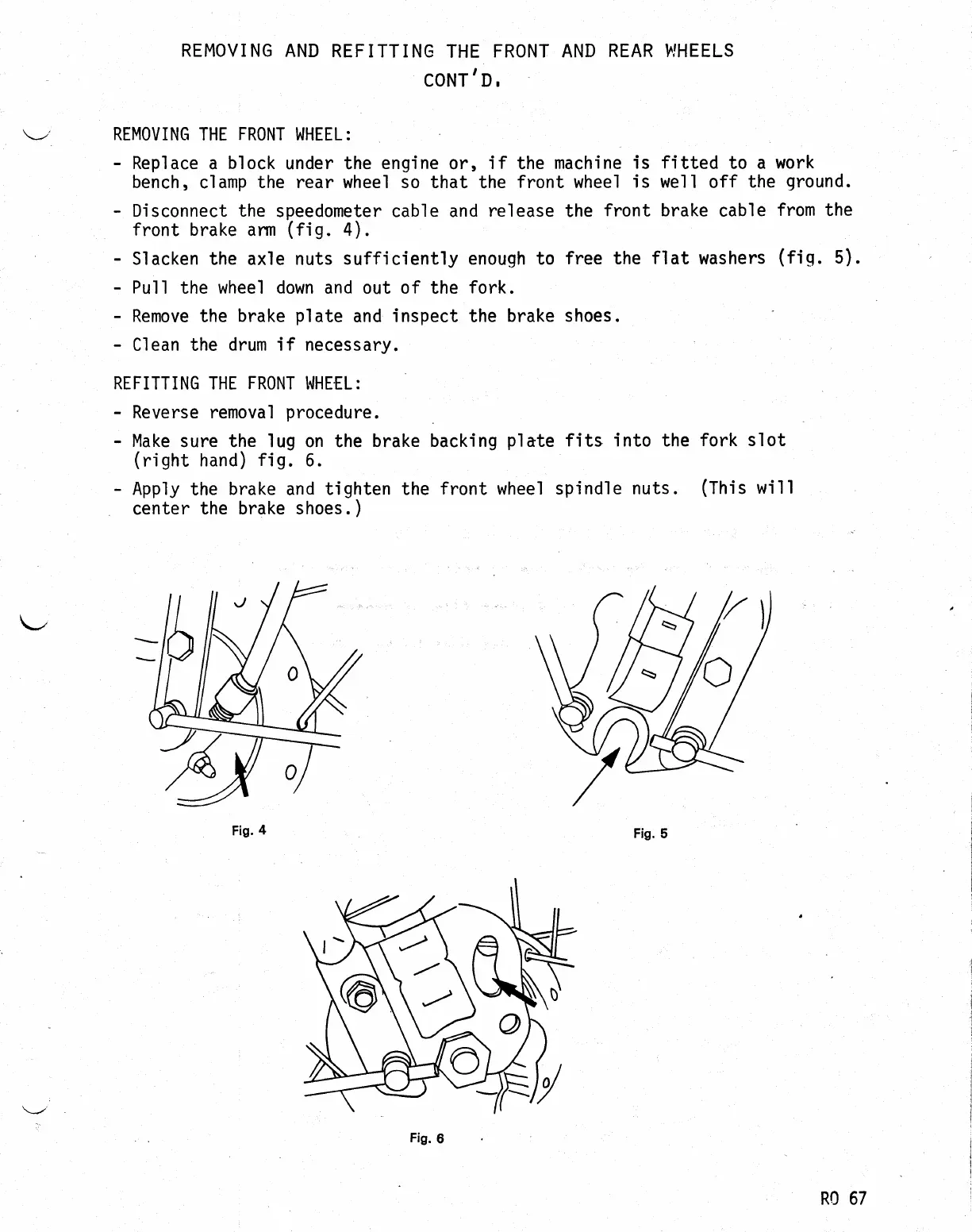

REMOVING AND

REFITTING

THE

FRONT AND

REAR I^IHEELS

CONT,D.

REMOVING

THE

FRONT

WHEEL:

Replace

a

block

under the

engine

or",

if

the

machine is

fitted

to a

work

bench,

clamp

the rear wheel so that

the

front

wheel

is

well off the

ground.

Disconnect the

speedometer cable and

release

the

front

brake

cable

from

the

front brake

arm

(fig.

4).

Slacken the axle nuts

sufficiently enough to

free the

flat

washers

(fig.

5).

Pull

the

wheel

down

and

out

of

the

fork.

Remove

the

brake

plate

and

inspect

the

brake

shoes.

Clean the

drum if

necessary.

REFITTING

THE

FRONT

I^IHEEL:

Reverse removal

procedure

Make

sure the lug on the

brake backing

plate

fits into

the

fork slot

(right

hand)

fig.6.

Apply

the

brake

and

tighten the

front wheel spindle

nuts.

(This

will

center the

brake shoes.

)

Fis.

4

Fig.

5

Fig.

6
