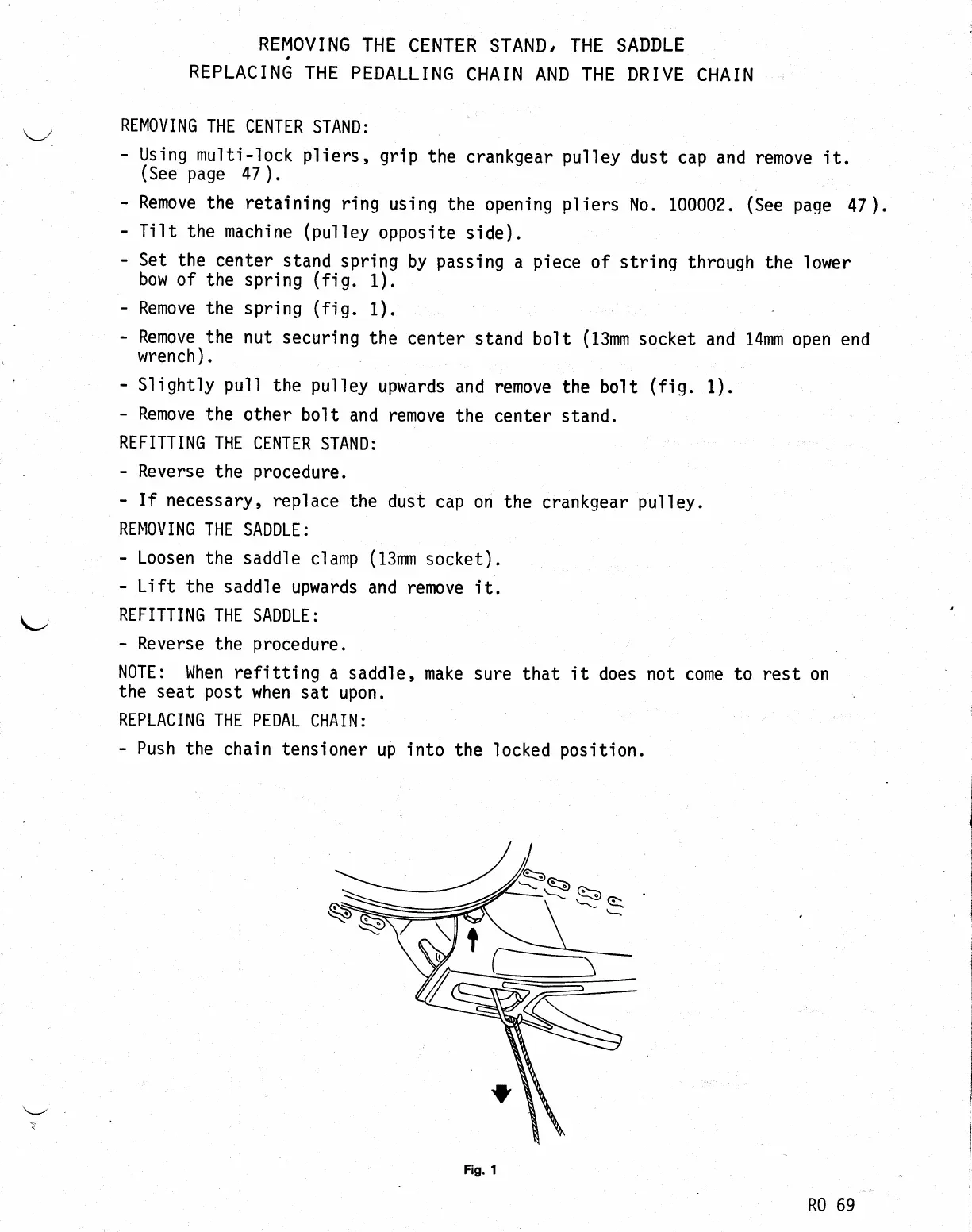

REMOVING
THE
CENTER STAND, THE SADDLE
a
REPLACING
THE
PEDALLING
CHAIN
AND THE DRIVE
CHAIN
REMOVING
THE
CENTER
STAND:
Using
multi-lock
pliers,
grip
the
crankgear
pulley
dust
cap and remove it.
(See
page
47
).
\.-,
Remove
the retaining
ring
using
the opening
pliers
Tilt
the
machine
(pulley
opposite
side).
Set
the
center stand
spring
by
passing
a
piece
of
No.
100002.
(See
page
47
).
string
through the
'lower
bow
of
the
spring
(fig.
L).
Remove
the spring
(fig.
1).
Remove
the nut
securing
the
center
wrench
)
.
stand
bolt
(tgrnm
socket
and 14mm open end
slightly
pull
the
pu1]ey
upwards and
remove
the
bolt
(fig.
L).
Remove
the
other bolt
and remove
the
center stand.
REFITTING
THE
CENTER
STAND:
Reverse
the
procedure.
If
necessary,
replace
the dust
cap on
the
crankgear
pulley.
REMOVING
THE
SADDLE:
Loosen
the saddle
clamp
(13nrm
socket).
Lift
the saddle
upwards
and
remove it.
REFITTING
THE
SADDLE:
Reverse
the
procedure.
N0TE:
When
refitting
a saddle,
make
sure
that
it
does not
come to
rest
on
the seat
post
when
sat
upon.
REPLACING
THE PEDAL
CHAIN:
Push
the
chajn tensioner
up
into
the locked
position.
Fig. 1
R0 69
