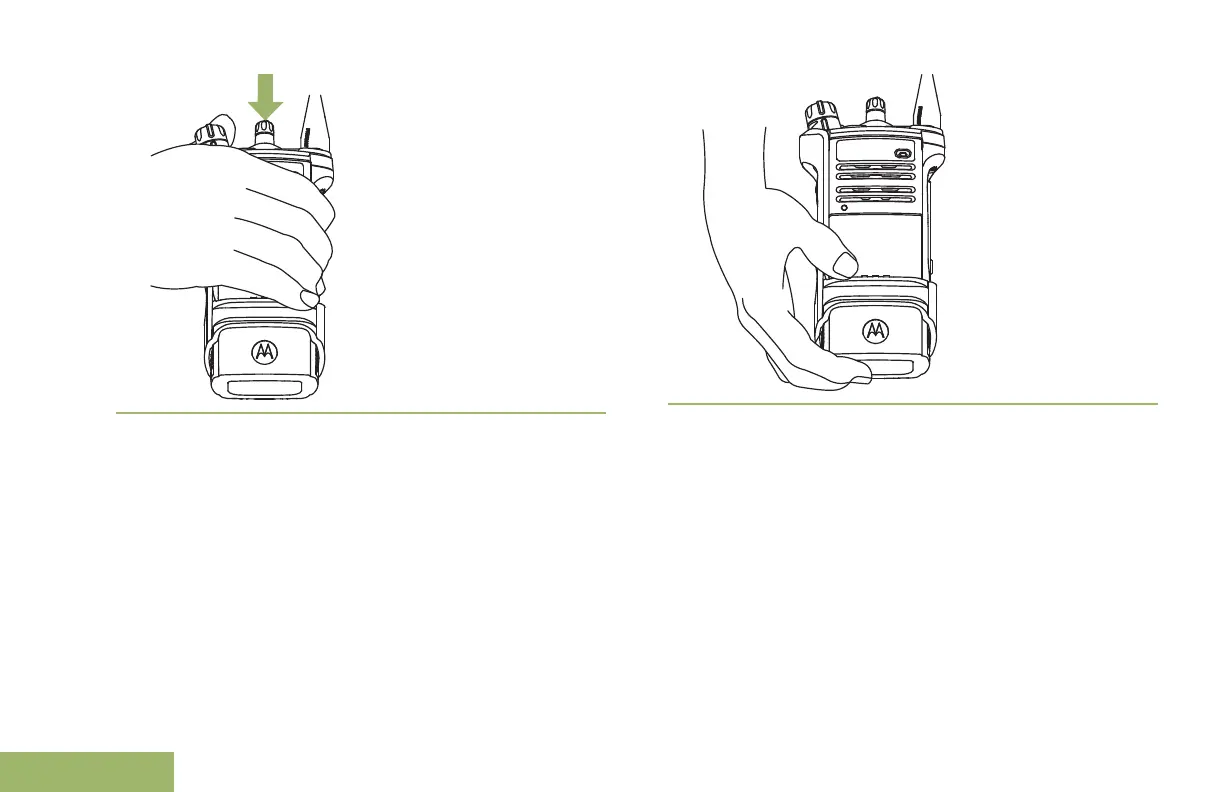

3 To remove the radio from the carry holder, place

the tip of your fingers on the ledge of the carry

holder.

4 Push at the bottom of the radio until the radio is

released from it.

Preparing Your Radio for Use
