Motorola ASTRO APX O2 Quick Reference Card

English
m
ASTRO
®
APX™
O2 Control Head Mobile Radio
Quick Reference Card
RF Energy Exposure and Product Safety Guide for
Mobile Two-Way Radios
ATTENTION!
This radio is restricted to Occupational use only. Before
using the radio, read the RF Energy Exposure and
Product Safety Guide for Mobile Two-Way Radios which
contains important operating instructions for safe usage
and RF energy awareness and control for Compliance
with applicable standards and Regulations.

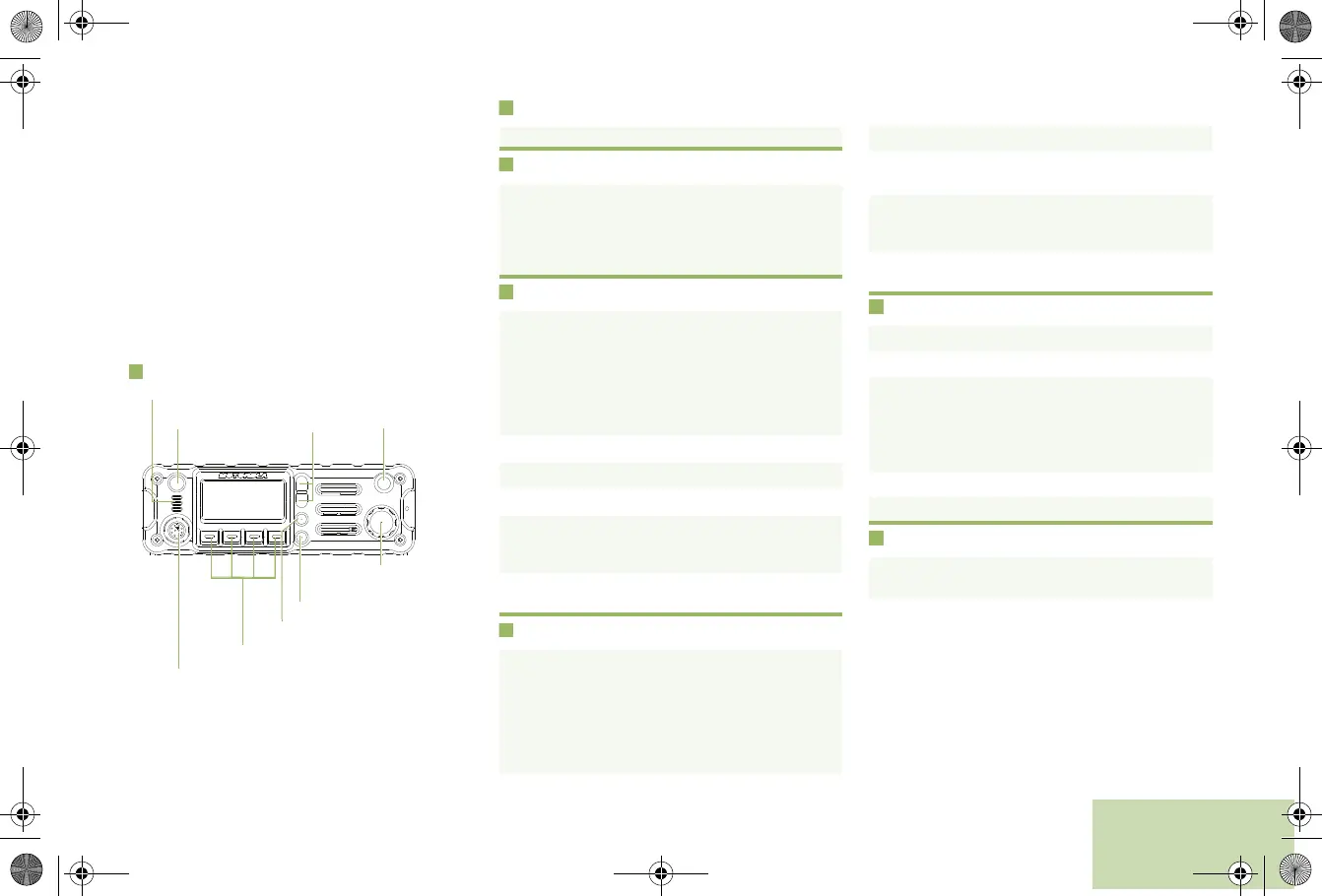

Radio Controls
Radio On/Off
Adjusting Volume
Selecting a Zone
Selecting a Channel
Receiving and Transmitting
Sending an Emergency Alarm
To exit emergency at any time, press and hold the
Emergency button or the PTT button.
Power Button
LED Indicators
Emergency
Button*
Multi-function Knob
(MFK)*
Home Button
Menu Select Buttons*
Accessory Port (Microphone)
*These controls/buttons are programmable.
Dimmer Button
Up & Down
Buttons*
Press the Power button to turn the radio on or off.
If volume is set as the primary mode,
1 Turn the MFK clockwise to increase volume or
counterclockwise to decrease the volume.
If volume is not set as the primary mode, press the MFK
once and repeat step 1.
If zone is set as the primary mode,
1 Turn the MFK until the display shows the desired
zone and press the PTT button to begin transmitting
on the displayed zone.
If zone is not set as the primary mode, press the MFK
once and repeat step 1.
OR
2 > or < (on the keypad mic.) to scroll to Zone.
3 Press the Menu Select button directly below Zone.
4 Rotate the MFK or D or U to the desired zone.
5 Press the Menu Select button directly below Sel or
t
he  button (on the keypad mic.) to confirm the
selected zone number.
6 Press the PTT button to begin transmitting on the
displayed zone.
If channel is set as the primary mode,
1 Turn the MFK until the display shows the desired
channel and press the PTT button to begin
transmitting on the displayed channel.
If channel is not set as the primary mode, press the MFK
once and repeat step 1.
OR
2 > or < (on the keypad mic.) to scroll to Chan.
3 Press the Menu Select button directly below Chan.
4 Rotate the MFK or press D or U to the desired
channel.
5 Press the Menu Select button directly below Sel or
the  button (on the keypad mic.) to confirm the
channel.
6 Press the PTT button to transmit on the displayed
channel.
1 Take the microphone off the hook.
2 Select zone/channel.
3 Listen for a transmission.
OR
> or < (on the keypad mic.) to Mon then press the
Menu Select button directly below Mon and listen for
activity.
4 Adjust volume, if necessary.
5 Press the PTT button to transmit; release to receive.
1 Press the Emergency button. A tone sounds and the
display alternates Emergency and the home display.
2 A dispatcher acknowledgment Ack received display
follows.
AND, Trunking Only:
A high-pitched tone indicates that the alarm has been
received by the trunked system’s central controller.
O2CH_QR-Card.book Page 3 Friday, August 30, 2013 4:26 PM
