Getting Started
17

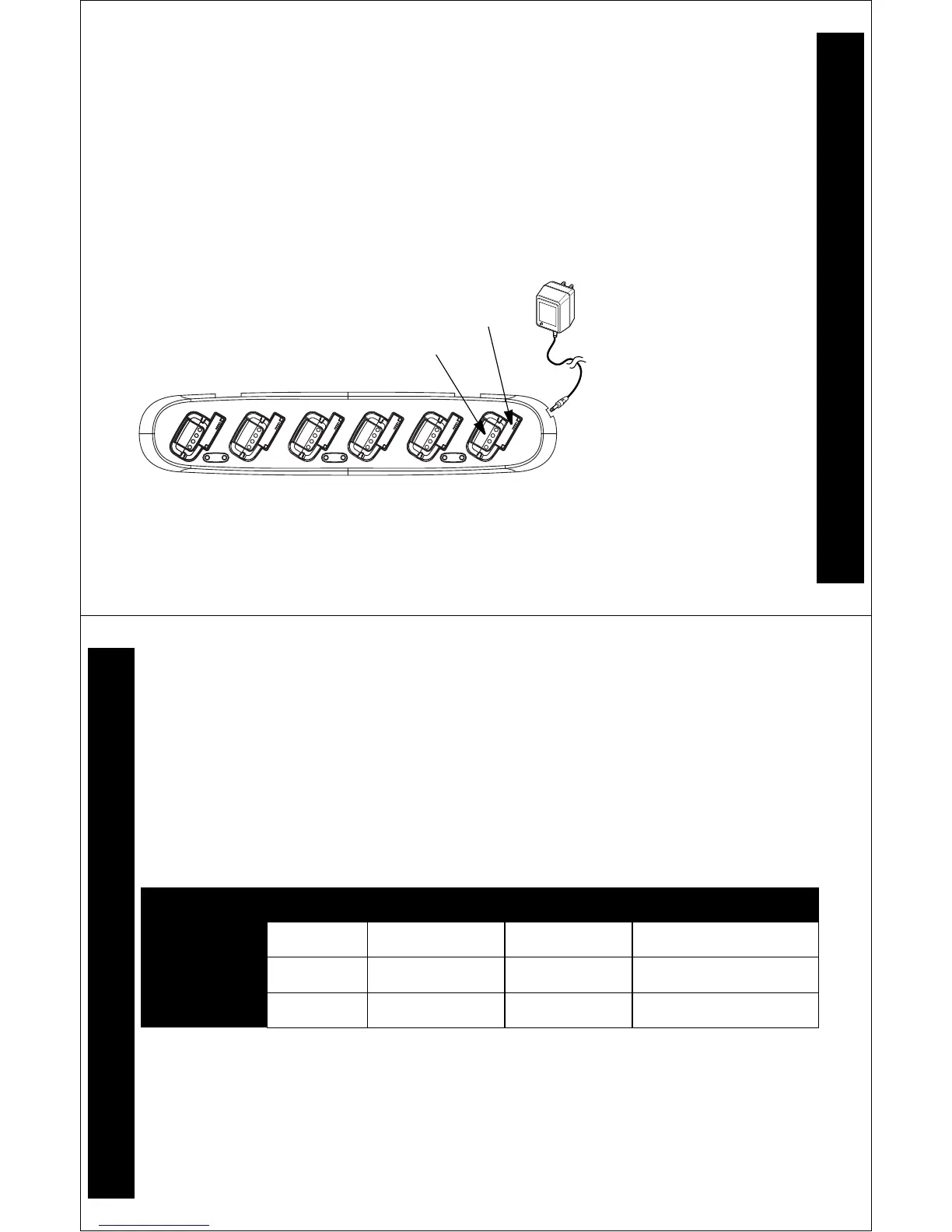

Using the 56531 Multi-Unit Charger
The Multi-Unit Charger (MUC) allows drop-in charging of up to 6 radios or batteries.
Batteries can be charged inside the radios or removed and placed in the MUC
separately. Each of the 6 charging pockets can hold a radio or battery, but not both.
1. Place the charger on a flat surface.
2. Insert the power cord plug into the jack on the MUC.
3. Plug the cord into an AC outlet.
4. Turn the radio off.
5. Insert the radio or battery into the charging pocket.
Radio charging pocket
Battery charging pocket
Getting Started
18
Charging Status LEDs
On the drop-in charger, the radio and battery charging pockets have their own LEDs.
On the MUC, each of the 6 charging pockets has an LED. The LEDs are grouped into
pairs to show which charging pockets are paired (for cloning, see page 32).
The LED is solid red when the battery is charging, and solid green when charging is
complete.
Battery Meter
The battery meter in the upper left corner of the display (see page 20) shows how
much battery power is remaining.
Battery Life
Based on 5% transmit, 5% receive, 90% standby (standard duty cycle):
Note: For optimal battery life, high-capacity alkaline batteries are recommended.
Battery Type 3 Bars 2 Bars 1 Bar Flashing
db c m
Li Ion 100%–85% 85%–25% 25%–10% Final 10%
AAA Alkaline 100%–75% 75%–40% 40%–10% Final 10%
Li Ion – 12 Hours AAA Alkaline – 10 Hours
