Radio Disassembly - Detailed 2-9
6.5.2 For Radios without PA Clip
1. Remove the PA screws. See Figure 2-10.
2. Remove all the screws that fix the PCB to the chassis.
3. Loosen the M2 screw (if fitted) on the RF connector, about 3 to 4 turns using Hex tool.
4. Unscrew the RF connector from outside.
5. Carefully remove the main PCB in a diagonal manner.

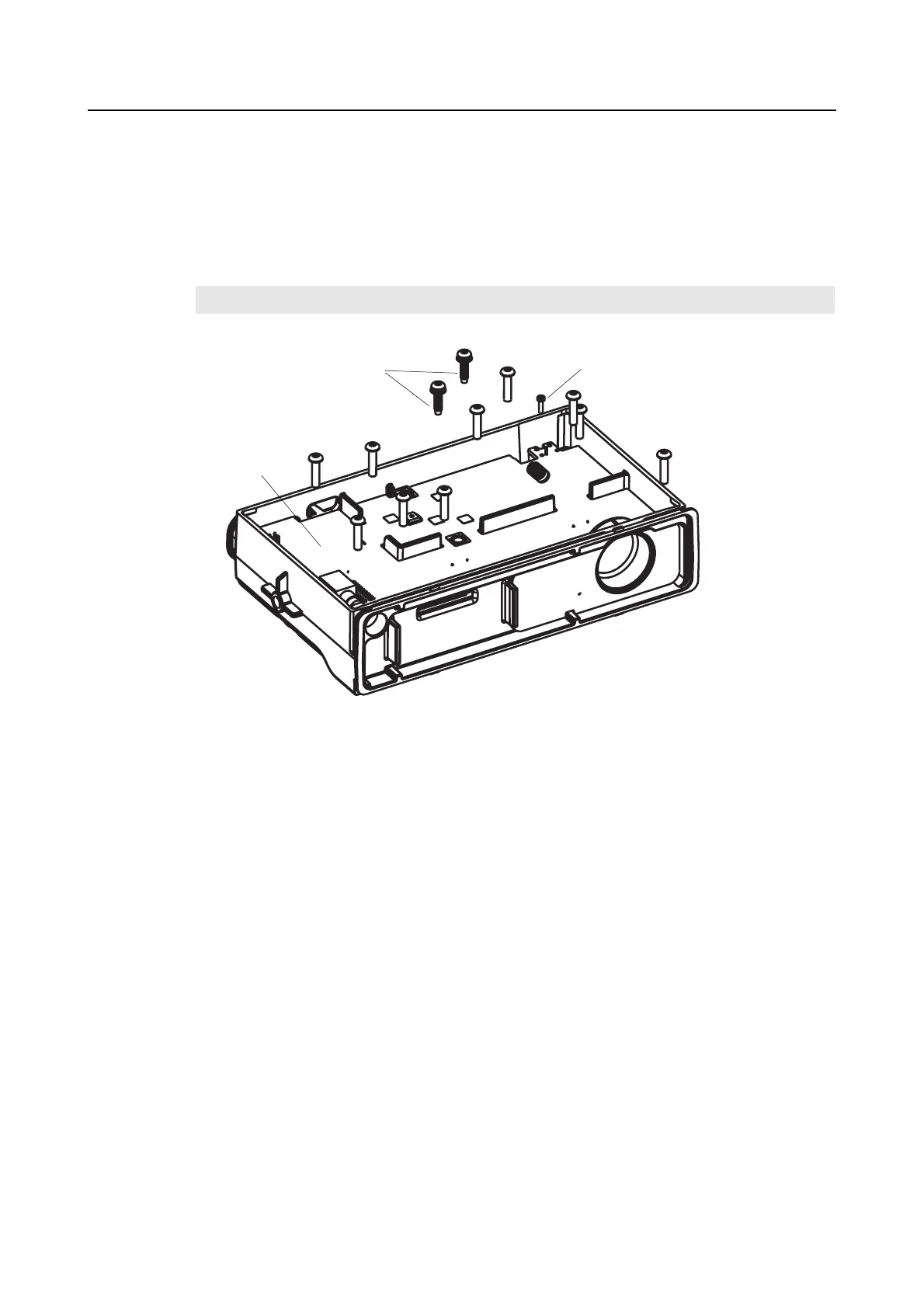

Figure 2-10 Main PCB Removal (for Radios without PA Clip)
NOTE
It is recommended to grip the volume potentiometer and remove the PCB board
Grub Screw (M2)
PA Screws
Main PCB
