5-14 Disassembly/Reassembly Procedures: Radio Disassembly – Detailed
Figure 5-8. Actuator on Mainboard
3. Remove the flex from the fully opened connector by pulling it out gently.

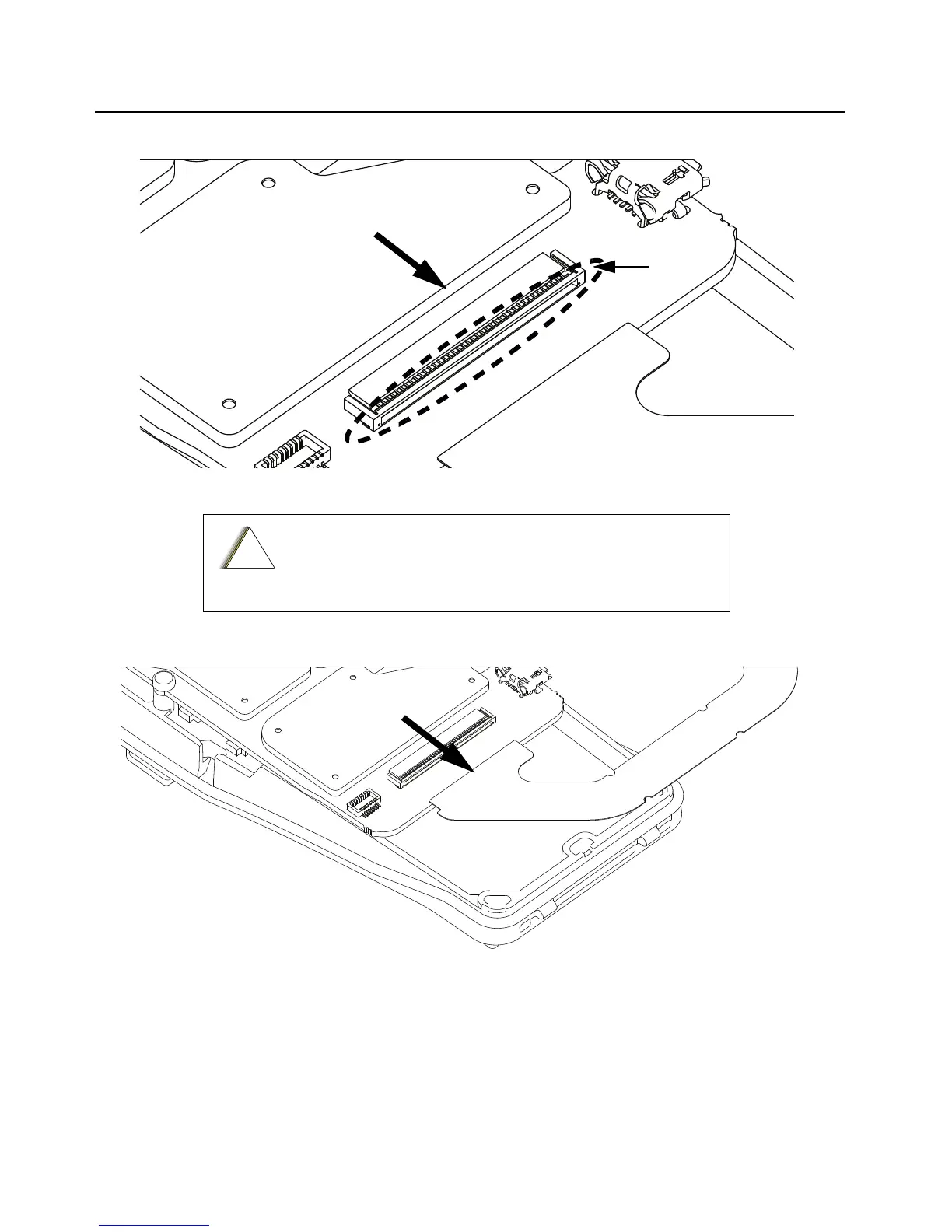

Figure 5-9. Option Board Flex Removal
4. Use TORX screwdriver with T6 bit to remove 2 screws holding the option board to front
housing.
Do not touch upper part of the housing (“A” area) at anytime,
as it may lead to breakage.
