5-16 Disassembly/Reassembly Procedures: Radio Disassembly – Detailed
5.6.3 Chassis Disassembly
1. Use a TORX screwdriver with a T6 bit to remove the three screws holding the main board to
the chassis.

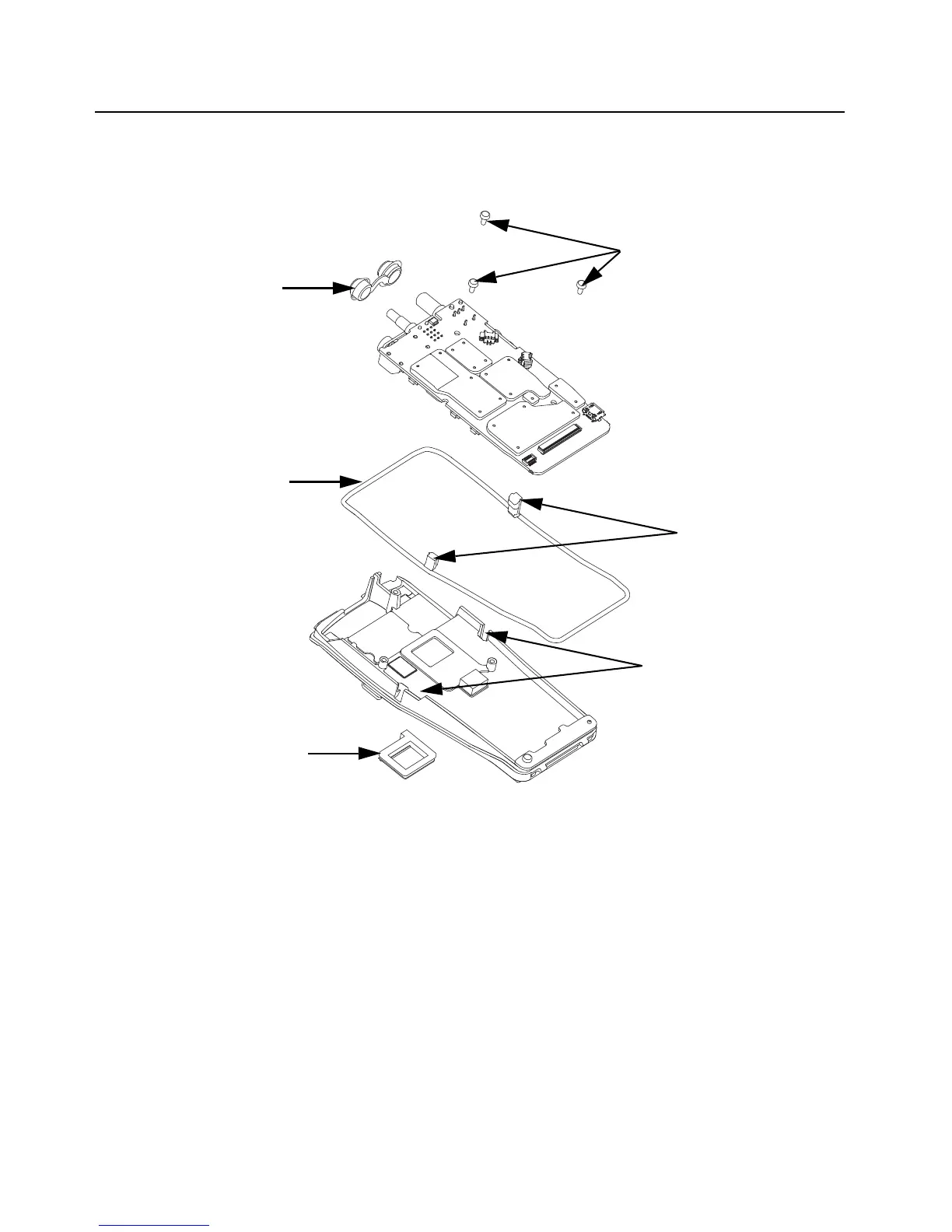

Figure 5-12. Chassis Disassembly
2. Lift the main board from the chassis.
3. Remove the O-ring by releasing the two tabs from the grooves on the chassis.
4. Remove the top control seal and battery contact seal.
Mainboard screws
Top Control Seal
O-ring
Tab
Groove
Battery Contact Seal
To Next Page
