Disassembly/Reassembly Procedures: Radio Disassembly – Detailed 5-17
5.6.4 Speaker and Microphone Disassembly
1. Remove the screw from the speaker retainer, Figure 5-13, using a TORX screwdriver with a
T6 bit.
2. Lift the retainer off the speaker by sliding the end of the retainer out of the corner slot on the
housing.
3. Lift the speaker out of the housing.
4. Carefully lift the microphone assembly out of the housing. If you are replacing the
microphone, remove it from the rubber boot.

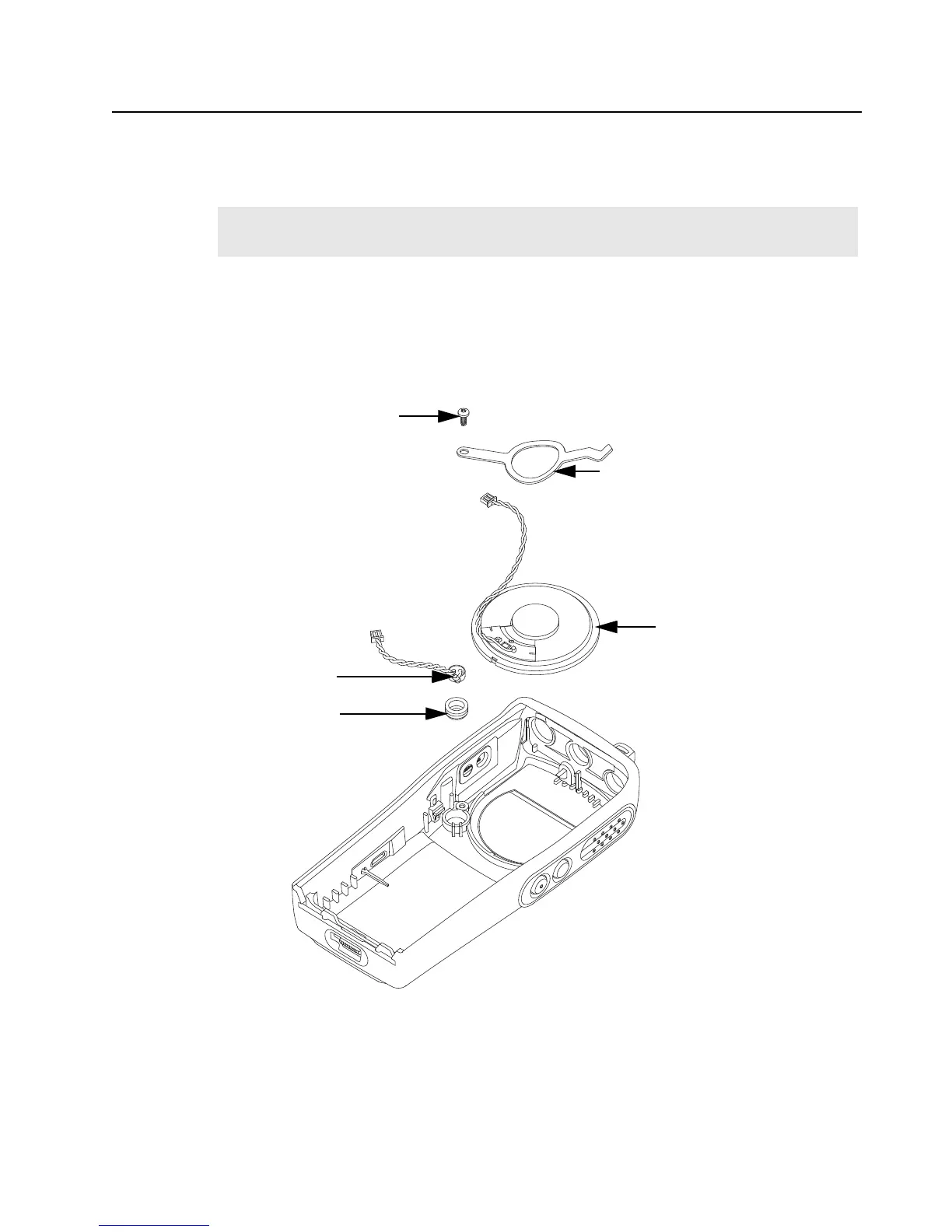

Figure 5-13. Speaker and Microphone Disassembly
NOTE
The speaker is held in place with a retainer. Be careful not to damage the speaker when
removing the bracket retainer.
Screw
Speaker Retainer
Speaker
Microphone
Microphone Boot
