5-18 Disassembly/Reassembly Procedures: Radio Disassembly – Detailed

5.6.5 Audio Jack Dust Cover Disassembly

1. Gently pry the top of the dust cover away from the body of the housing as in Figure 5-14.

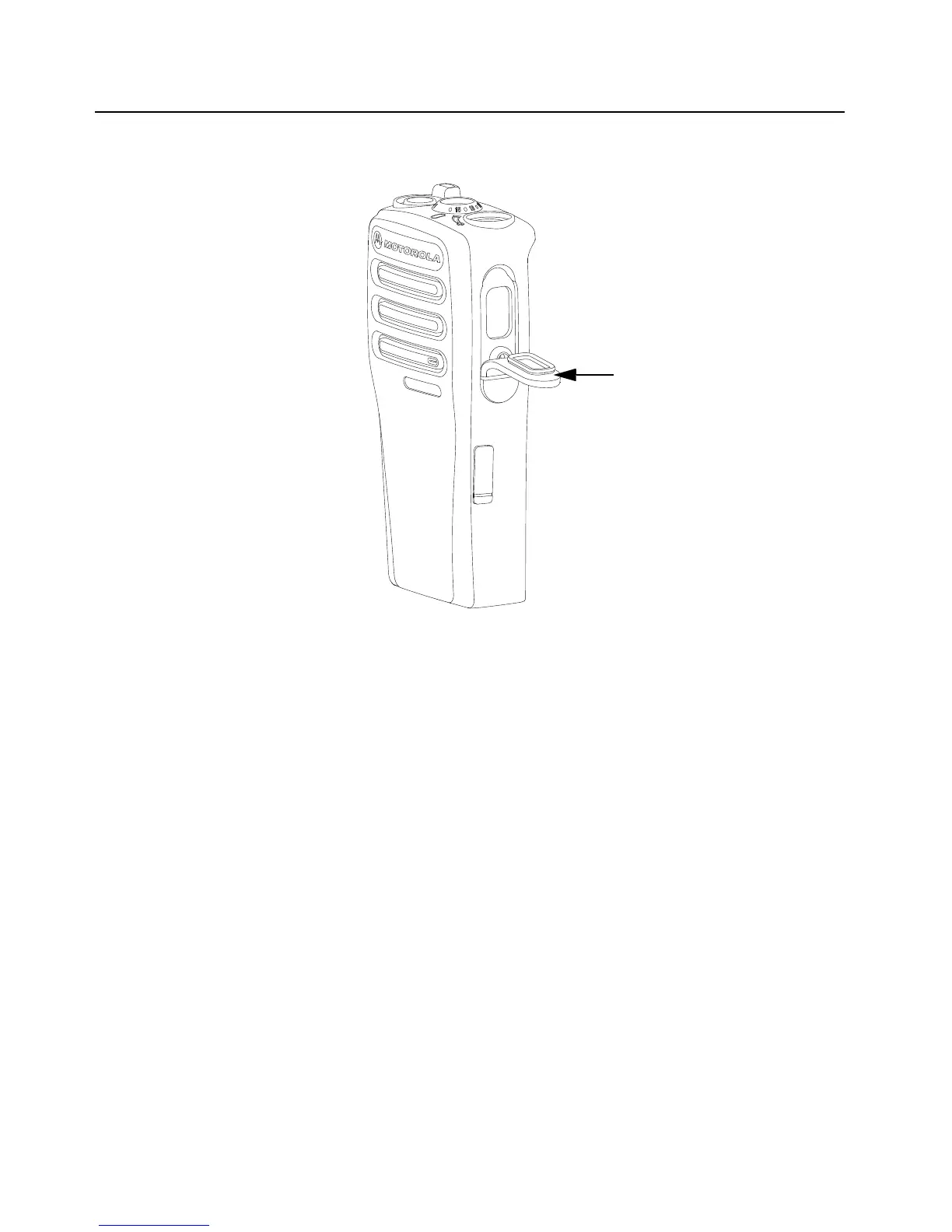

Figure 5-14. Dust Cover Disassembly

Dust Cover
