Disassembly/Reassembly Procedures: Radio Disassembly – Detailed 5-19
2. Face the audio jack side and rotate the dust cover 90° in counter clockwise direction. Flip
open the dust cover 90° in clockwise direction as in Figure 5-15 to allow the key to be
removed.

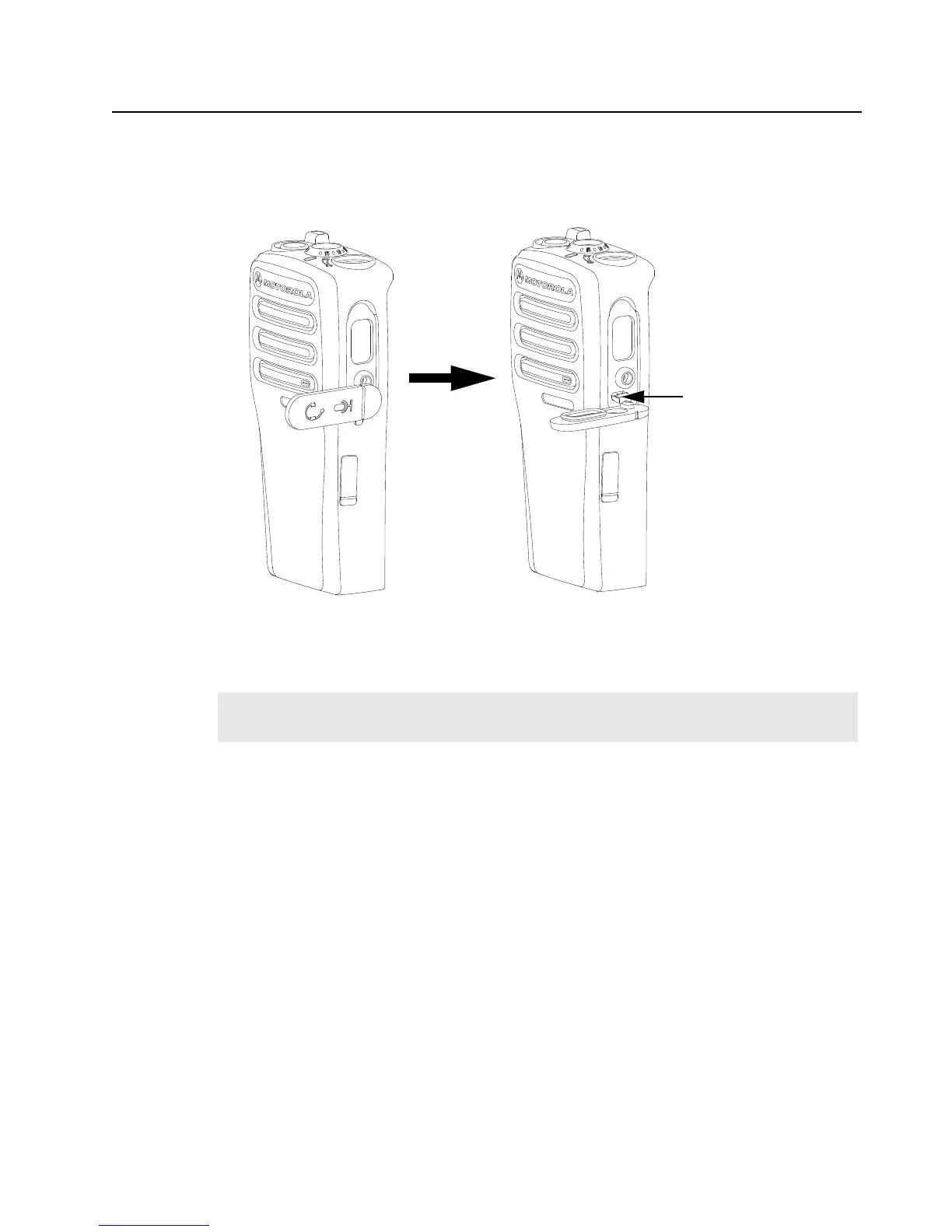

Figure 5-15. Audio Jack Dust Cover Removal
3. Separate the dust cover from the front housing.
NOTE
The dust cover key is fragile; apply only light pressure to the key while removing the dust
cover. If the key is damaged, replace with a new dust cover.
