Disassembly/Reassembly Procedures: Radio Reassembly - Detailed 5-25
5.7.4 Chassis Reassembly
1. Assemble the battery contact seal onto the opening of the chassis in the correct orientation as
shown in Figure 5-21.

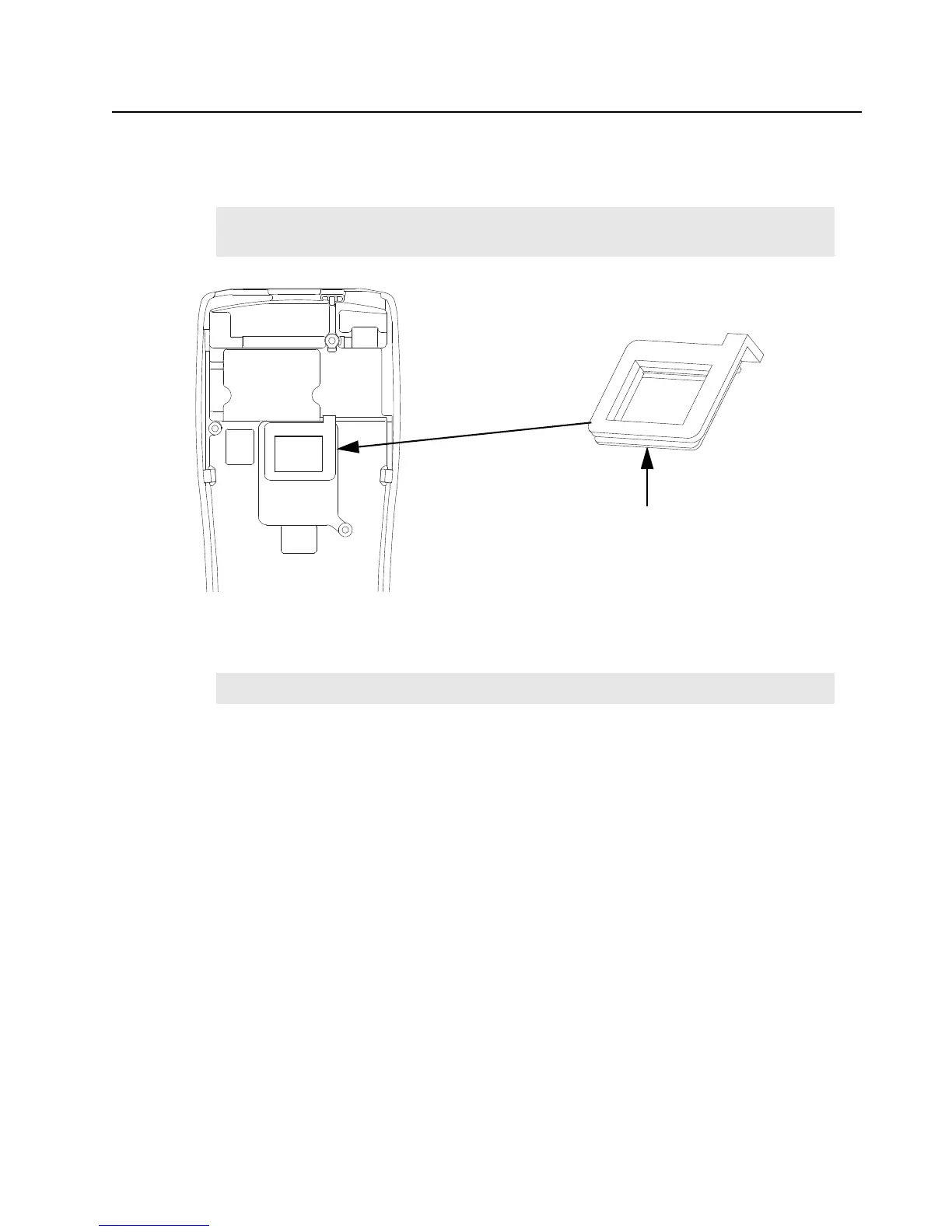

Figure 5-21. Battery Contact Seal Assembly
2. Assemble the main O-ring onto the chassis by pushing the two tabs all the way into the
chassis main O-ring groove. Stretch the O-ring to fit it around the sides of the chassis.
NOTE
Make sure the battery contact seal protrudes through the chassis, following the recess
shape.
NOTE
Make sure the main O-ring is not twisted.
