Motorola DROID RAZR Disassemble Guide

•

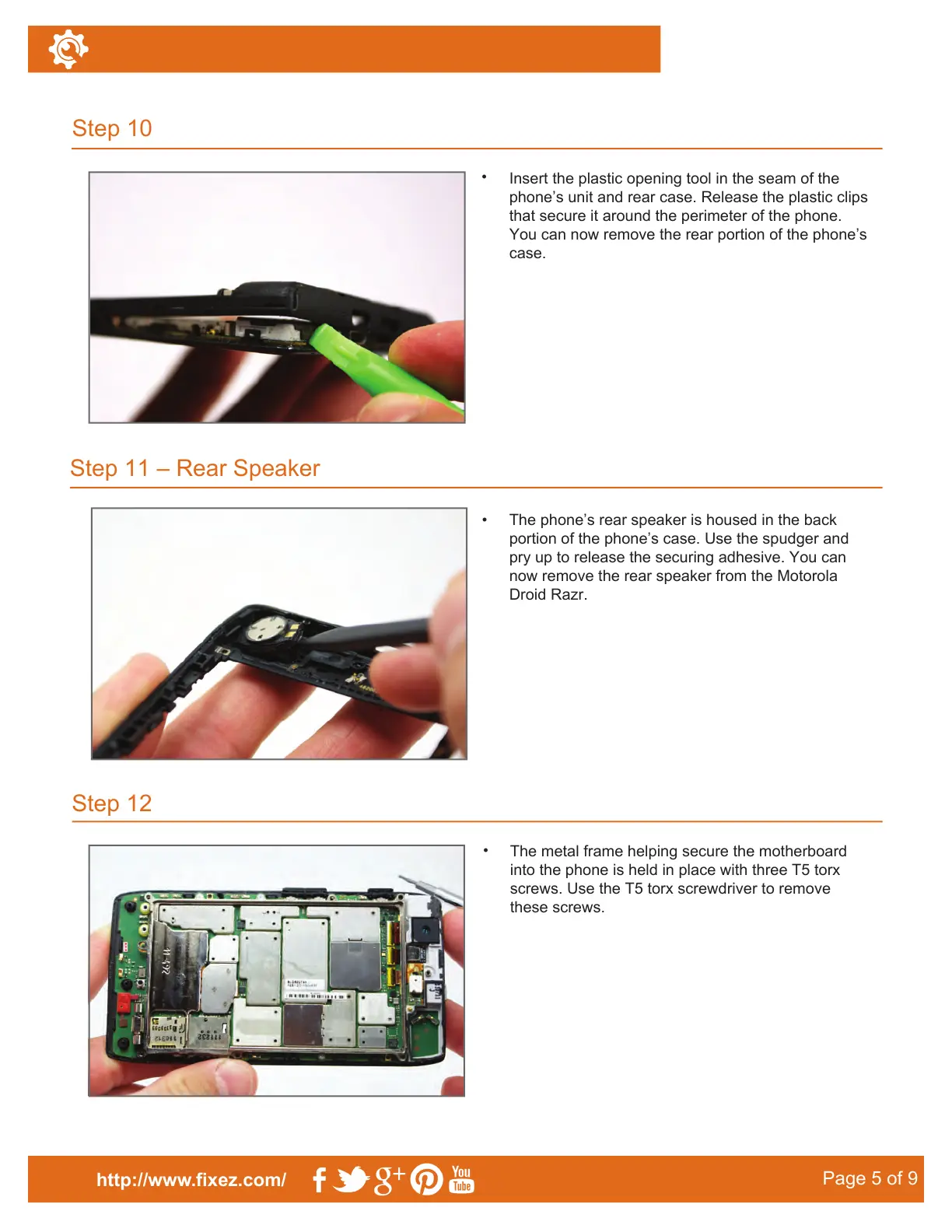

Insert the plastic opening tool in the seam of the
phone’s unit and rear case. Release the plastic clips
that secure it around the perimeter of the phone.
You can now remove the rear portion of the phone’s
case.
Step 12
Step 10
Step 11 – Rear Speaker
http://www.fixez.com/
Page 5 of 9
•
The phone’s rear speaker is housed in the back
portion of the phone’s case. Use the spudger and
pry up to release the securing adhesive. You can
now remove the rear speaker from the Motorola
Droid Razr.
•
The metal frame helping secure the motherboard
into the phone is held in place with three T5 torx
screws. Use the T5 torx screwdriver to remove
these screws.
Motorola Droid Razr–Disassemble Guide

Motorola DROID RAZR Specifications

General

Processor	Dual-core 1.2 GHz Cortex-A9
RAM	1 GB
Internal Storage	16 GB
Rear Camera	8 MP, autofocus, LED flash
Front Camera	1.3 MP
Battery	Non-removable Li-Ion 1780 mAh battery
Operating System	Android 2.3.5 (Gingerbread), upgradable to 4.1.2 (Jelly Bean)
Dimensions	130.7 x 68.9 x 7.1 mm (5.15 x 2.71 x 0.28 in)
Weight	127 g (4.48 oz)
Announced	2011, October
Status	Discontinued
Technology	GSM / CDMA / HSPA / EVDO
Speed	HSPA 14.4/5.76 Mbps, EV-DO Rev.A 3.1 Mbps
GPRS	Yes
EDGE	Yes
SIM	Micro-SIM
Protection	Corning Gorilla Glass
Chipset	TI OMAP 4430
GPU	PowerVR SGX540
Card slot	No
Video	1080p@30fps
Alert types	Vibration; MP3, WAV ringtones
Loudspeaker	Yes
3.5mm jack	Yes
WLAN	Wi-Fi 802.11 b/g/n, DLNA, hotspot
GPS	Yes, with A-GPS
NFC	Yes
Radio	No
USB	microUSB 2.0
Sensors	Accelerometer, gyro, proximity, compass
Messaging	SMS(threaded view), MMS, Email, Push Email, IM
Browser	HTML, Adobe Flash
Java	Yes, via Java MIDP emulator
Display	4.3 inches, Super AMOLED Advanced
Resolution	540 x 960 pixels
2G bands	GSM 850 / 900 / 1800 / 1900
3G bands	HSDPA 850 / 900 / 1900 / 2100
Bluetooth	4.0, A2DP, LE
Talk time	Up to 12 h 30 min (2G) / Up to 9 h (3G)
Colors	Black, White
Features	LED flash
