Option Board Installation 3-13
6. Reassemble the option board to the front cover assembly.
7. Insert the display flex circuit into the connector on the option board.
8. Insert the jumper flex circuit into the connector on the option board. Notice the orientation of
the flex circuit. Arrows on the jumper flex point to the correct way of inserting the flex into the
connector.
9. Replace the retainer by placing the two top hooks into the slots below the speaker in the front
cover; then, pivot the retainer into the front cover. Ensure that all four tab arms snap correctly
into the front cover.
10. With the keypad option board, display, and retainer correctly in place, the front cover assem-
bly can now be reassembled as described in Paragraph 7.6 (Chassis and Front Cover Reas-
sembly).

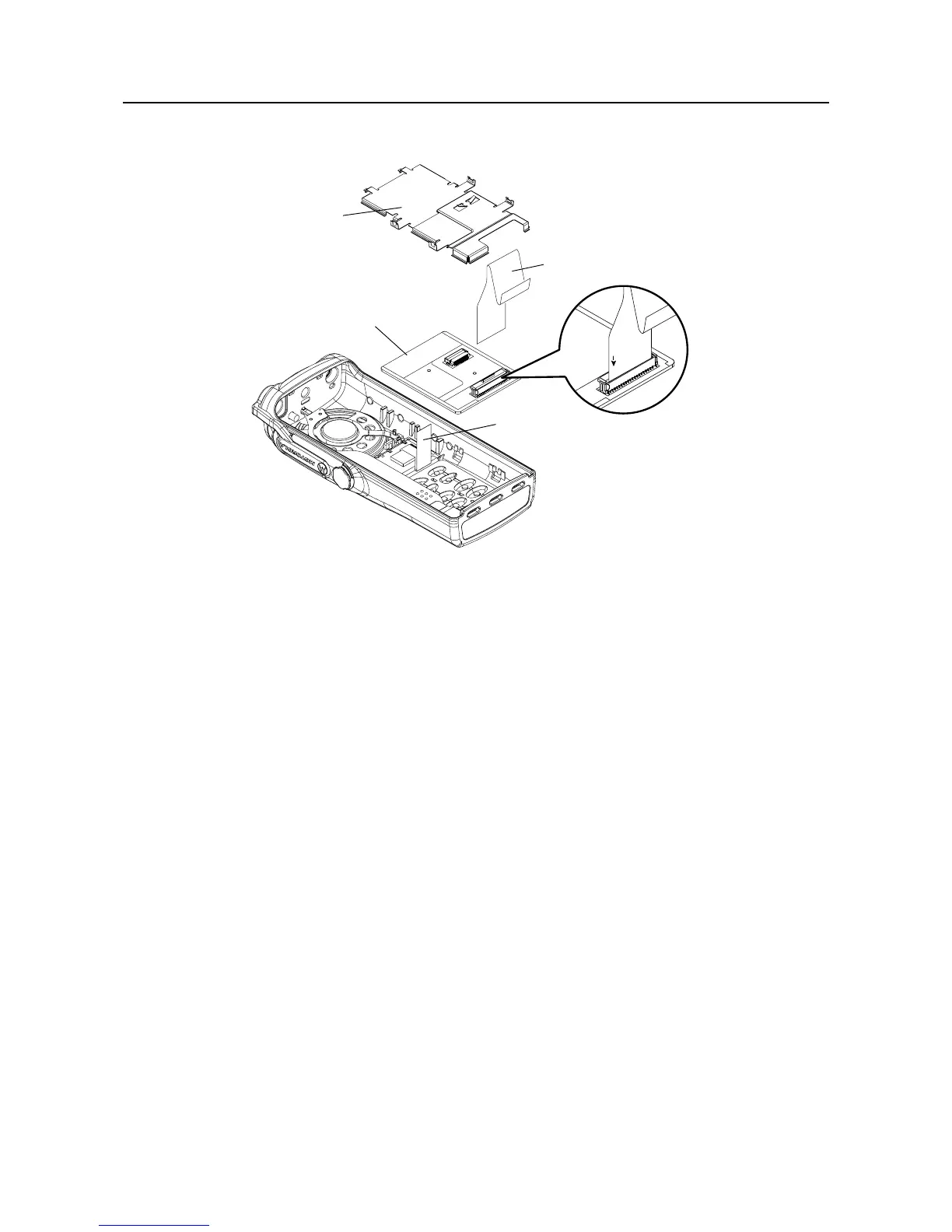

Figure 3-12 Changing the Keypad/Option Board
Retainer
Keypad/Option
Board
Display Flex
Jumper Flex
TO KP
