Motorola MB7220 User Manual

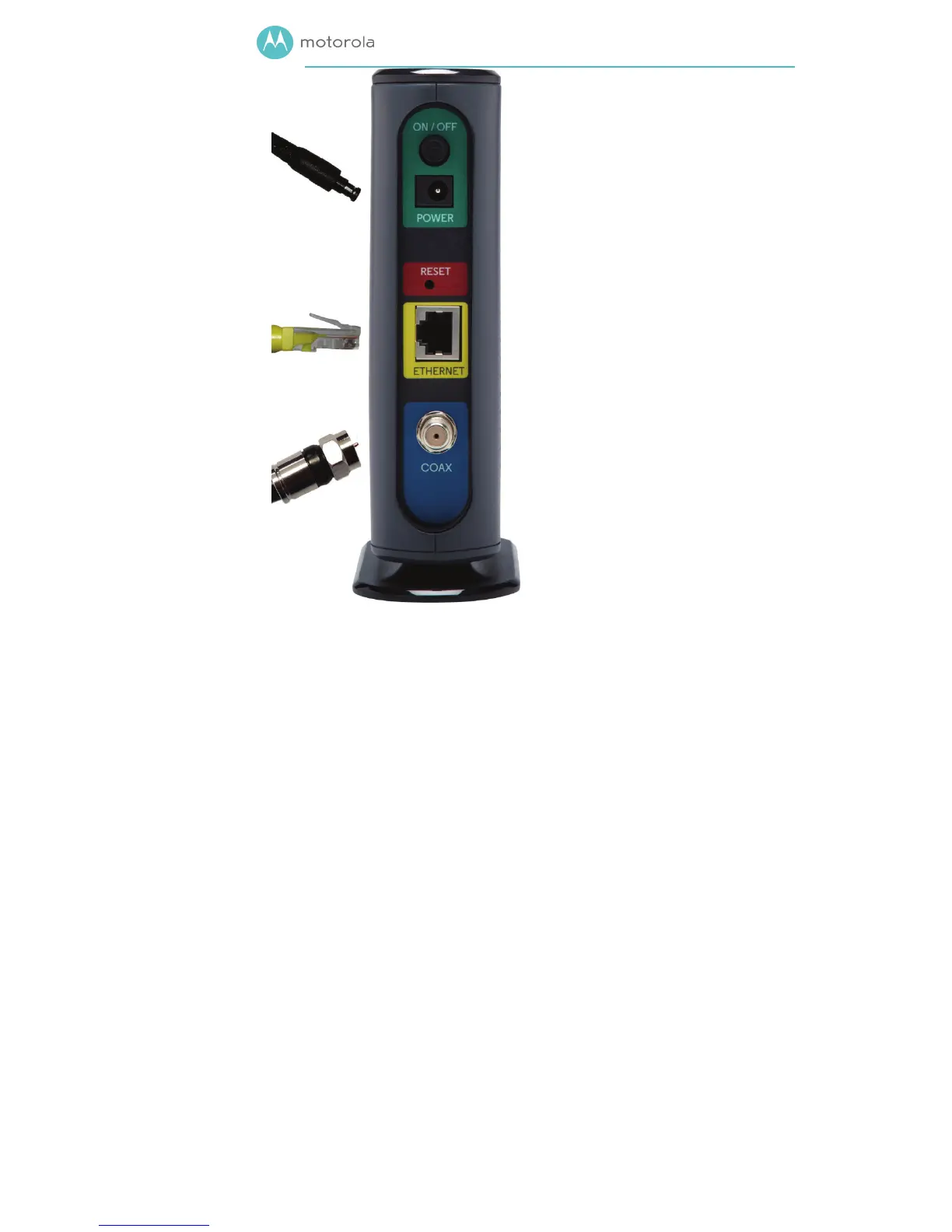

ON/OFF button
POWER
Connect the supplied
power cube between
the power jack and an
electrical outlet.
RESET button
ETHERNET (LAN)
Here you can connect
a computer, router,
HDTV, game station, or
other Ethernet-
capable device.
COAX
Connect a “live” coax
cable to the modem’s
COAX connector as
discussed above.
(Tighten the nut so it’s
finger tight. You may
want to use the supplied
wrench. Make the
connection snug but not
over-tight.)

Motorola MB7220 Specifications

General

Brand	Motorola
Model	MB7220
Category	Modem
Language	English
