Motorola MBP27T/1 User Manual

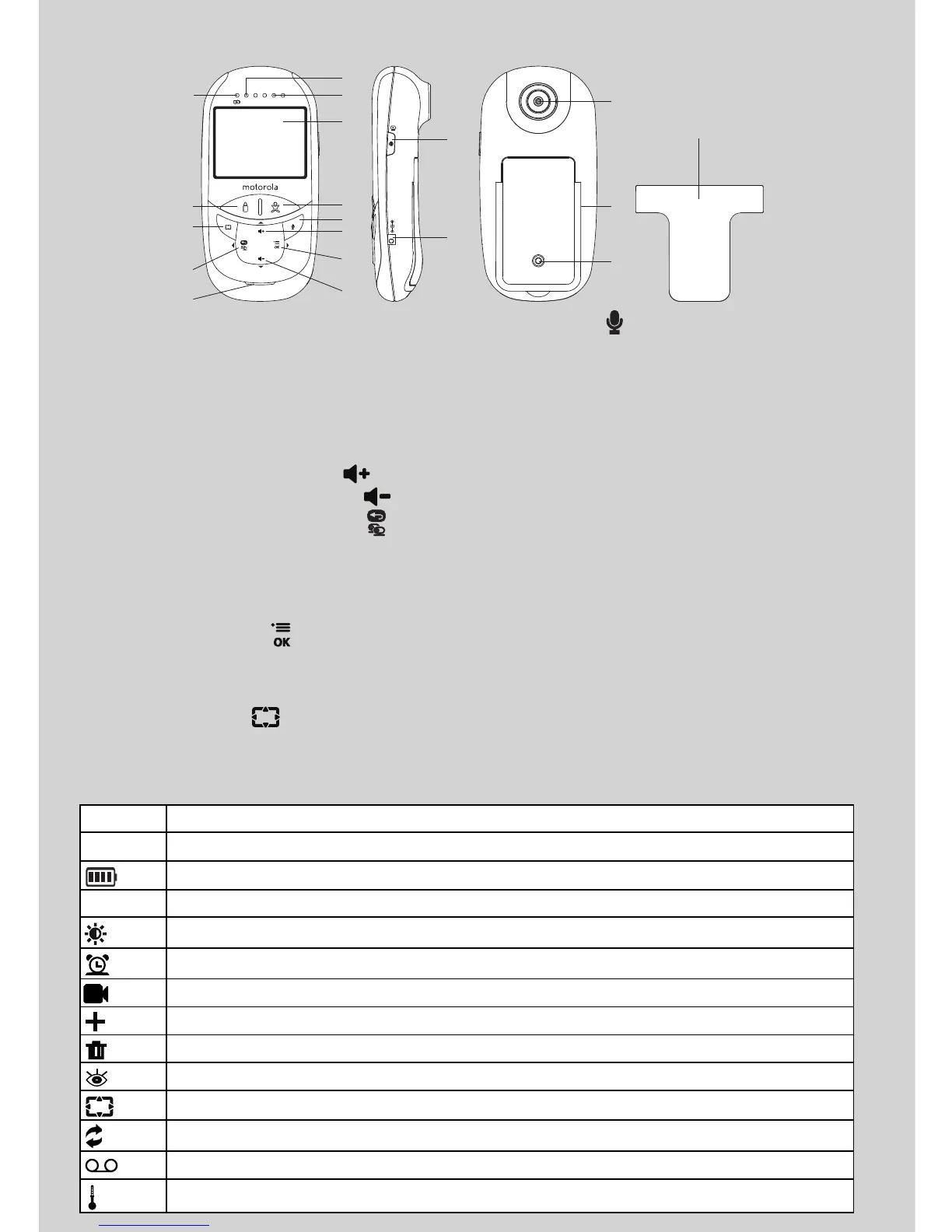

Overview of the Parent Unit
1. Display (LCD screen)
2. Object temperature mode
Press and hold to measure the liquid
temperature
3. Forehead temperature mode
Press and hold to measure the body
temperature at forehead
4. Scroll Up/Volume+ Button
5. Scroll Down/Volume- Button
6. Return/Switch Camera Button
Press to return to previous menu level.
Press to switch camera units (if paired with
more than one camera).
Press to pan left in digital pan/tilt mode.
7. Menu/OK Button
Press to open the menu options.
Press to confirm a selection.
Press to pan right in digital pan/tilt mode.
8. Digital Pan/Tilt
Press to enter/exit digital pan/tilt mode
9. Talk Key
Press and hold to talk back through the
camera.
10. The power is ON when indicated by a
Blue LED light.
11. Unit ON/OFF LED (Green)
12. Audio Level LED (Green, Orange, Red,
Red)
13. Power / Video On-Off Button
P
Press and hold to turn the Unit
ON or OFF.
In monitor mode, press to turn the
display ON/OFF
14. Battery cover
15. Stand
16. Speaker
17. Power Adapter Socket
18. Belt Clip
19. Probe tip
POWER
17
13
18
15
14
19
1
3
9
4
7
5
10
8
2
6
16
11
12
Parent Unit menu icons
Signal Level Indication (5 Levels)
Night Vision Mode (Video also changes to Black/White)
Battery Level Indication (4 Levels)
Volume Level Control (8 Levels)
Brightness Level Control (8 Levels)
Alarm Setting (6h, 4h, 2h, OFF)
Camera setting
Add Camera
Delete Camera
Select Camera
Digital Pan/Tilt mode On
Camera scan mode set
Forehead Temperature Record
Select C/F
1
N
*
