LED Indicator
Blinking red – Radio is receiving an
emergency transmission or has failed the
self-test upon powering up, or has moved
out of range if radio is configured with
Auto-Range Transponder System.
Solid green – Radio is powering up, or
transmitting.
Blinking green – Radio is receiving a
non-privacy-enabled call or data, or
detecting activity or retrieving Over-the-Air
Programming transmissions over the air.
Double blinking green – Radio is receiving
a privacy-enabled call or data.
Solid yellow – Radio is monitoring a
conventional channel or in Bluetooth
Discoverable Mode.
Blinking yellow – Radio is scanning for
activity or receiving a Call Alert, or all local
Linked Capacity Plus channels are busy.
Double blinking yellow – Radio is no
longer connected to the repeater while in
Capacity Plus or Linked Capacity Plus, all
Capacity Plus channels or Linked Capacity
Plus channels are currently busy, Auto
Roaming is enabled, radio is actively
searching for a new site. Also indicates
radio has yet to respond to a group call
alert, or radio is locked.
Radio Controls
Record your radio’s programmable button functions in the blanks provided.
SP represents Short Press.
LP represents Long Press.

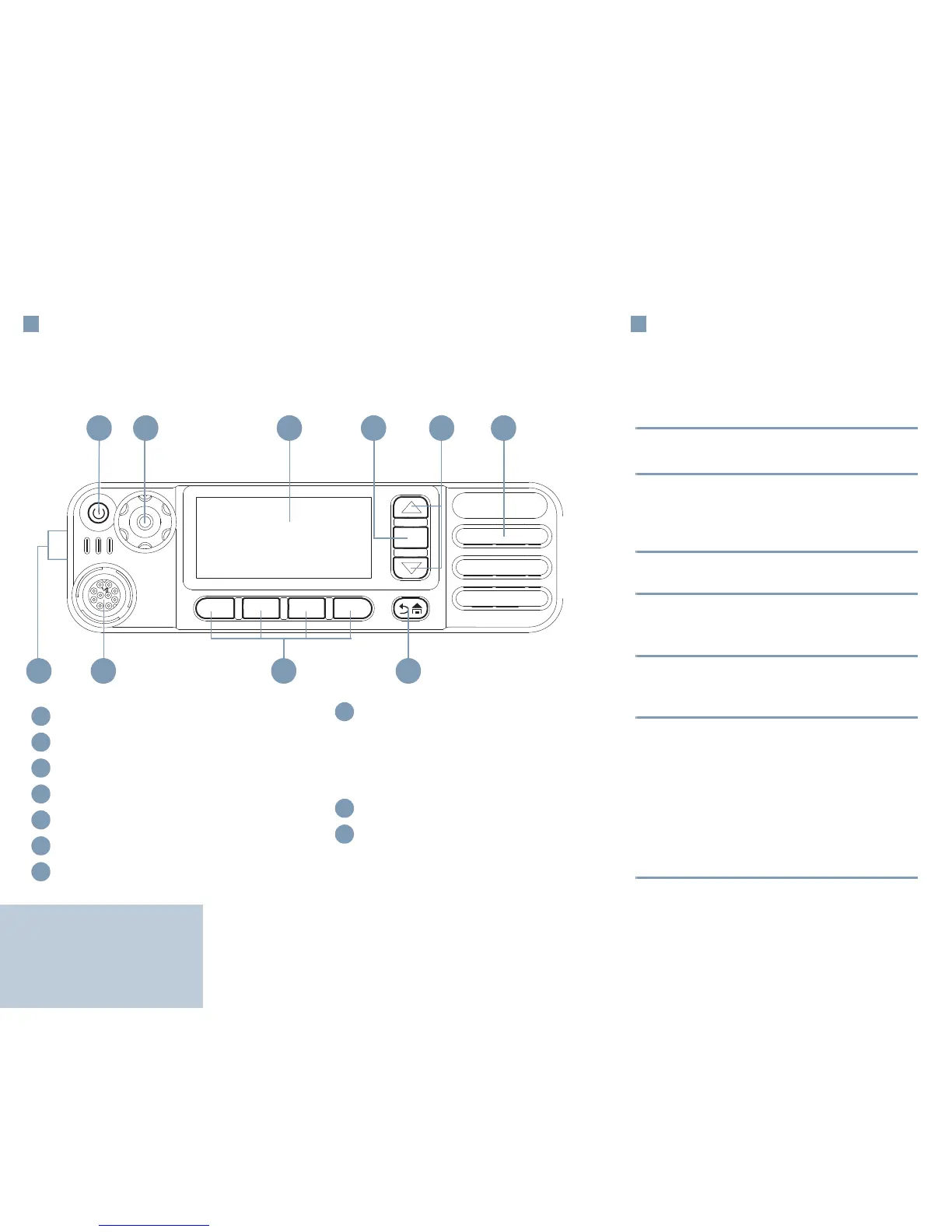

Front Buttons (Programmable)
P1 - SP: ______ LP: _______
P2 - SP: ______ LP: _______
P3 - SP: ______ LP: _______
P4 - SP: ______ LP: _______
Accessory Connector
LED Indicators
†
Not for Numeric Display radio models
To Next Page
