4
6880904Z68-O May, 1997
Controls, Switches, Indicators, and Connectors P110 16-Channel Portable Radios

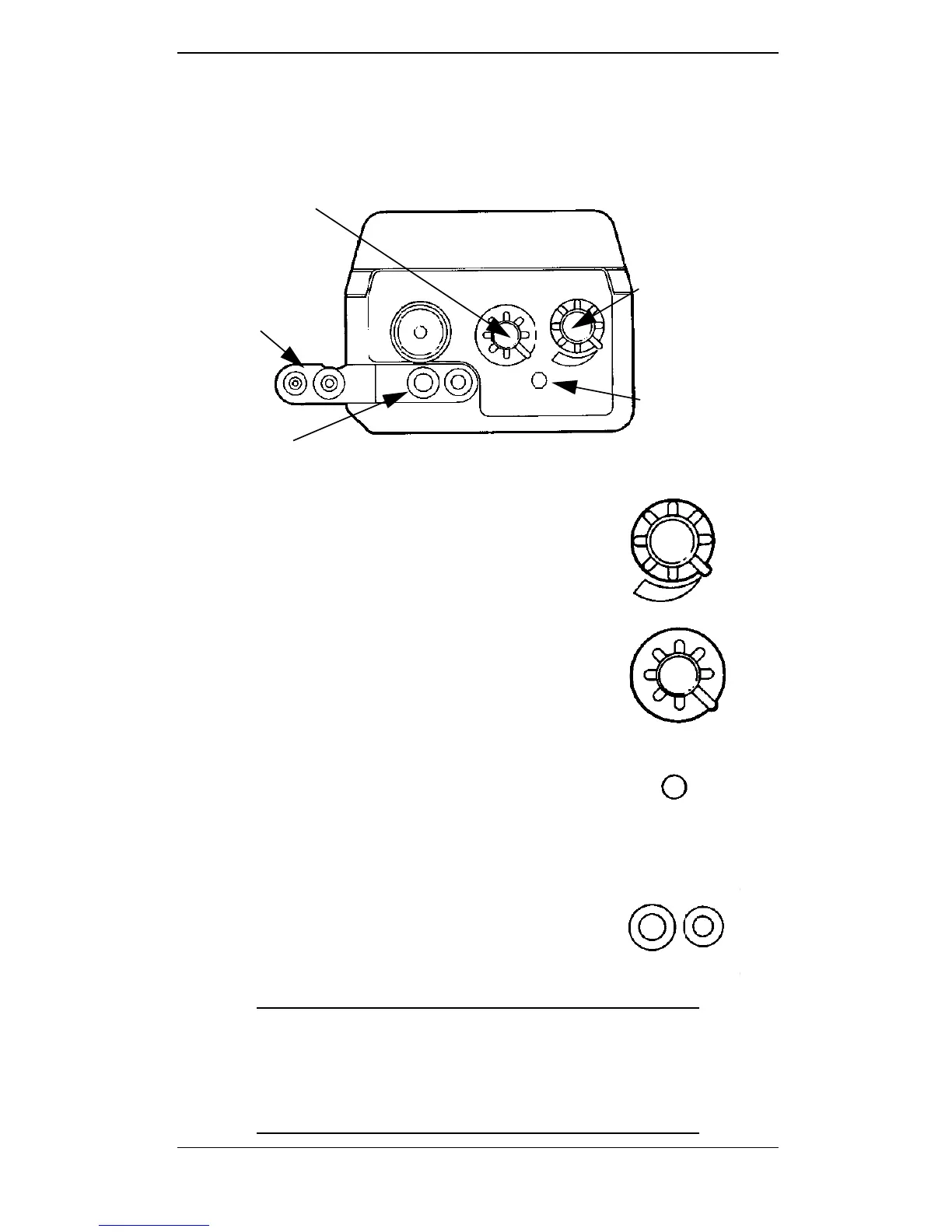

Controls, Switches, Indicators,
and Connectors
On/Off/Volume Control
Turns the radio on and off and
adjusts the volume level.
Rotary Channel Selector
Switch
Selects the operating channel.
LED Indicator
A bi-colored light-emitting diode
(LED) indicates the radio’s oper-
ating status.
Accessory Connector
Provides accessibility for con-
nection to remote accessories
such as a remote speaker
microphone.
NOTE
The Accessory Connector Cover protects the
Accessory Connector. This cover should remain
in place whenever the radio is not being used
with an accessory.
Rotary Channel
Selector Switch
On/Off
Volume
Control
LED Indicator
Accessory
Connector
Cover
Accessory
Connector
Top View
