Ajay16 Motorola v3 Disassembly Guide v1.1
Page: 2
Compiled Exclusively for MotoModders.net

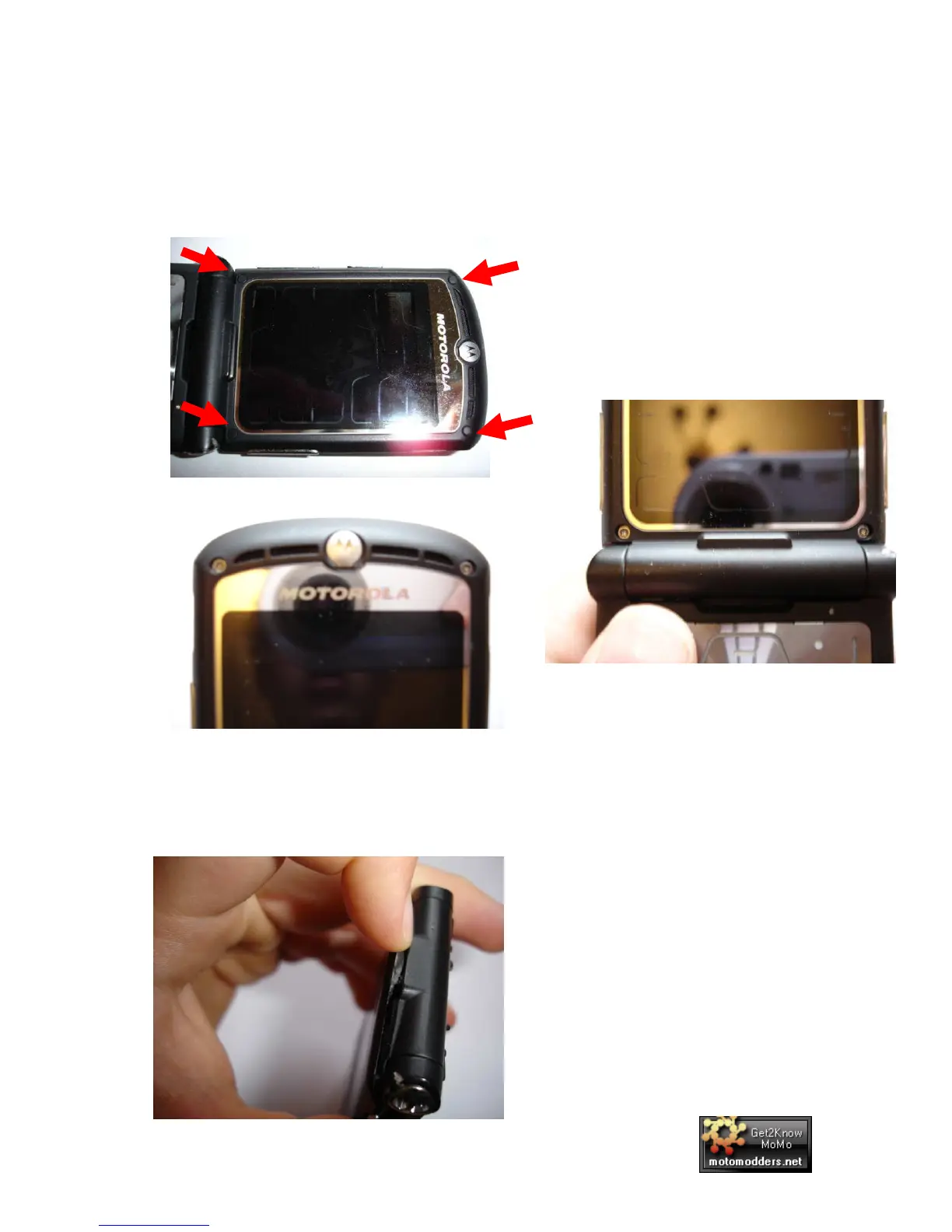

1. Turn off your v3, remove the battery and your sim card.
2. Flick out the small rubber screw covers on the screen. DO NOT
LOOSE these as they are extremely hard to get replacements!
Use the pin to remove the bottom two.
3. Unscrew all 4 screws using the T4 screwdriver.
4. Use your nail to lift up the facia at the top corner of the camera
lens. This should come up easily.
