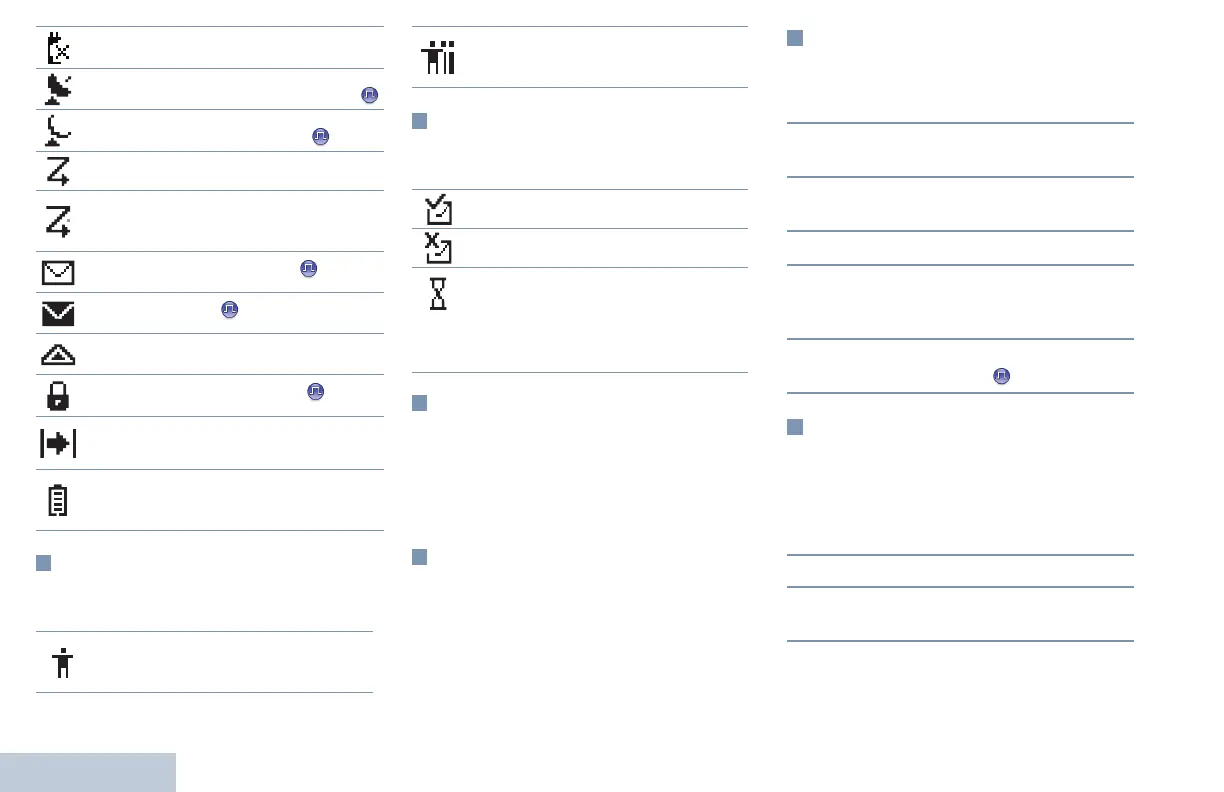

Call Icons
The following icons appear during a call, and in
the Contacts list to indicate ID type.
Sent Items Icons
The following icons appear at the top right corner
of the radio’s display in the Sent Items folder.
Powering Up and Turning Off the
Radio
Rotate the On/Off/Volume Control Knob
clockwise until you hear a click to turn on the
radio, and counterclockwise until you hear a click
to turn it off.
Adjusting the Volume
Turn the On/Off/Volume Control Knob clockwise
or counterclockwise.
LED Indicator
Blinking red – Radio is receiving an Emergency
transmission or has failed the self-test upon
powering up.
Solid yellow – Radio is receiving a request for a
Private Call, or monitoring a channel.
Blinking yellow – Radio is scanning for activity
or receiving a Call Alert.
Solid green – Radio is transmitting.
Blinking green – Radio is powering up,
receiving a non-privacy-enabled call or data, or
detecting activity over the air.
Rapidly blinking green – Radio is receiving a
privacy-enabled call or data.
Selecting a Zone
Press the programmed Zone button and proceed
to step 3.
OR
Follow the procedure below.
1 S to access the menu.
2 Por Q to Zone and press N to select.
3 The current zone is displayed and indicated
by a 9.
The Option Board is disabled.
The GPS feature is enabled. The icon
stays lit when a position fix is available.
The GPS feature is enabled but is not
receiving data from the satellite.
Scan feature is enabled.
Radio recognizes activity on the channel/
group designated as Priority 1 (if
•
is
blinking) or as Priority 2 (if
•
is steady).
Unread message in the Inbox.
User’s Inbox is full.
Radio is in Emergency mode.
The Privacy feature is enabled.
Radio bypasses the repeater and
communicates directly with another radio.
The number of bars (0 – 4) shown
indicates the charge remaining in the
battery. Blinks when the battery is low.
Indicates a Private Call in progress. In
Contacts list, it indicates a subscriber
alias or ID.
Indicates a Group Call or All Call in
progress. In Contacts list, it indicates a
group alias or ID.
The text message is sent successfully.
The text message cannot be sent.
• The text message to a group alias or
ID is pending transmission.
• The text message to a subscriber alias
or ID is pending transmission, followed
by waiting for acknowledgement.
NAG-LACR-EMEA.book Page 70 Monday, April 28, 2008 4:59 PM

Motorola xpr6550 Specifications

General

Channels	128
Emergency Button	Yes
Bluetooth	No
Keypad	Yes
Operating Temperature	-30°C to +60°C (-22°F to +140°F)
Frequency Range	VHF: 136-174 MHz, UHF: 403-470 MHz
