5 Operation
Rev. 12/2019 19
Pos. Designation
Voltage display (LED scale, also see section Voltage Displa
on page 20)
Adjustment buttons for the bottom value of the red range
Adjustment buttons for the bottom value of the yellow range
Status display (see section Status Displa
on page 20)
SET button
On/off button
BNC connector

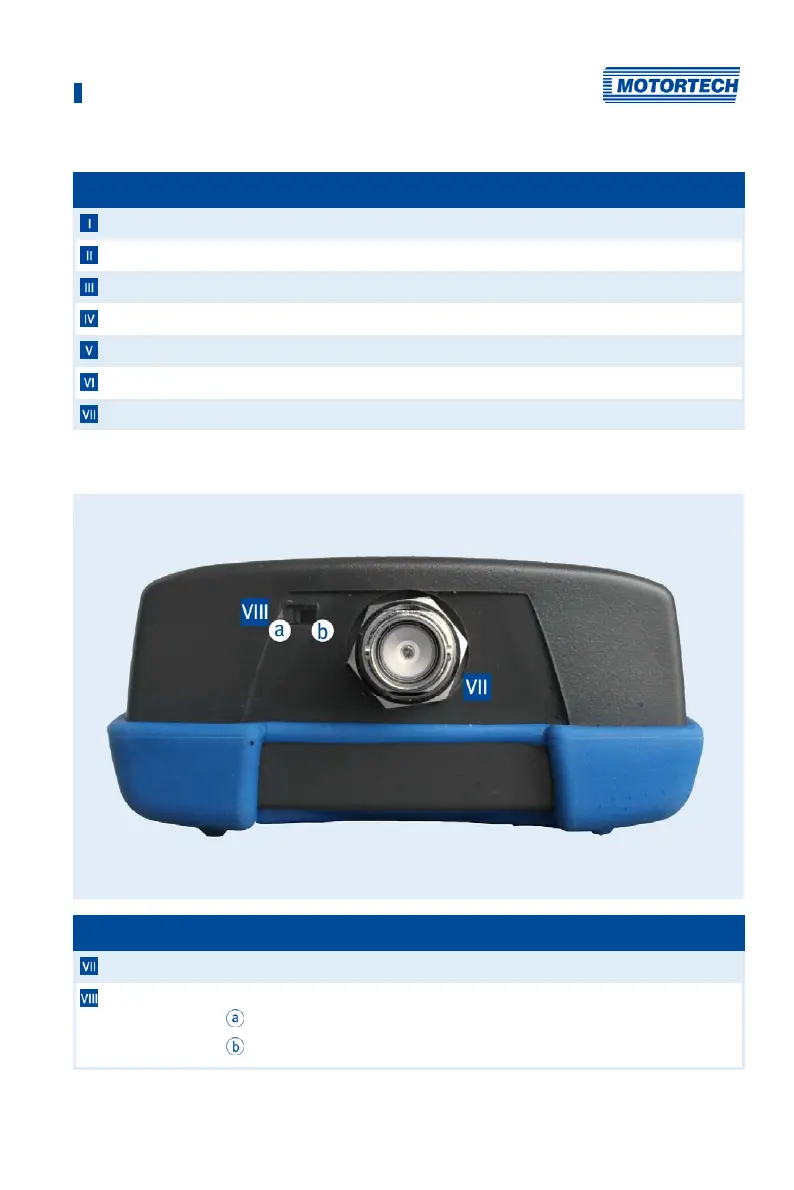

Plan View
Pos. Designation
BNC connector
Switch for selecting the measuring range
– Position
: Measuring range 0 kV to 25 kV
– Position
: Measuring range 0 kV to 50 kV
