5 Operation
24 Rev. 12/2019
3. Clamp the grounding clamp of the SparkScan1 high voltage clamp to a suitable location on
the engine that provides a safe electrical connection to ground.
4. Connect the coaxial cable of the SparkScan1 high voltage clamp to the BNC connector
of
the SparkView.
5. Clamp the SparkScan1 high voltage clamp to a spark plug lead with a maximum diameter of
7 mm (0.27'') without touching the spark plug lead with your hands.

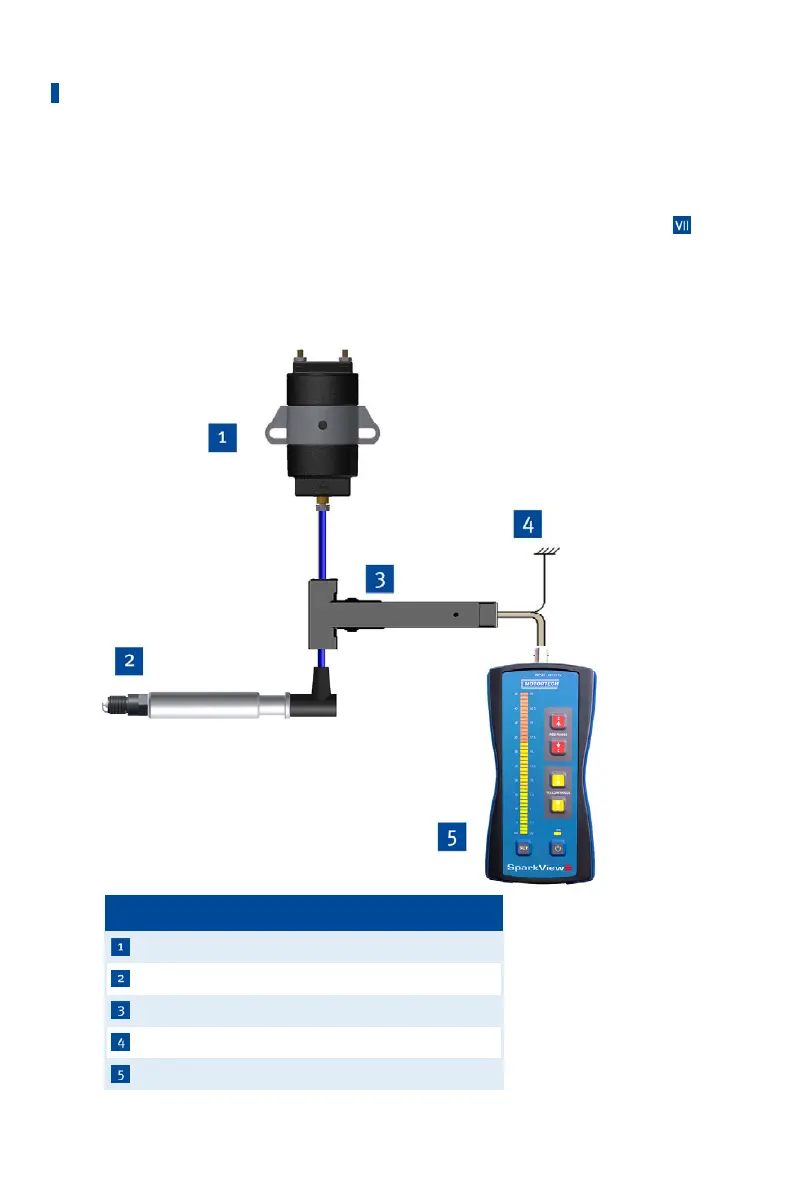

▸ The test setup looks like this:
Pos. Description
Ignition coil
Spark plug
SparkScan1 high voltage clamp
Grounding
SparkView high voltage indicator
