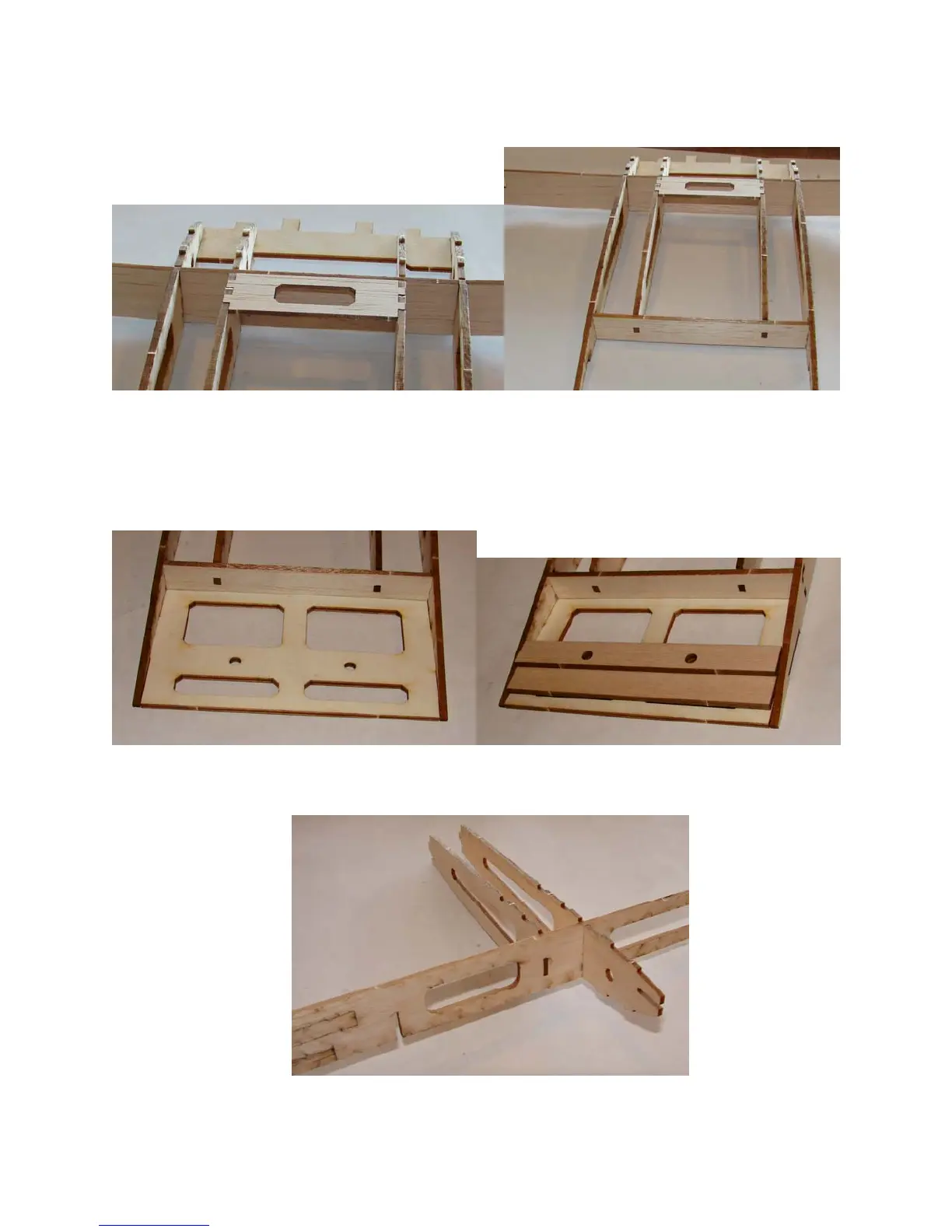

5. Press the 3/32” balsa servo wire guide into place between the rear half ribs.
6. Press the 1/8” balsa support into the rear ½ rib tabs as shown in the upper right image. You’ll
need to spread the back of the 1/8” full ribs to get the tabs on the part into the ribs.
7. Install the 1/8” Lt Ply rear center section as shown below. Make sure the center section is
square and secure the parts with thin CA. Glue the 2 1/8” balsa parts into place using thick CA
sh shown below, making sure that the bolt holes are lined up.
8. Press the 3/32” servo mounting area ribs into place. These ribs have slots in the bottom to
accept the servo mounting plate.
