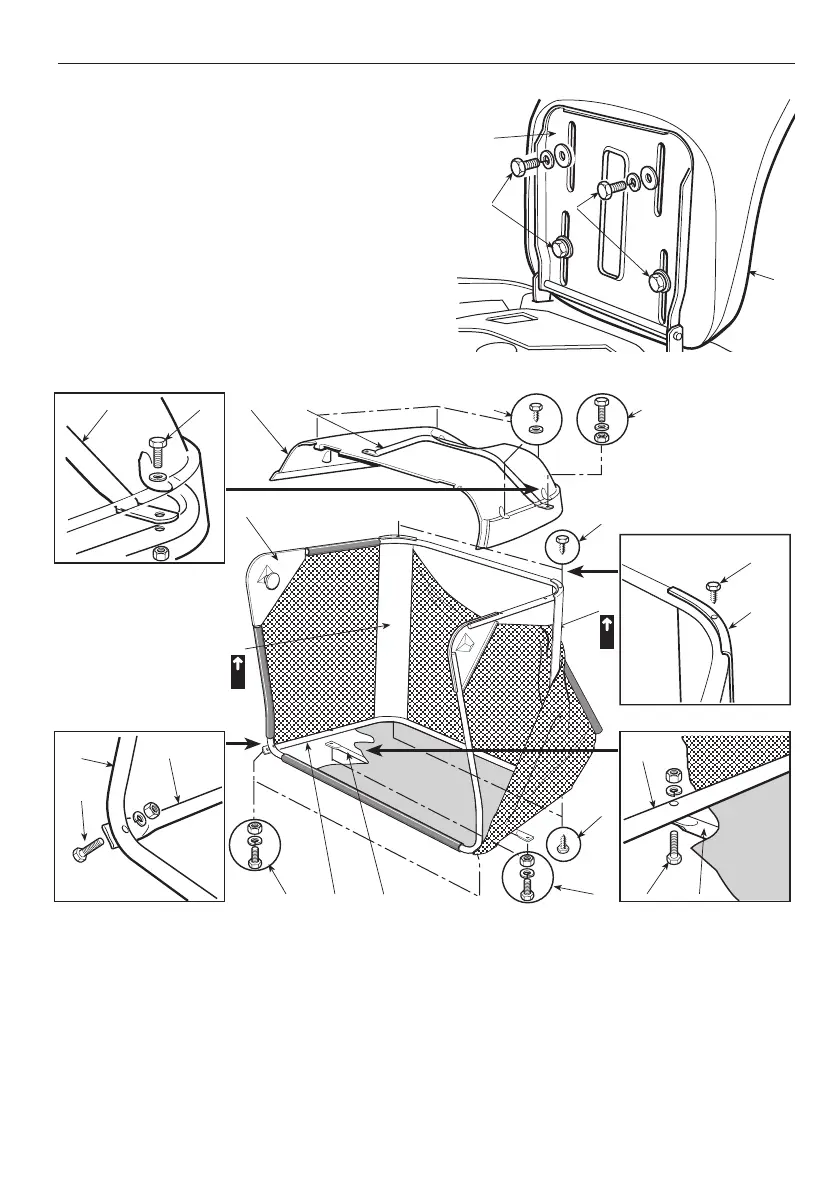

FITTING THE SEAT
Fit the seat (1) onto the plate (2) using the
screws (3).
FITTING THE GRASS-CATCHER
First of all assemble the frame, joining the upper part (1), including the opening,
to the lower part (2), using the supplied nuts and screws (3) and following the
indicated sequence.
Position the angle supports (4) and (5), respecting the right (R) and left (L)
sides, and attach them to the frame using the four self-tapping screws (6).
Insert this frame into the canvas cover, ensuring that it is correctly positioned
along the base perimeter.
EN 11UNPACKING AND ASSEMBLY
5
L
6
4 - 5
2
13 12
1 2
3
R
4
3 2
12
1
6
6
898 10 1011
13
1
2
3
3
