with the hole on the shaft and insert the pin (3) using a hammer. Make sure the end
comes right through to the opposite side.
To avoid damage to the steering wheel, use a punch or a screw-
driver of the same size as the pin when hammering it through the hole.

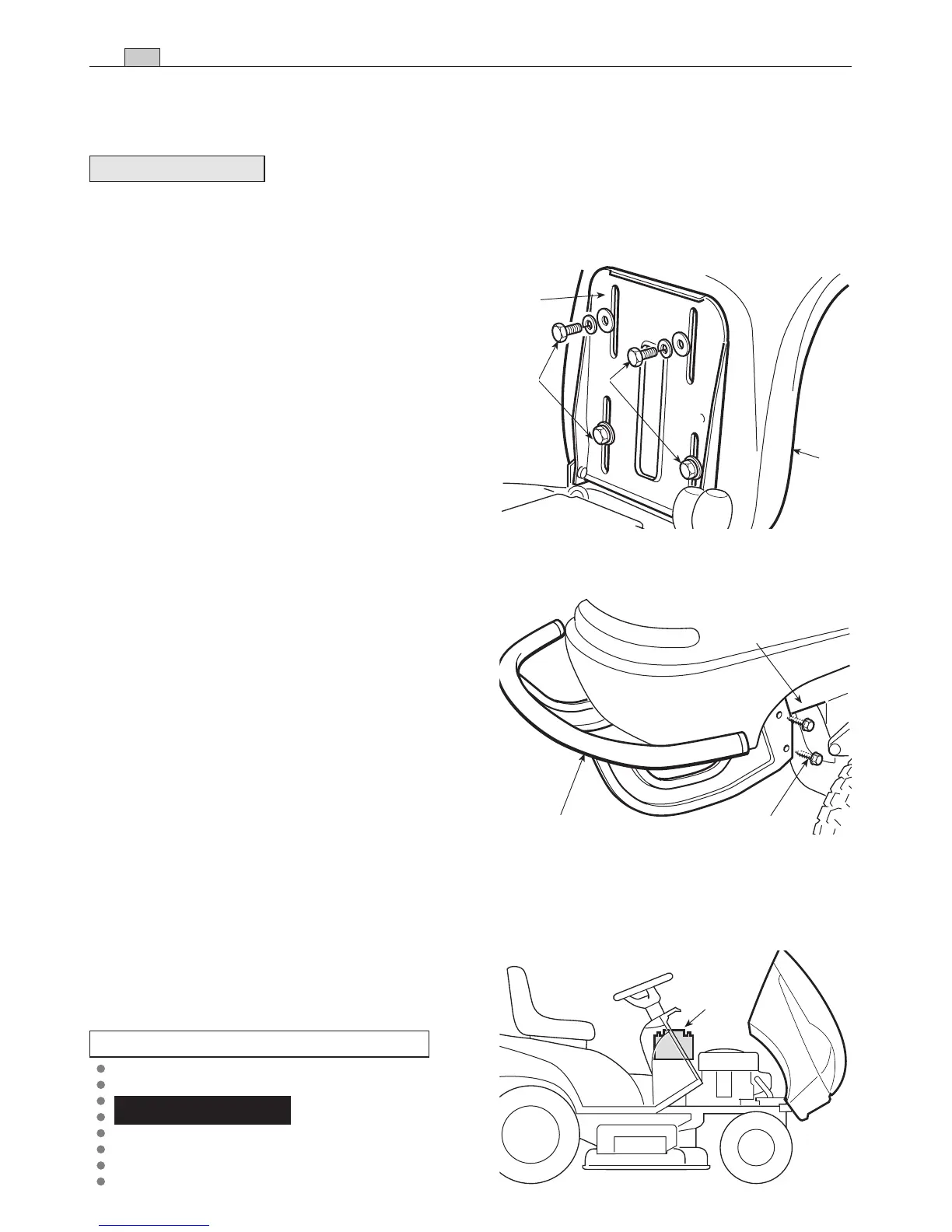

3.3 FITTING THE SEAT
Mount the seat (1) on the plate (2) using the
screws (3).
3.4 MOUNTING THE FRONT BUMPER (if
provided)
Mount the front bumper (1) on the bottom of
the frame (2) using the four screws (3).
3.5 ACTIVATING AND CONNECTING THE BATTERY
The battery (1) is housed behind the engine
and secured with an elastic tie-rod (2).
Battery acid is cor-
rosive and polluting. Wear protective
gloves and goggles when handling the
!
WARNING!
Acid battery:
NOTE
UNPACKING AND ASSEMBLY
10
EN
1
2
3 3
1
2
3
1
