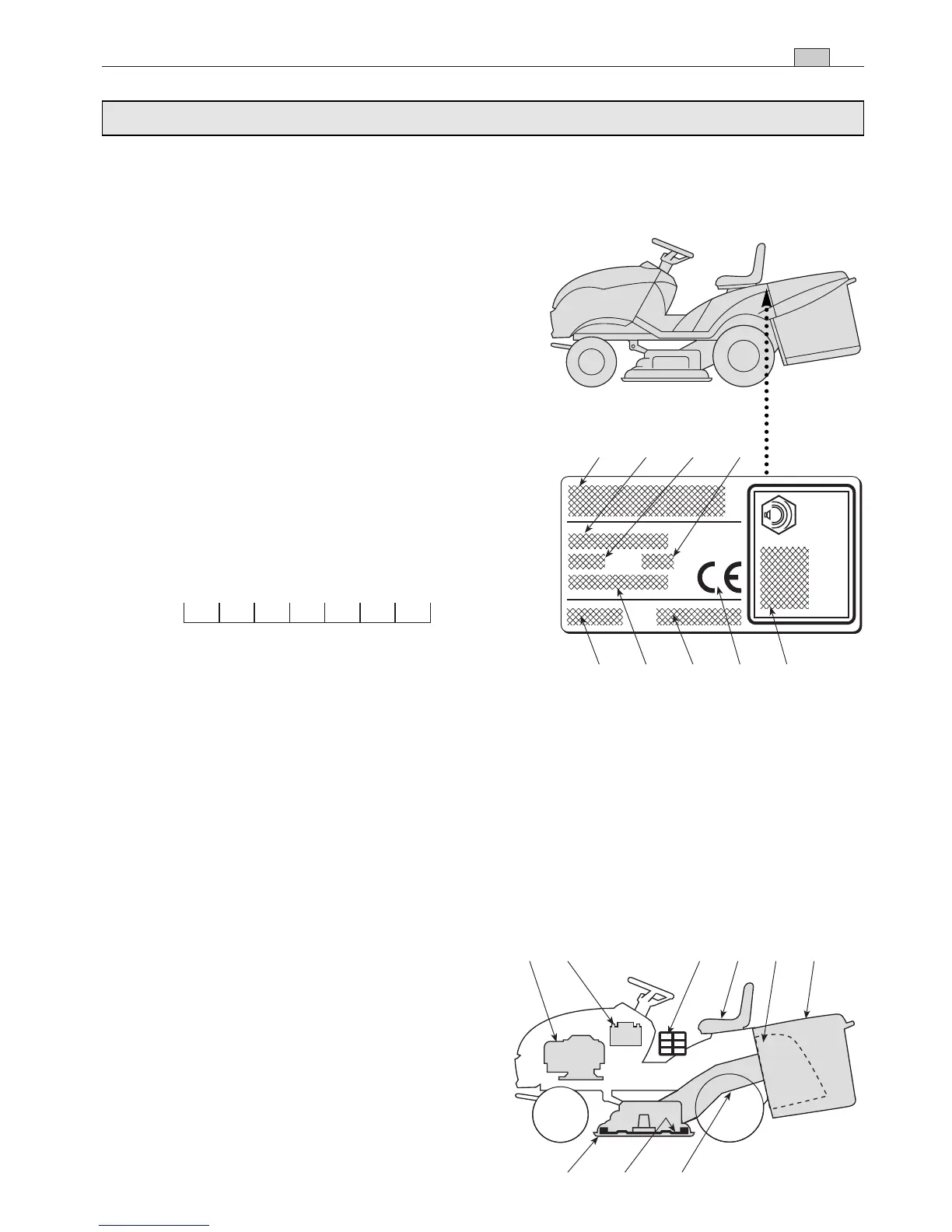

2.1 IDENTIFICATION OF THE MACHINE
The label located near the battery housing has
the essential data of each machine.
1. Acoustic power level according to
directive 2000/14/CE
2. Conformity mark according to
directive 98/37/EEC
3. Year of manufacture
4. Engine speed in r.p.m (if indicated)
5. Type of machine
6. Serial number
7. Weight in kg
8. Name and address of manufacturer
9. Type of transmission (if indicated)
2.2 IDENTIFICATION OF MAIN COMPONENTS
The main components of the machine have the following functions:
11. Cutting deck: this is the guard housing the rotating blades.
12. Blades: these are what cut the grass.
The wings at the ends help convey the
cut grass towards the collector chan-
nel.
13. Collector channel: this is the part con-
necting the cutting deck to the grass-
catcher.
14. Grass-catcher: as well as collecting
IDENTIFICATION OF THE MACHINE AND COMPONENTS
7
EN
