9

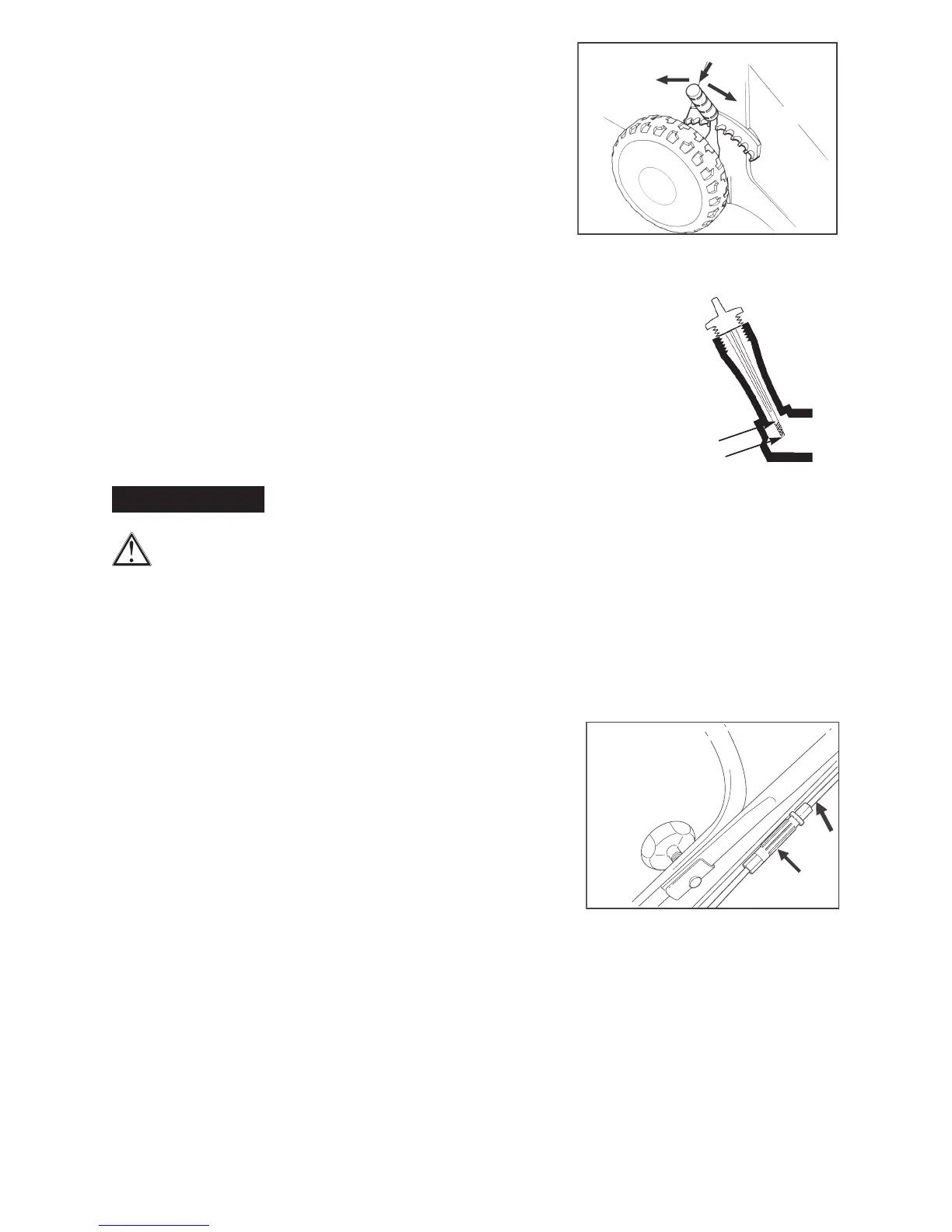

To adjust the height of cut
• Stop the engine and disconnect the spark plug
• Put the mower on a level surface
• Adjust the cutting height lever by pulling outwards and moving into
the required position (Figure 9)
• All four wheels must be at the same height.
BEFORE EACH USE
• Always ensure that the mower is in a safe working condition.
Inspect the cutter blade for damage; check safety devices and
guards; check that all nuts, bolts and screws are secure.
• Check the oil level as follows:
a) Remove the oil ller cap and wipe the dipstick clean (Figure 10)
b) Ret the dipstick into the ller neck without screwing it down.
Remove the dipstick and check the oil level; oil should be at the FULL
mark. The oil tank capacity is about 0,55 litre or 20 uid oz.
c) If the oil level is low add Mounteld oil part number MX855 or a SAE
10W-30 oil, to the upper limit on the dipstick. Do not overll; the oil level
should not be above the FULL mark
• Fill the fuel tank with unleaded petrol. Do not overll, there is no need to ll
tank to the top. The fuel tank need only contain enough fuel to complete
the days mowing. If you run out of fuel, relling must only be carried out
once the engine has cooled. Fuel stored within the machine for 28 days or
more can go stale and should be drained before further use.
MAINTENANCE
Stop the engine and disconnect the spark plug lead before working on the machine.
DO NOT TIP THE MOWER ONTO ITS SIDE AS THIS WILL FLOOD THE AIR FILTER WITH OIL.
To access the underside of the machine, lift the front wheels by lowering the handle until it rests on the ground.
CUTTER BLADE
Examine the cutter blade regularly for wear or damage.
• A slightly worn blade can be re-sharpened by your local dealer
• If the blade is damaged it should be replaced. Replacement blades must always be marked with part number
81004144/0. If in doubt refer to your dealer, or telephone 0845 600 2912. Fit the new blade so that the stamped logo
is turned up facing the blade holder (not facing the grass)
CLUTCH CABLE ADJUSTMENT (Self Propelled model only)
• Make sure that the clutch lever is fully released.
• Adjust the cable by screwing or unscrewing the cable adjuster (gure 11).
The cable should have about 12mm of play in it
• Engage the clutch lever and check that the rear wheels lock when the
mower is pulled backwards.
• Start the mower and ensure it does not drive when the lever is disengaged.
ENGINE
An engine Manufacturer’s Owner’s Manual is supplied with your mower.
Please read this, it provides detailed information on engine operation, maintenance and care. Repair work other than
routine maintenance, should be carried out by an authorised dealer.
STORAGE
A little time spent on your mower after use will ensure many years of reliable mowing.
To access the underside of the cutter deck, ensure that spark plug lead is disconnected. Then lift the front wheels by
lowering the handle until it rests on the ground. Do not tip the mower onto its side, as this will ood the air lter with
oil. Failure to maintain and care for your engine may invalidate the machine guarantee. Please see the guarantee
statement for full terms and conditions.
AFTER EACH USE
• Remove any grass pulp from the underside of the cutter deck using a non-metallic instrument such as a piece of
wood. Take care not to damage the paintwork.
• Examine the cutter blade for any damage. A damaged blade may upset the balance of your mower and cause
excessive vibration. If in doubt refer to your dealer.
adjuster
cable
