1/8"
(3mm)
CAUTION:
To avoid potential personal injury or property damage:
All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to
the next step.

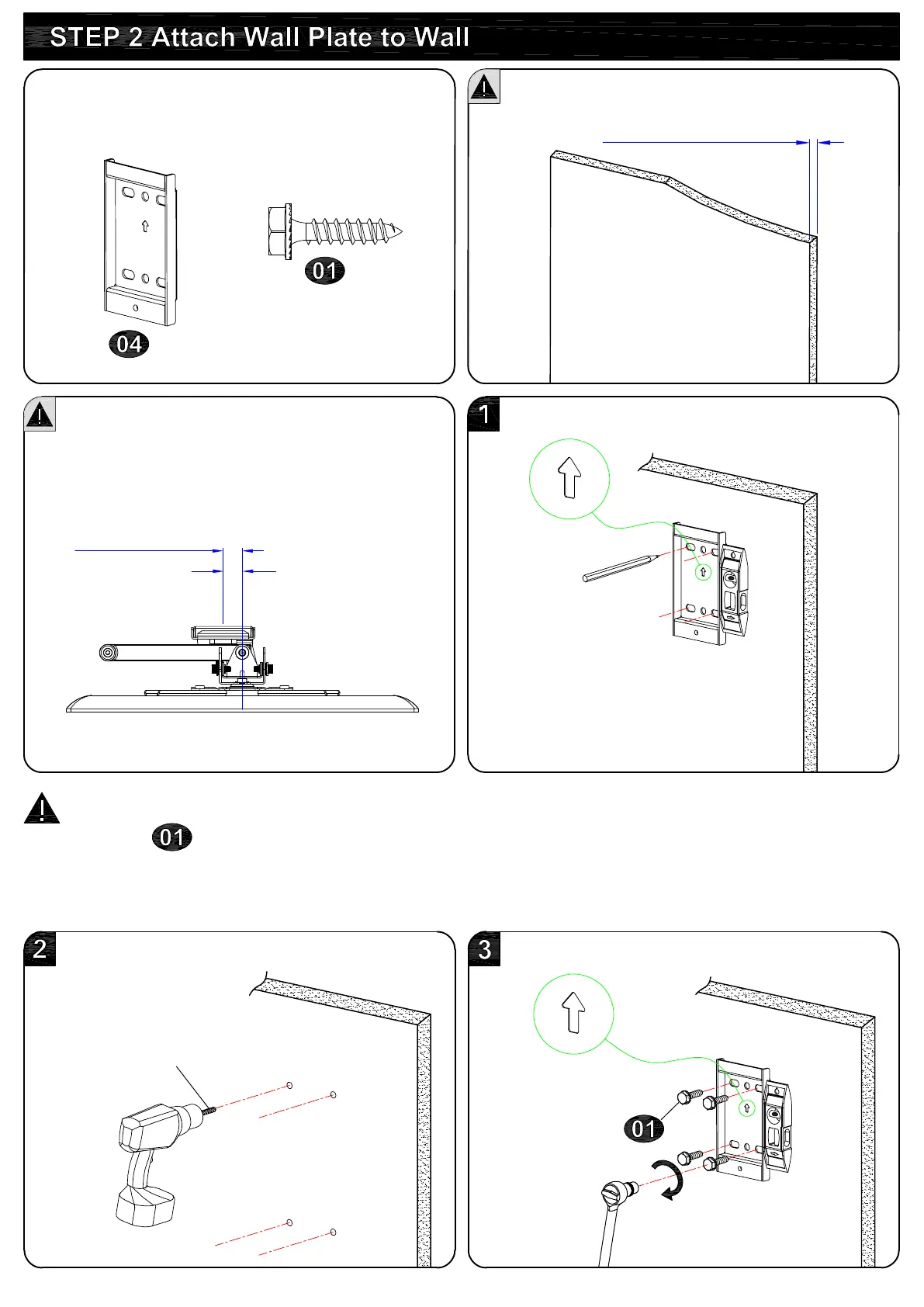

To prevent the TV falling down, the direction of the arrow should be upward as shown.
UP!
Level
Parts and Hardware
Min. 0.5"(12.7mm)
The TV plate is off center about 0.89"/22.5mm
to the wall plate. Please consider this point,
when positioning your TV on the wall.
Wooden Board
Wall Plate
UP!
5
x8
Lag Bolt M6x25mm
TV plate center
0.89"(22.5mm)
Wall plate center
x2
Level
To Next Page
