Mounting Dream MD5231 - Step 3 Wall plate installation in wood stud

drywall with
wood stud
The wall plate fits for 18" to 24" wood stud spacing, please choose corresponding holes in the wall plate for installation.

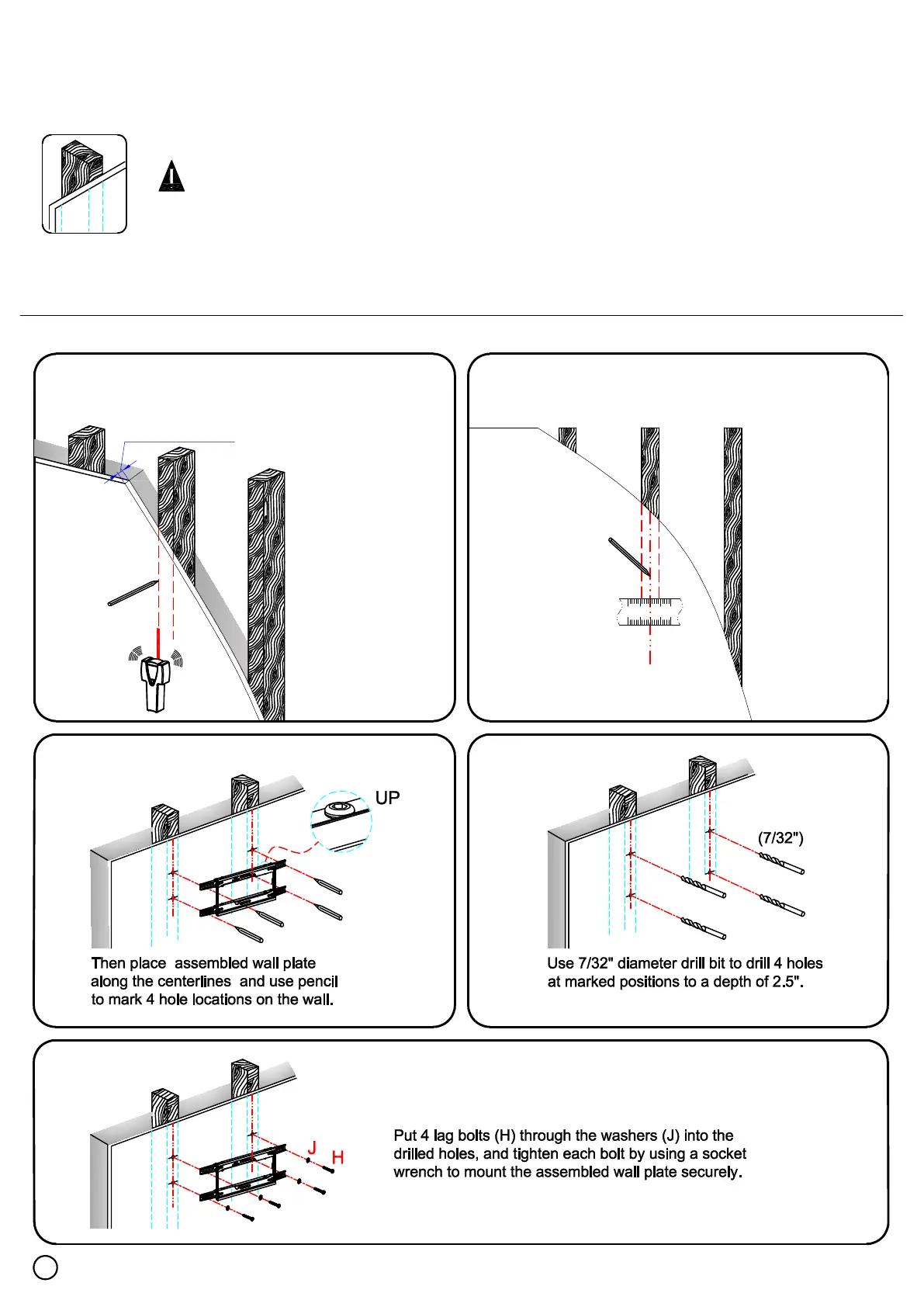

Step 3 Wall plate installation in wood stud
To avoid potential body injury or property damage:
1. Wall mount must be installed into wood stud's center, not drywall alone.
2. Drywall covering the wood stud must not exceed 16 mm (5/8 in.).
3. Minimum wood stud size: common 2 x 4 in(51 x 102 mm). Nominal 1 1/2 x 3 1/2 in(38 x 89mm)
4. The wall must be capable of supporting five times the weight of TV plus mount.
5. Make sure the BOLT HEAD on the wall plate is upward as the picture shows.
6. All lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate.
Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
Failure to follow this instruction will possibly lead to TV falling off from wall, and would possibly
cause body injuries or property loss.
⑤
④③
CAUTION
<16 mm(5/8 in.)
Locate the stud
with stud finder. Make
marks at the edges
of stud.
Mark centerlines
of stud.
②①
Make sure the BOLT HEAD on the wall plate is upward
3
