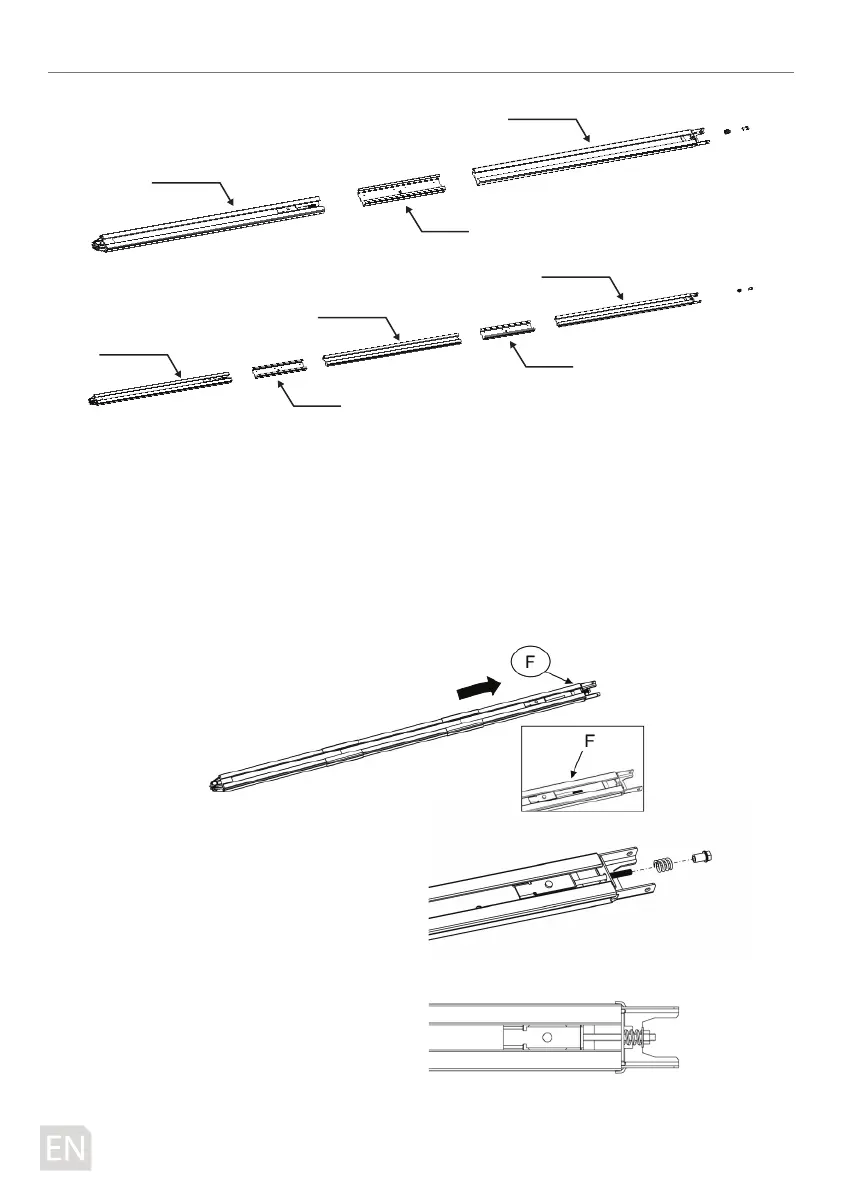

1. 2-Parts Track:
As Fig.6, slide the A rail into the sleeve, slide the B rail into the sleeve.
3-Parts Track:
As Fig.7, slide the C rail into the sleeve, slide the D rail into the sleeve; slide the E rail into the sleeve.
2. Cut the plastic thread; pull the screw rod along with inner chain to the end rail position (Fig.8)
3. As Fig.9, release the nut & spring.
4. Tight the nut to the right position as
shown in Fig.10, cut the plastic tape, cut
the plastic thread on sprocket, then whole
rail assembled nished.
Sectional Steel Track Assembly
2 Parts Steel Track
-6D-
Figure 9
Figure 10
A:1500 mm
Sleeve
B:1500 mm
C:1000 mm
D:1000 mm
E:1000 mm
Sleeve
Sleeve
Figure 6
Figure 7
Figure 8
