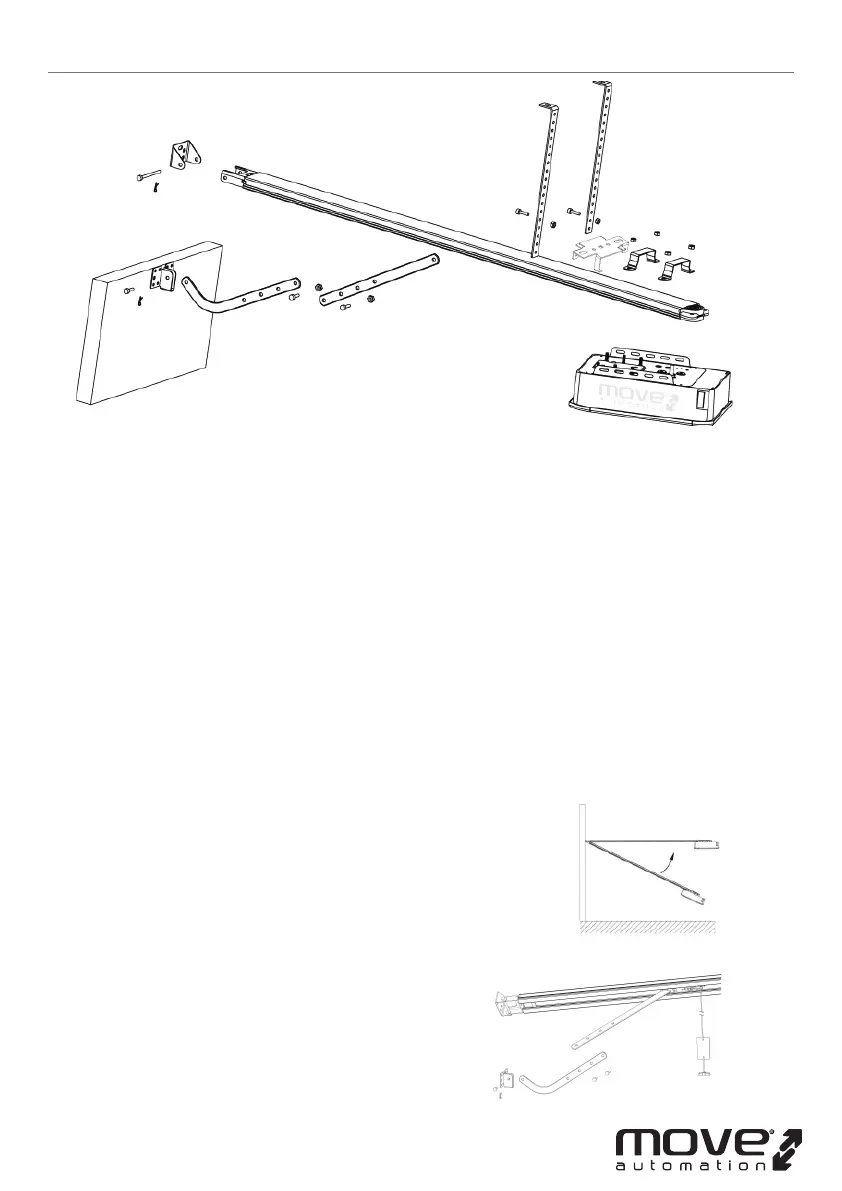

Figure 3
Installation (Steel Track)
-5D-
Figure 4
Figure 5
STEP 1 (Fig.3)
Attach the opener head to the steel track. Assembly the 2 “U” Hanging brackets with 6mm nuts
supplied.
STEP 2 (Fig.3)
Place the steel track and opener head assembly centrally on the garage oor, with the open head
furthest away from the door. Lift the front of the track up to the wall bracket. Insert the pivot pin
and secure it with the split pin supplied.
STEP 3 (Fig.3, Fig.4)
Lift and support the opener head (with a ladder) so it is positioned centrally and level. Fix the
opener and track on ceiling by Iron bracket A & B.
WARNING: Do not allow children around the door, opener or supporting ladder serious injury
and/or damage may result from failure to follow this warning.
STEP 4 (Fig.3, Fig.5)
Connect the straight arm to the bent arm with the
bolt.
Position and bolt the arms to the top edge of the
door using
the bolt supplied.
STEP 5
Lift the garage door until the shuttle locks into the
drive chain/belt.
Now, ready to program the openers
