- 01 Electronic Module - 01 Chassis in metal tube- 01 Fairing fixed to the chassis- 01
Magnetic brake set inserted in the fairing and fixed to the chassis- 01 split support column for
the electronic module- 01 horizontal support column for the saddle- 01 Bench with insert for
horizontal column + adjustment key- 01 separate column for seat insertion + connectors-
01 Backrest for the bench- 02 Loose feet with 02 levelers each, 01 simple and 01 with column
and support for the bench- 04 Connectors , 02 for handgrip sensors for heart rate and 02 for
the electronic module- 02 candle-feet- 12 screws- 01 Allen key- 01 spanner number 16- 02
pedals (WARNING !!! The pedals are not the same , 01 corresponds to the right side - letter R
(right) at the tip of the screw -, another to the left side - letter L (left) at the tip of the screw).
1
2
HORIZONTAL BICYCLE
Description of the parts contained in the packaging (horizontal bicycle)
A
A1
A
A1
Fixing in reverse order may damage the fixing thread of both the pedal and the pedestal.

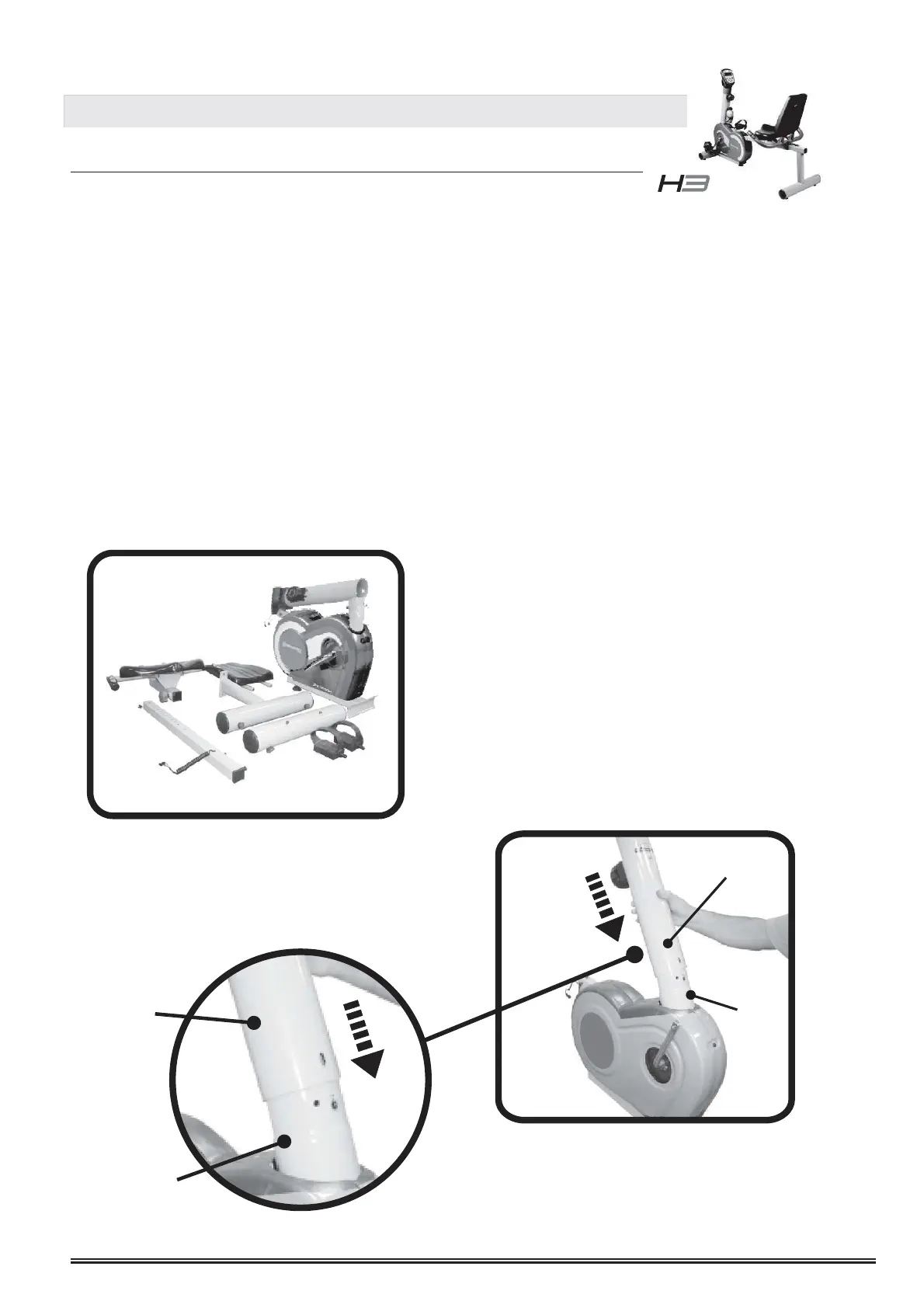

Remove the equipment from
the box and arrange the loose
parts to identify them.
Fit the support column
tube A to point A1.
