5.1.1 For all models except P 4030 P and 5690 SZT

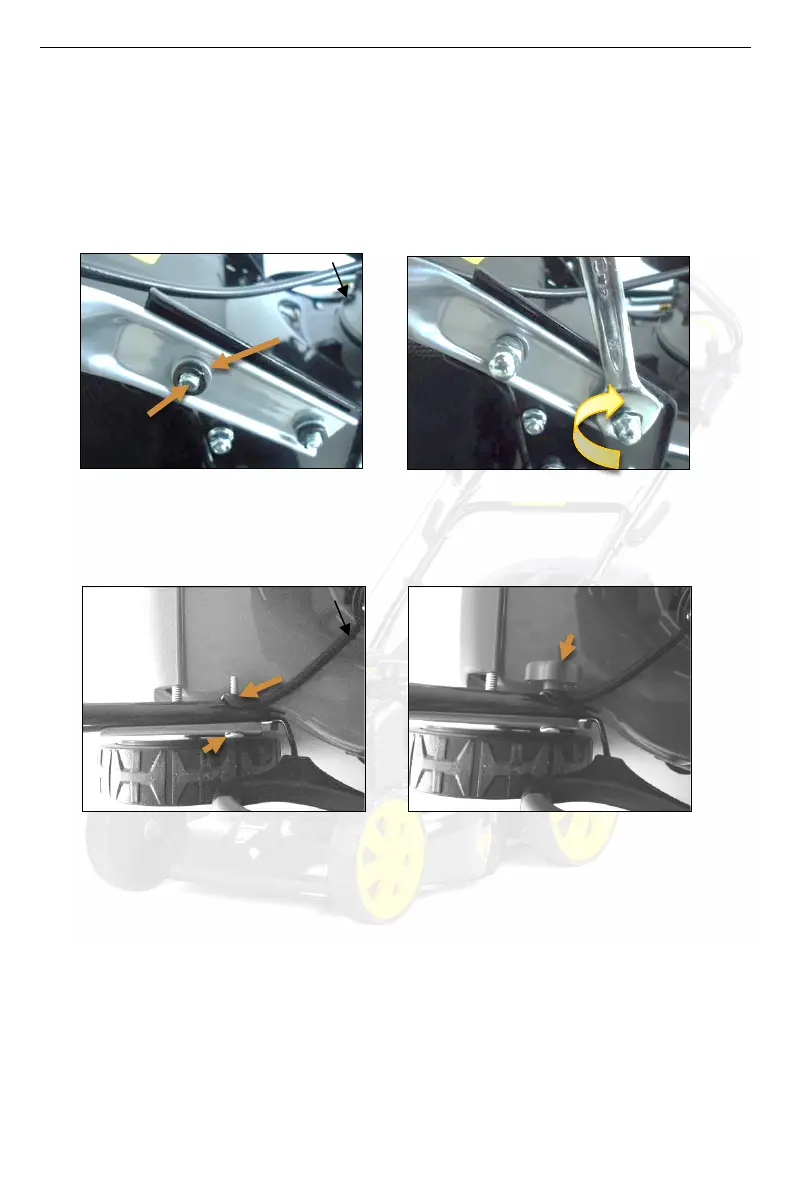

Fasten the guide bar (1) to the mower housing (9) with the consigned screws (19),
washers and bolts.
5.1.2 For model 5690 SZT
Fasten the guide bar (1) to the mower housing (9) with the consigned screws (19),
washers and bolts.
5.1.3 For model 4030 P
Turn the quick release levers (4) anticlockwise. Gently pivot the handle to its upright
position until it clicks into its position.
