Abb.8D Abb.8E
Abb.8F Abb.8G

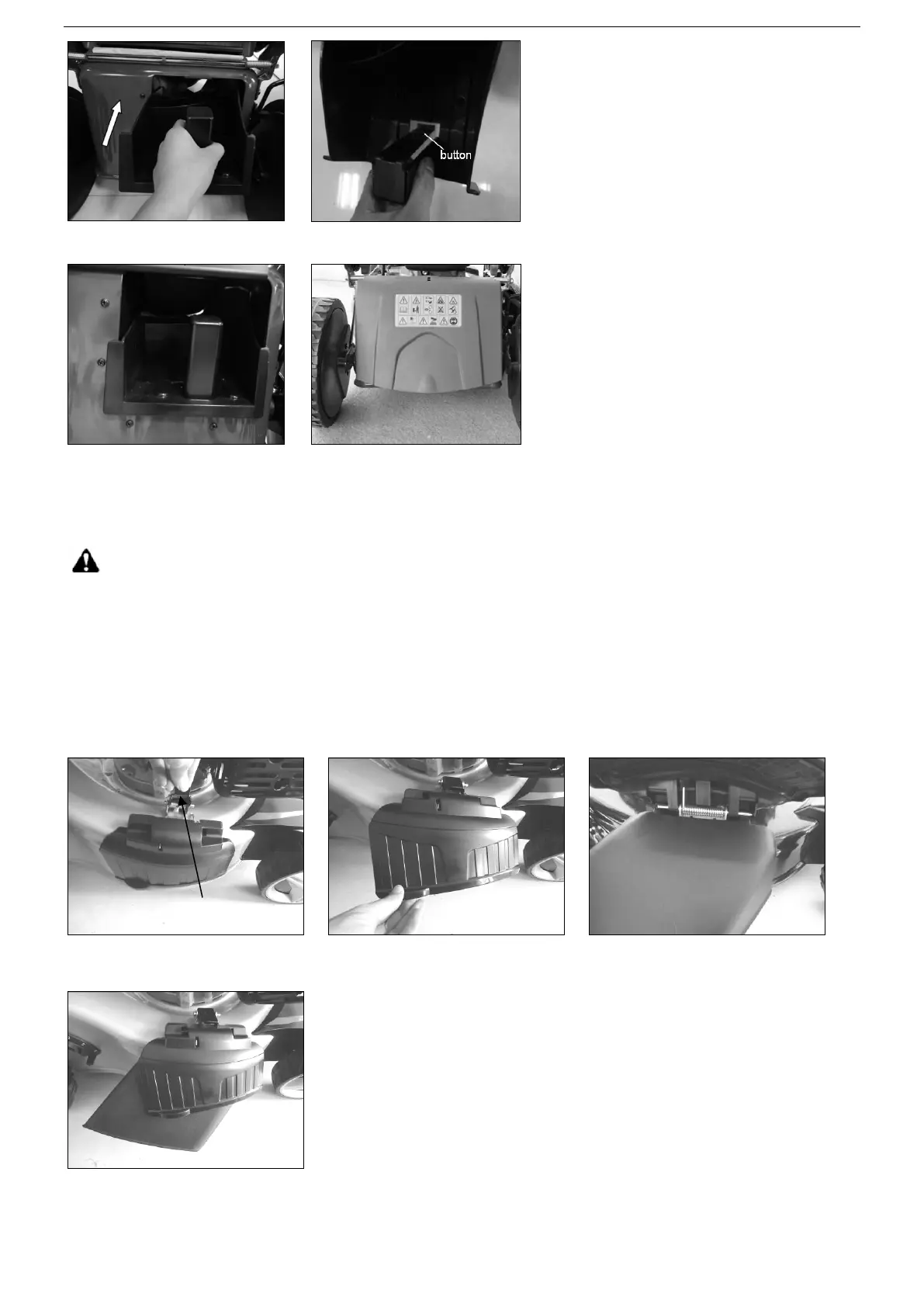

6.2 side discharge mowing
WARNING: Operate only with a stopped motor.
1. Lift the rear cover and remove the grass catcher #5 (see 6.1).
2. Install the mulching wedge #22.
3. Unlock the lid #20 (fig. 27).
4. Lift the lid #20 (fig. 28).
5. Mount the side discharge channel #19 on the support pin of the sideward flap (fig. 29).
6. Lower the flap - the flap lies on the side discharge channel (fig. 30)
Figure 7 Figure 8 Figure 9
Figure 10
6.3 rear discharge into grass catcher
locking mechanism
