- 4 -
Hardware Installation Procedure
After unpacking the unit, connect the power supply or power
adapt
er to the unit. Make sure that the adapter is connected
to an earthed socket outlet.
-
through Ethernet cable to connect the
unit
to a network hub or switch. Use a cross-over Ethernet
cable if you are connecting the gateway directly to a PC
.
Connect your device to the desired port on the
unit.
Place or mount the unit. The unit may be placed on a
horizontal surf
ace such as a desktop, mounted on a DIN-rail,

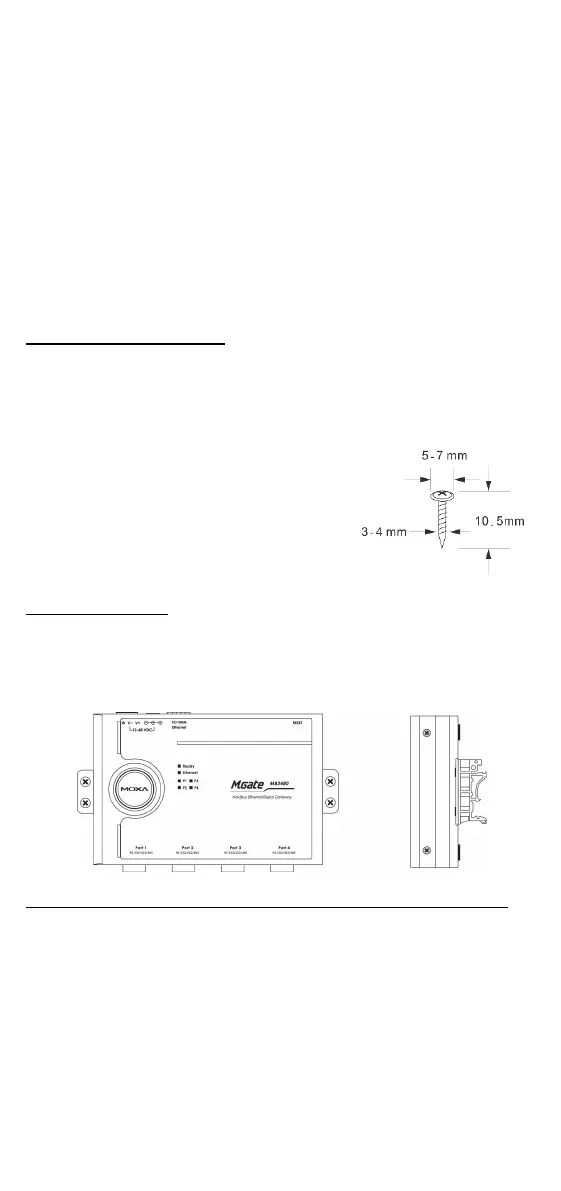

Wall or Cabinet Mounting
wo metal plates are provided for mounting
to a wall or inside a cabinet.
Attach the plates to the unit
’
s rear panel with
the provided
screws. With the plates
attached, use screws to mount the unit on a
wall.
Mounting the MGate MB3480 onto a wall
requires two screws. The head of the screws
should be 5.0 to 7.0 mm in diameter, the
shaft should be 3.0 to 4.0 mm in diameter,
and the length of the screws s
hould be at
DIN-rail Mounting
DIN rail attachments can be purchased separately to mount the MGate
MB3480 on a DIN rail. When mounting the unit on a DIN rail, make
sure that it is oriented with the metal springs on top.
Termination Resistor and Adjustable Pull High/Low Resistors
For some RS-485 environments, you may need to add termination
resistors to prevent the reflection of serial signals. When using
termination resistors, it is important to set the pull high/low resistors
correctly so that the electrical signal is not corrupted. For each serial
port, DIP switches are used for termination resistor and pull high/low
resistor settings. To enable the 120 Ω termination resistor, set switch 3
on the assigned DIP switch to ON; set it to OFF (the default setting) to
disable the termination resistor. To set the pull high/low resistors to
150 KΩ (the default setting), set switches 1 and 2 on the assigned DIP
switch to the OFF position; set them both to ON for 1 KΩ.
