Moxa Technologies NPort 6450 Series User Manual

- 5 -
Software Installation Information
The Document & Software CD contains the User’s Manual, NPort Search
Utility, and the PComm Lite Suite. Insert the CD and follow the on-screen
instructions. Please refer to the User’s Manual for additional details on
using the NPort Search Utility and PComm Lite.

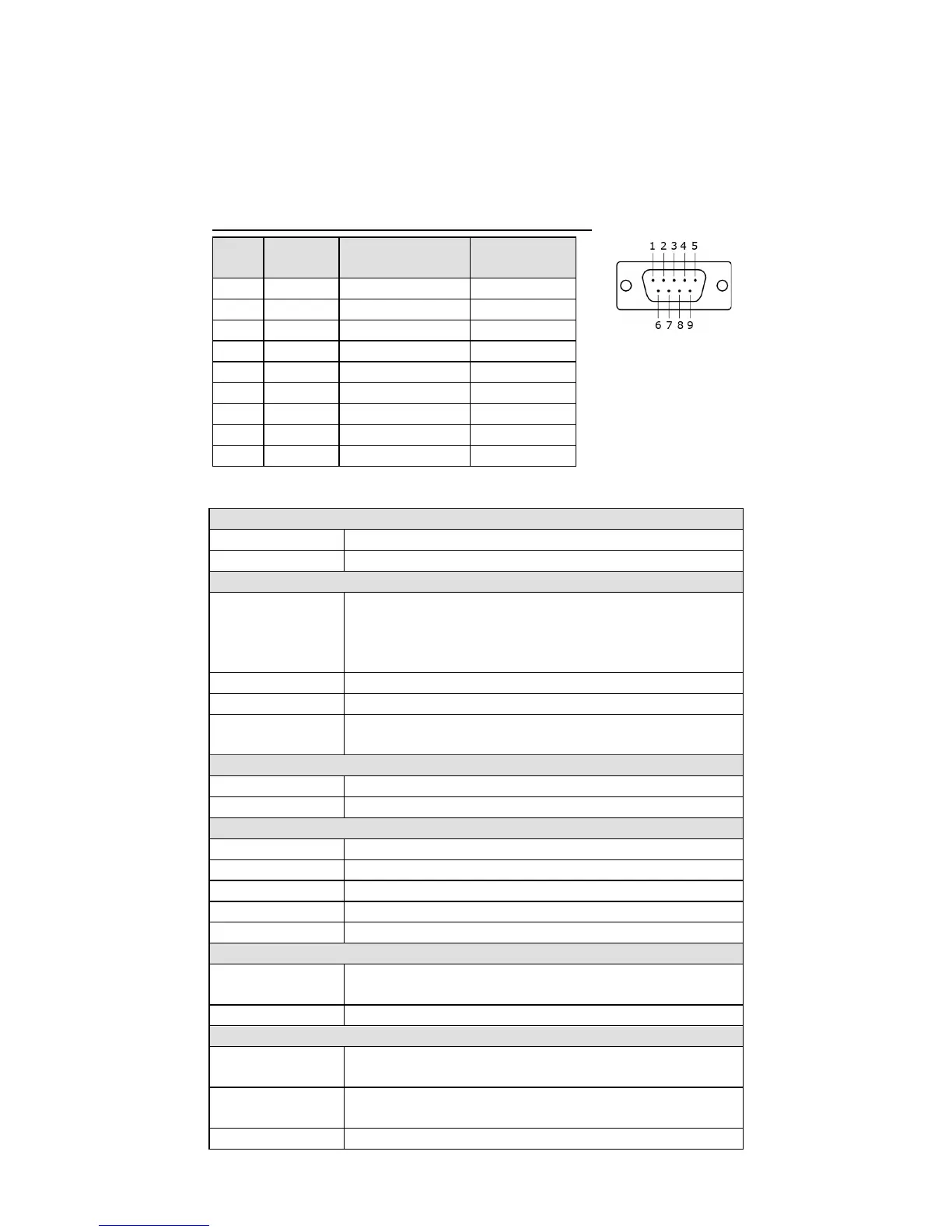

Pin Assignments and Cable Wiring
RS-232/422/485 Pin Assignments (male DB9)
Pin RS-232
RS-422/
4W RS-485
2W RS-485
1
DCD
TxD-(A)
–
2
RXD
TxD+(B)
–
3
TXD
RxD+(B)
Data+(B)
4
DTR
RxD-(A)
Data-(A)
5
GND
GND
GND
6
DSR
–
–
7
RTS
–
–
8
CTS
–
–
9
–
–
–
Specifications
LAN
Ethernet
10/100 Mbps, RJ45
Protection
Built-in 1.5 KV magnetic isolation
Optical Fiber (for fiber port modules)
Distance Multi-mode:
0 to 2 km, 1310 nm (62.5/125 μm, 500 MHz*km)
Single mode:
0 to 40 km, 1310 nm (9/125 μm, 3.5 PS/(nm*km)
Min. TX Output
Multi-mode: -20 dBm; Single mode: -5 dBm
Max. TX Output
Multi-mode: -10 dBm; Single mode: 0 dBm
Sensitivity
Multi-mode: -34 to -30 dBm,
Single mode: -36 to -32 dBm
Serial
Interfaces
RS-232/422/485 (male DB9)
No. of Ports
4
Serial Communication Parameters
Parity
None, Even, Odd, Space, Mark
Data Bits
5, 6, 7, 8
Stop Bit(s)
1, 1.5, 2
Flow Control
RTS/CTS, XON/XOFF, DTR/DSR
Speed
50 bps to 921.6 kbps
Additional Features
Console Port
RS-232 (see the user’s manual for detailed operating
instructions)
Memory
One SD socket
Software Features
Protocols
ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS,
SNMP, DDNS, HTTP, SMTP, HTTPS, SSL, SSH, PPPoE
Utilities
Windows utility for Windows 98, ME, NT, 2000, XP,
2003, Vista, 8, XP x64, 2003 x64, Vista x64, 2012 x64
Security
DES/3DES/AES
