Moxi SelectAir - Section 10 SelectAir; SelectAir Upright Mode

21
SelectAir
Upright Mode
The Upright Mode increases system pressure to compensate for the upright
patient.
Note: When the patient is sitting up in bed, additional system pressure
is required to keep the patient properly supported.
Before raising the patient to a sitting position, activate the Upright Mode
bypressingthe"UprightOn/Off"buttononce(EnsuretheUprightlight
illuminates),(fig.14).
To deactivate the Upright Mode, first lower the patient to a lying position.
1.
2.
Section 10 SelectAir

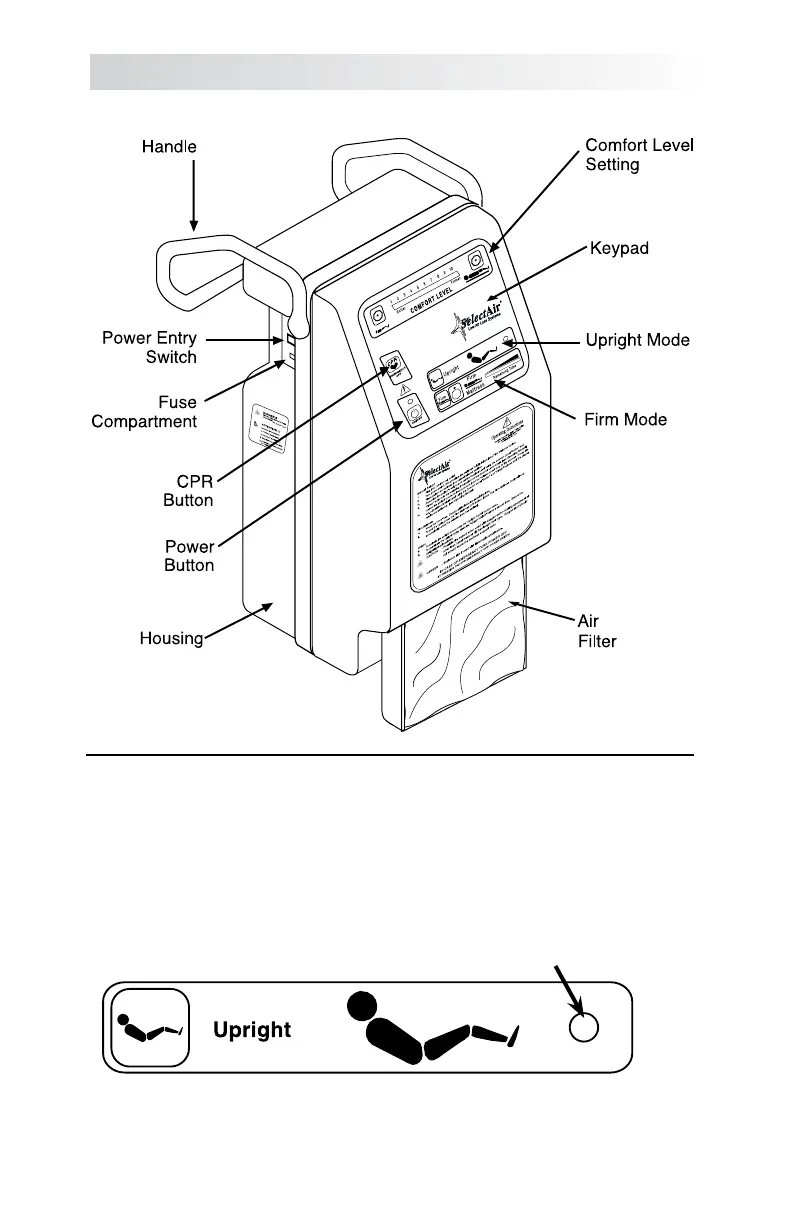

Figure 13
Light
Figure 14
