Moxi SelectAir - Section 13 HybridSelect; HybridSelect Upright Mode

32
HybridSelect
Upright Mode
The Upright Mode increases system pressure to compensate for the upright
patient.
Note: When the patient is sitting up in bed, additional system pressure
is required to keep the patient properly supported.
Before raising the patient to a sitting position, activate the Upright Mode
bypressingthe"UprightOn/Off"buttononce(EnsuretheUprightlight
illuminates,(fig.35).
1.
Section 13 HybridSelect

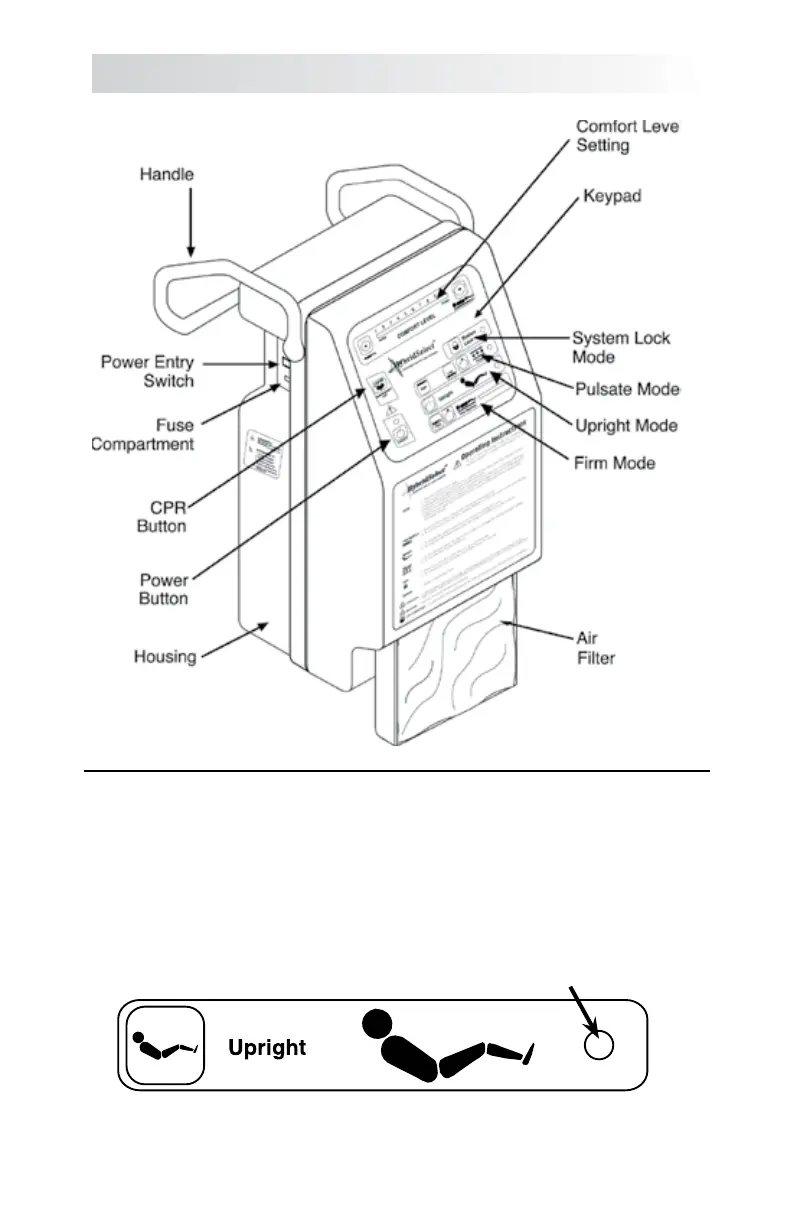

Figure 34
Light
Figure 35
