MrCool DIY E Star Series Troubleshooting Guide

Troubleshooting

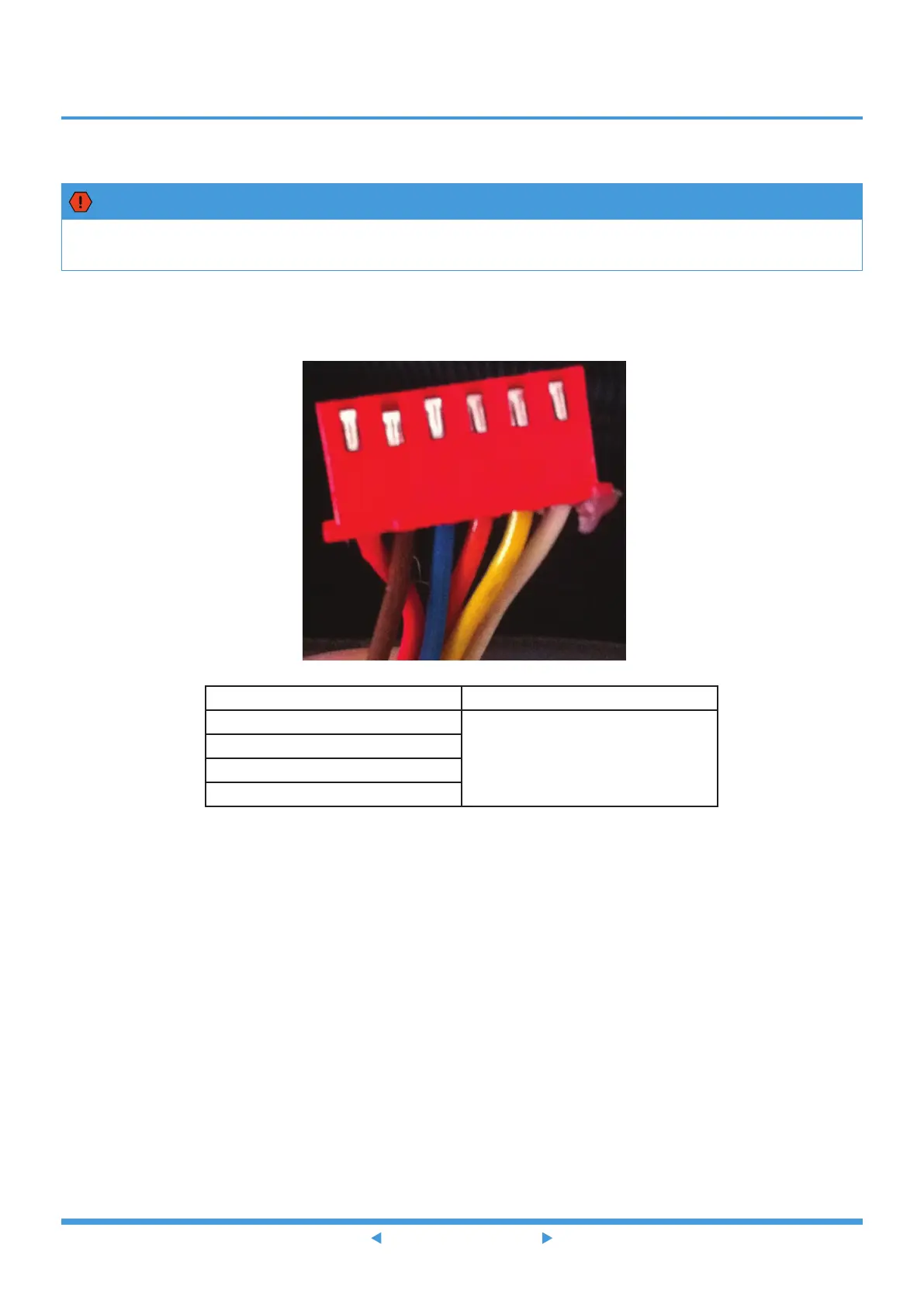

8.5 EXV Check
WARNING
Electricity remains in capacitors even when the power supply is off.
Ensure the capacitors are fully discharged before troubleshooting.
1. Disconnect the connector from outdoor PCB.
2. Measure the resistance value of each winding using a multi-meter.
3. Check the resistance value of each winding in the following table.
Color of lead winding Normal Value
Red- Blue
About 50Ω
Red - Yellow
Brown-Orange
Brown-White
6 5 4 3 2 1
Red Brown Blue Orange Yellow White
