Appendix 9

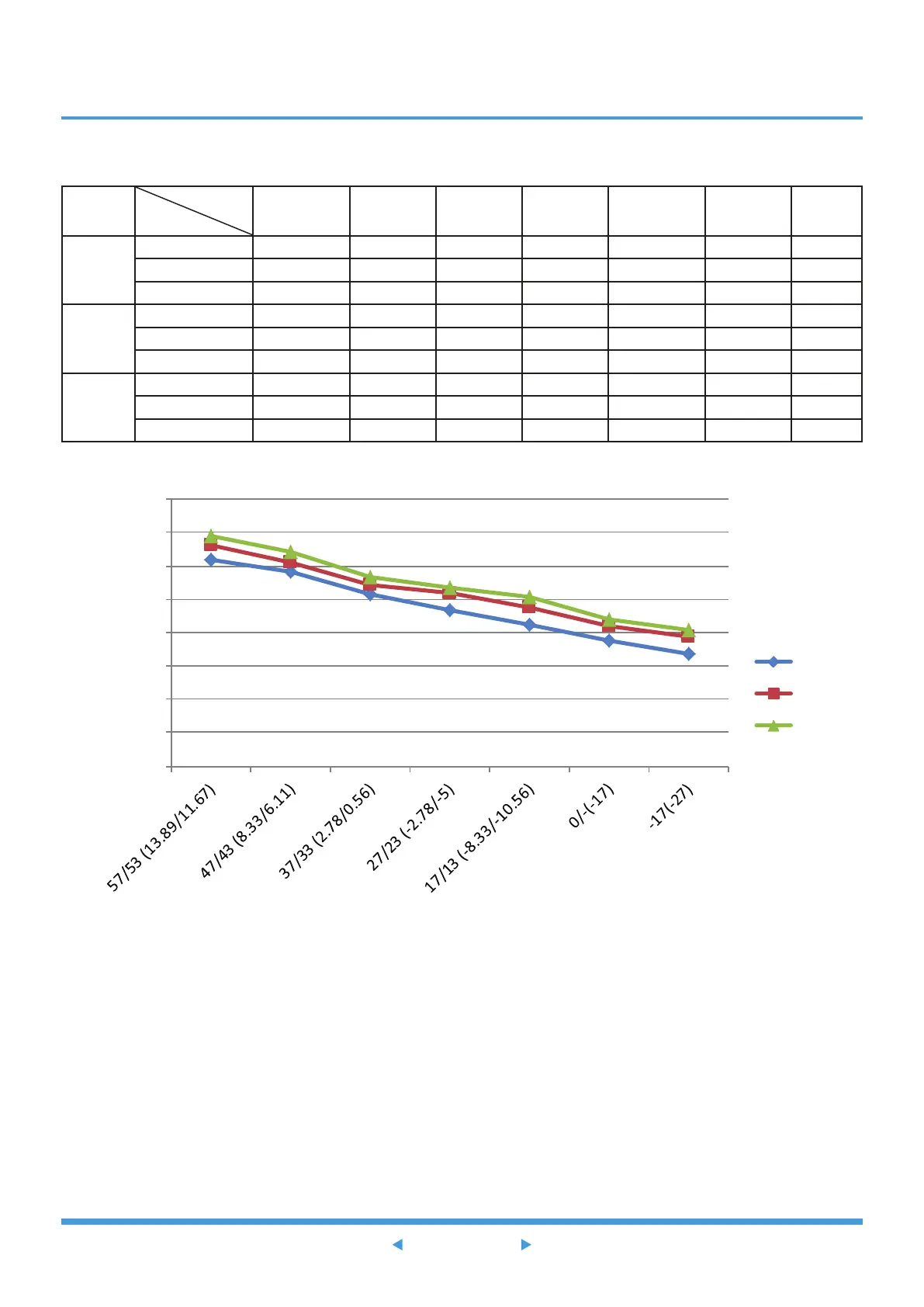

Heating chart (R32):
°F(°C)
ODU(DB/WB)
IDU(DB)
57/53
(13.89/11.67)
47/43
(8.33/6.11)
37/33
(2.78/0.56)
27/23
(-2.78/-5)
17/13 (-8.33/-
10.56)
0/-2
(-17/-19)
-17/-18
(-27/-28)
BAR
55(12.78) 30.9 29.1 25.8 23.3 21.2 18.9 16.8
65(18.33) 33.2 30.6 27.1 25.9 23.8 20.9 19.4
75(23.89) 34.5 32.1 28.4 26.8 25.4 21.9 20.4
PSI
55(12.78) 448 421 374 337 308 273 244
65(18.33) 480 444 394 375 346 303 282
75(23.89) 499 466 411 389 369 318 296
MPa
55(12.78) 3.09 2.91 2.58 2.33 2.12 1.89 1.68
65(18.33) 3.32 3.06 2.71 2.59 2.38 2.09 1.94
75(23.89) 3.45 3.21 2.84 2.68 2.54 2.19 2.04
0
0.5
1
1.5
2
2.5
3
3.5
4
55
65
75
