 Outdoor Unit Disassembly 16 

3. B30

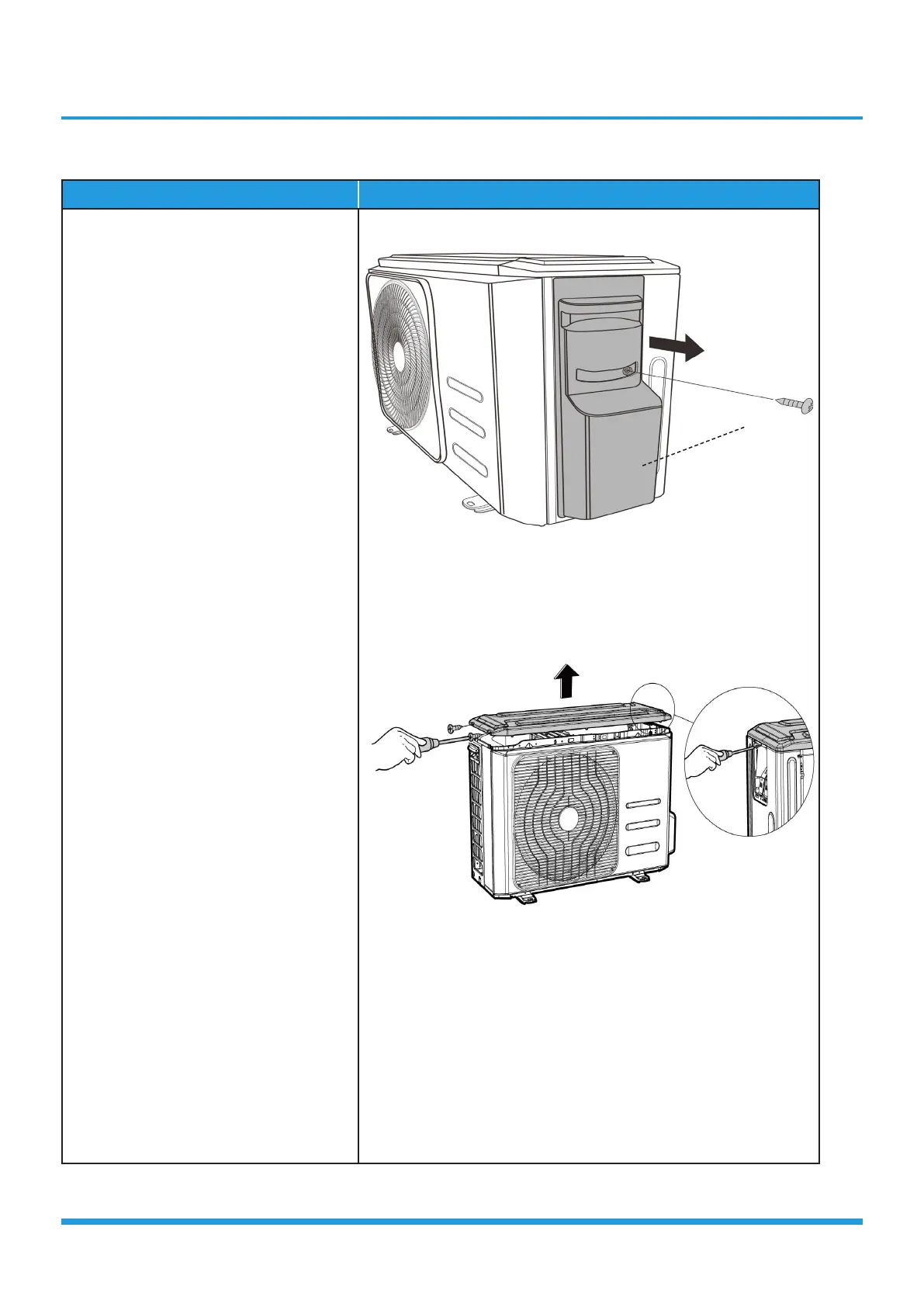

Procedure Illustration

1) Turn off the air conditioner and the

power breaker.

2) Remove the screw of the shield and

then remove it.(1 screw) (see CJ_

Multi_B30-001).

3) Remove the screws of the top cover

and then remove the top cover (3

screws). One of the screws is located

underneath the big handle (see CJ_

B30_002).

CJ_Multi_B30-001

CJ_Multi_B30-002

Note: This section is for reference only. Actual unit appearance may vary.

Shield
