 Outdoor Unit Disassembly 20 
4. E30
Procedure Illustration
1) Turn off the air conditioner and the
power breaker.
2) Remove the screws of the big handle
and then remove it.(3 screws) (see
CJ_Multi_E30-001).
3) Remove the screws of the water
collecting cover and then remove it.(3
screws) (see CJ_Multi_E30-001).
4) Unfix the four screws of the top cover
and then remove it. (see CJ_Multi_
E30-002).

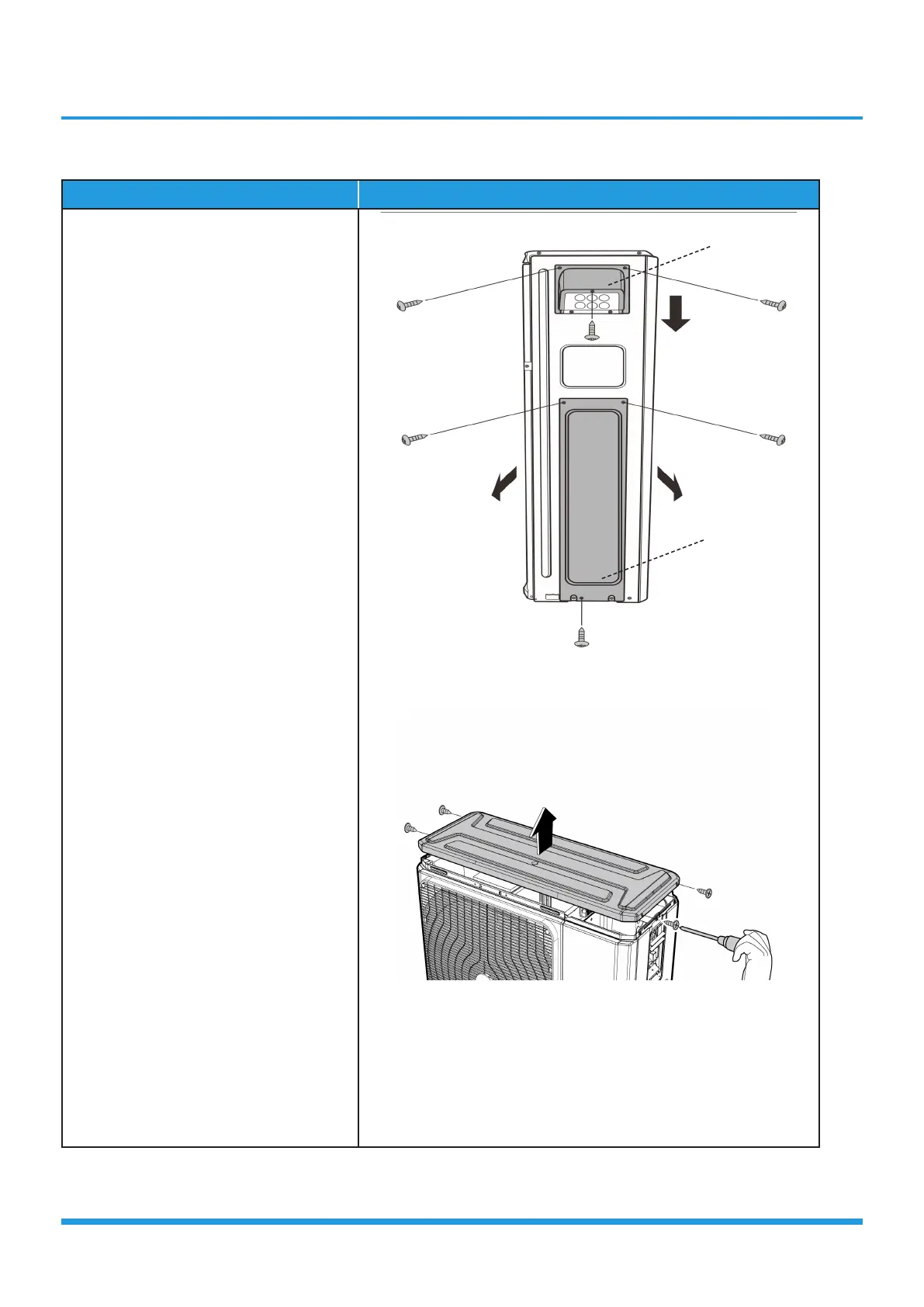

CJ_Multi_E30-001
CJ_Multi_E30-002
Note: This section is for reference only. Actual unit appearance may vary.
Big Handle
water collectng cover
