Outdoor Unit Disassembly 21
Procedure Illustration

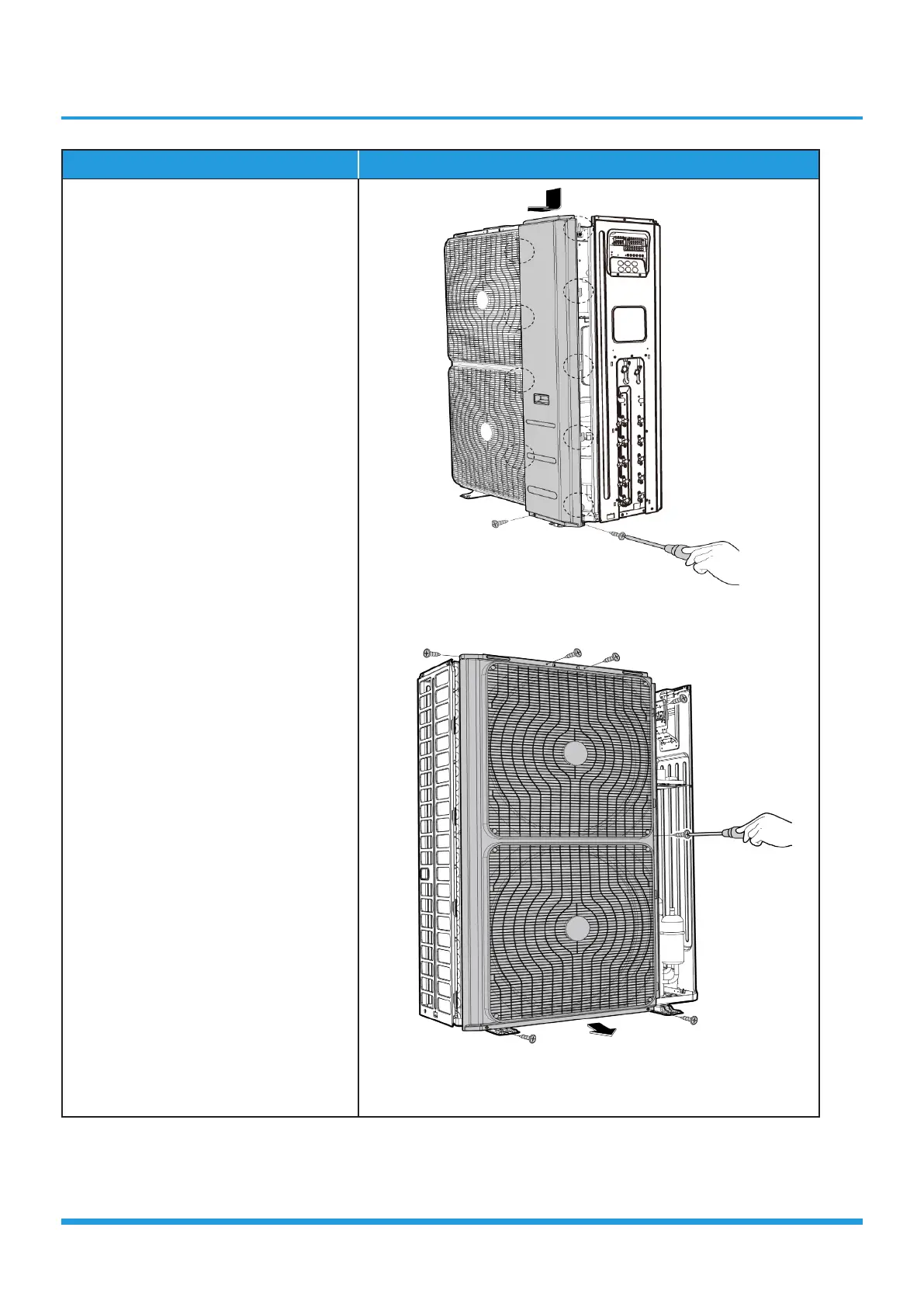

5)
Remove the two screws of the right
front panel and then push it down to
unhook the right fornt pannel from
the nine hooks.(see CJ_Multi_E30-
003).
6) Remove the seven screws of the front
panel and then remove the front panel
(see CJ_Multi_E30-004).
CJ_Multi_E30-003
CJ_Multi_E30-004
Note: This section is for reference only. Actual unit appearance may vary.
