MrCool DIY-MULTI3-27HP230C User Manual

 Outdoor Unit Disassembly 32 

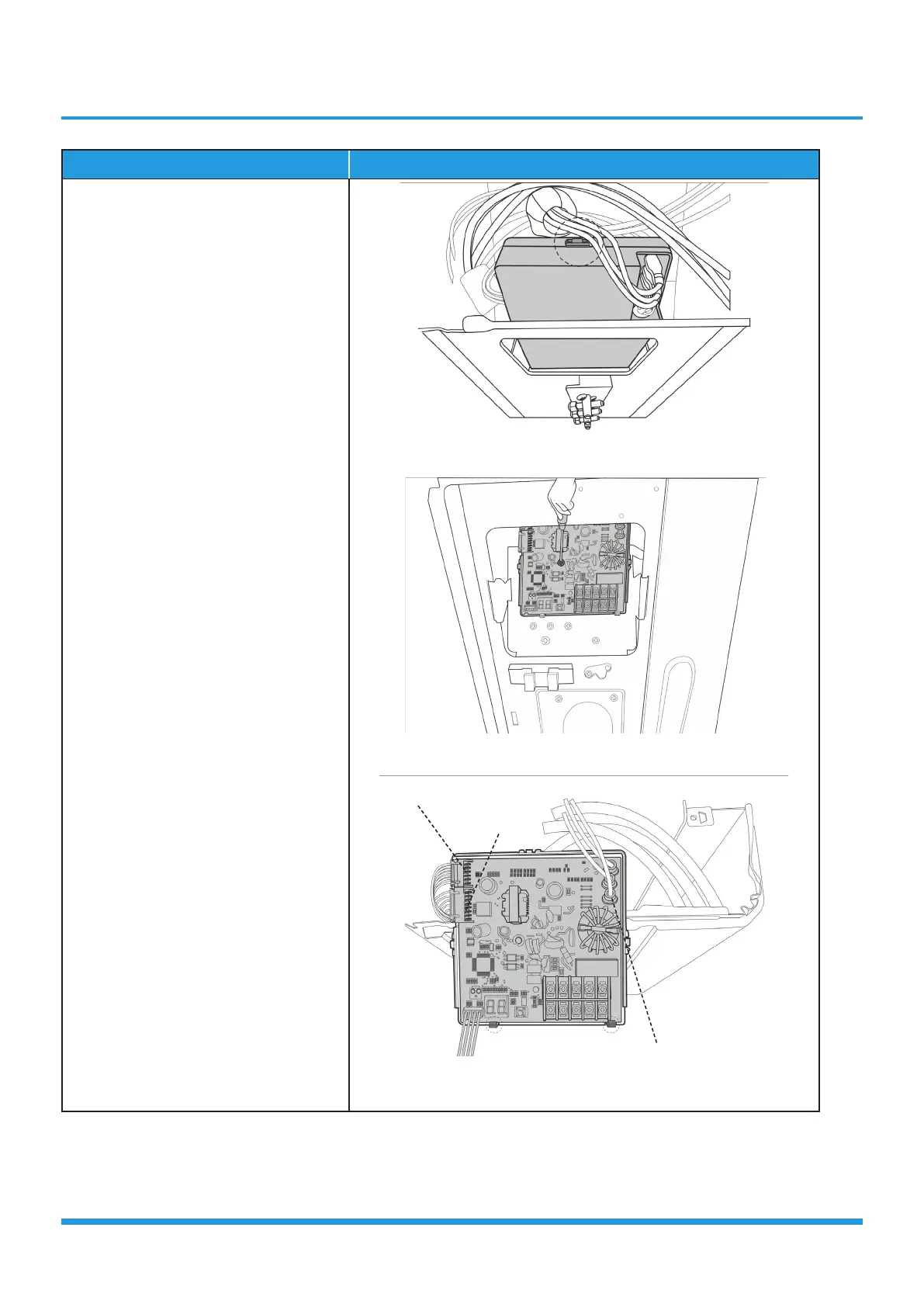

Procedure Illustration
9) Unfix the hooks and then remove the
electronic installing box . (2 screws)
(see CJ_Multi_PCB_003-4）.
10) Remove one screw of module board.
(see CJ_Multi_PCB_003-5).
11) Disconnect the connectors of the
module board. (see CJ_Multi_
PCB_003-6).
CJ_Multi-PCB_003-4
CJ_Multi-PCB_003-5
CJ_Multi-PCB_003-6
Note: This section is for reference only. Actual unit appearance may vary.
connected to main board
Electronic expansion
valve
T2B
